B4A Library [B4X] [XUI] [B4XLib] SD TextView

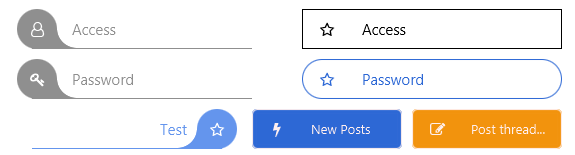

I needed to develop a modern editText (or TextField), but different from the B4XFloatTextField, different in terms of graphics and style. So I created the SD_TextView
(see also xComboBox)

NOTE: You can use this library for personal and commercial use. Include it in your projects.. Attention, even if it is a B4XLib library, it is not allowed to decompress it, modify it, change its name or redistribute it without the permission of the author

SD_TextView

Author: Star-Dust
Version: 0.25

• SD_IconTextView
  • Events:
    • EnterPressed
    • FocusChanged (HasFocus As Boolean)
    • HintClick
    • TextChanged (OldText As String, Newtext As String)
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • GetBase As B4XView
    • Initialize (Callback As Object, EventName As String)
  • Properties:
    • Hint As String
    • HintFont As B4XFont
    • NativeObject As TextField [read only]
    • Text As String
    • TextFont As B4XFont
• SD_TextView
  • Events:
    • EnterPressed
    • FocusChanged (HasFocus As Boolean)
    • TextChanged (OldText As String, Newtext As String)
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • GetBase As B4XView
    • Initialize (Callback As Object, EventName As String)
    • SetHintColor (HintTextColor As Int, HintBackGroundColor As Int)
    • SetTextViewColor (TextColor As Int, BackGroundColor As Int, Corner_Color As Int)
  • Properties:
    • AnimateHint As Boolean
    • Hint As String
    • HintFont As B4XFont
    • NativeObject As TextField [read only]
    • Text As String
    • TextFont As B4XFont
• SD_TwoIconTextView
  • Events:
    • Click
    • EnterPressed
    • FocusChanged (HasFocus As Boolean)
    • HintClick
    • TextChanged (OldText As String, Newtext As String)
    • Unfocus
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • GetBase As B4XView
    • Initialize (Callback As Object, EventName As String)
  • Properties:
    • Hint As String
    • HintFont As B4XFont
    • NativeObject As TextField [read only]
    • Text As String
    • TextConfirmButton As String
      Char fontAwesone
    • TextFont As B4XFont
• SD_UnderLineTextView
  • Events:
    • EnterPressed
    • FocusChanged (HasFocus As Boolean)
    • TextChanged (OldText As String, Newtext As String)
  • Fields:
    • ExpansionTime As Int
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • GetBase As B4XView
    • Initialize (Callback As Object, EventName As String)
    • UnderLine (Show As Boolean)
  • Properties:
    • Hint As String
    • HintFont As B4XFont
    • NativeObject As TextField [read only]
    • Text As String
    • TextFont As B4XFont



[DonManfred]

Where is the download?



[Star-Dust]

Where is the download?

I'm inserting, slowly, I'm getting old and I'm slow ? ? ? ?



[Star-Dust]

Update 0.2

Added IconTextField. A new view allows you to insert an icon (FontAversone or Material) before the editable text



[omo]

Fontawesome icon is not responding to click event and does multiple icons on a single IconTextField allowed with '&' - concatenation sign?



[Star-Dust]

Fontawesome icon is not responding to click event

There is no event connected to the icon, because it is not a button. It is an icon / label that describes the type of information to be edited.

In the example we indicate username and in the following view the password

does multiple icons on a single IconTextField allowed with '&' - concatenation sign?

Yes, it is possible to do it. But keep in mind that the space is only 40dip. Therefore it is not possible to insert more than 2 characters if the font size is not reduced



[Xfood]

Ritengo che sia ottima, e molto bella questa lib, ma non capisco la differenza con quella di erel...
SD_TextView vs B4XFloatTextField



[Star-Dust]

Ritengo che sia ottima, e molto bella questa lib, ma non capisco la differenza con quella di erel...
SD_TextView vs B4XFloatTextField

Please write in English in the intentional forum

Only the graphics.The editable view is surrounded by a rounded border line. The label is placed on the top line. Also can the view can be colored like the frame so as to create a particular effect.
Additionally, the label animation is optional.

Otherwise all editable views are the same



[Hamied Abou Hulaikah]

Is right to left RTL direction supported?



[Star-Dust]

Is right to left RTL direction supported?

What do you mean exactly



[Hamied Abou Hulaikah]

What do you mean exactly

I mean hz direction:



[Star-Dust]

I mean hz direction:

There is no provision on the right. I really haven't even thought about it ?



[Hamied Abou Hulaikah]

There is no provision on the right. I really haven't even thought about it ?

tested .. not supported .. I think when you get time you'll support it



[Star-Dust]

tested .. not supported .. I think when you get time you'll support it

Maybe, but what could it do?



[Hamied Abou Hulaikah]

Maybe, but what could it do?

It is important for Arabic/Hebrow/Persian Languages because they are Right To Left (RTL) languages, their sentences written from right to left (english opposite)



[Star-Dust]

It is important for Arabic/Hebrow/Persian Languages because they are Right To Left (RTL) languages, their sentences written from right to left (english opposite)

Ok. When I can, I will try to implement it



[Star-Dust]

It is important for Arabic/Hebrow/Persian Languages because they are Right To Left (RTL) languages, their sentences written from right to left (english opposite)

Update 0.03
RTL from Design is now possible



[Hamied Abou Hulaikah]

Thank you very much



[Star-Dust]

Thank you very much

before thanking, try if that's what you wanted



[Hamied Abou Hulaikah]

tested, no RTL found! How can I set?
