B4J Tutorial [BANanoVuetifyAD3] Designing WebApps/Websites/SPA/PWA with BANano+Vuetify

Hi there

This is a response to a thread post and I think it deserves its own place just to clarify something and give a background.

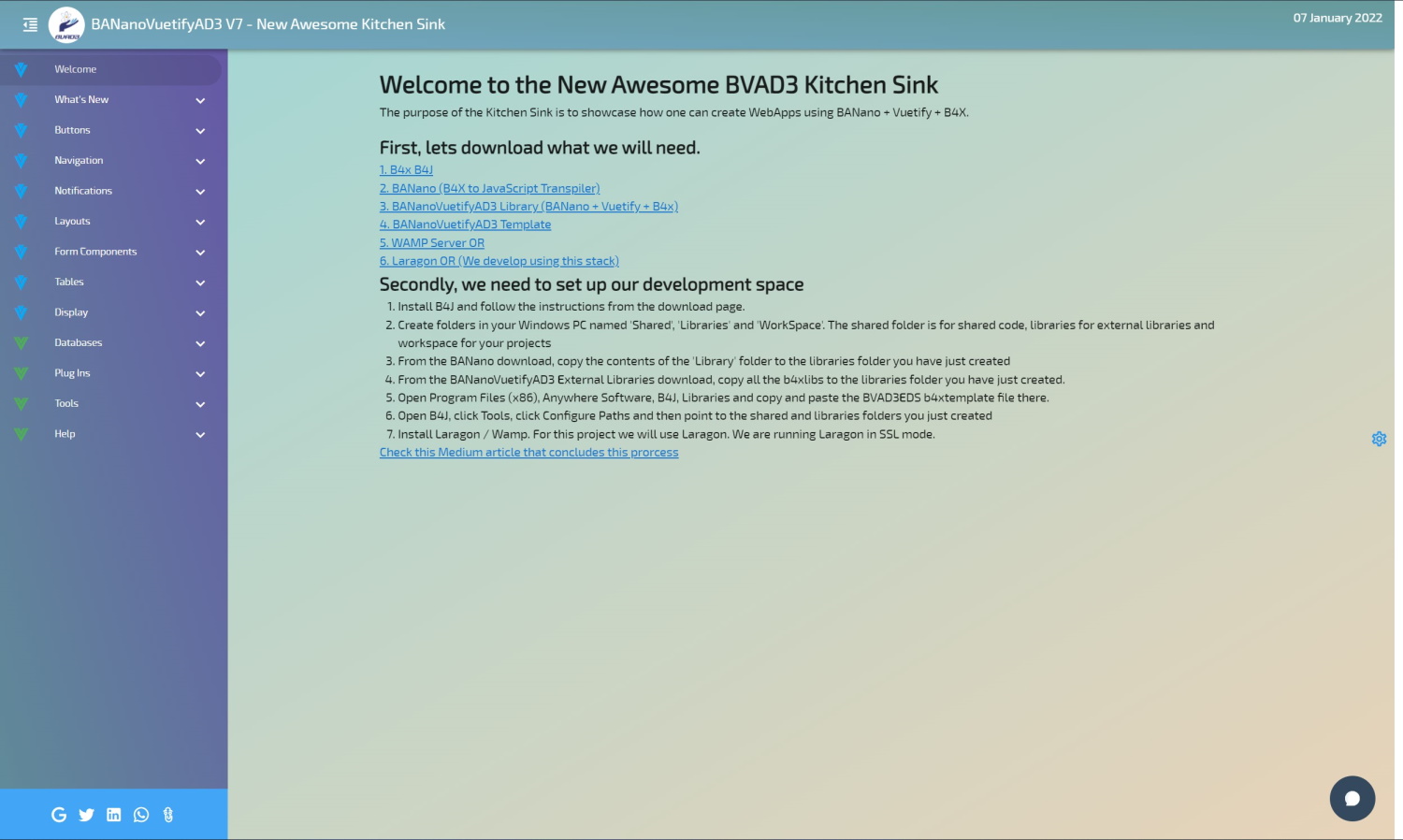

1. Almost everything of what you see in the kitchen sink is done via the abstract designer without coding.

View attachment 124064

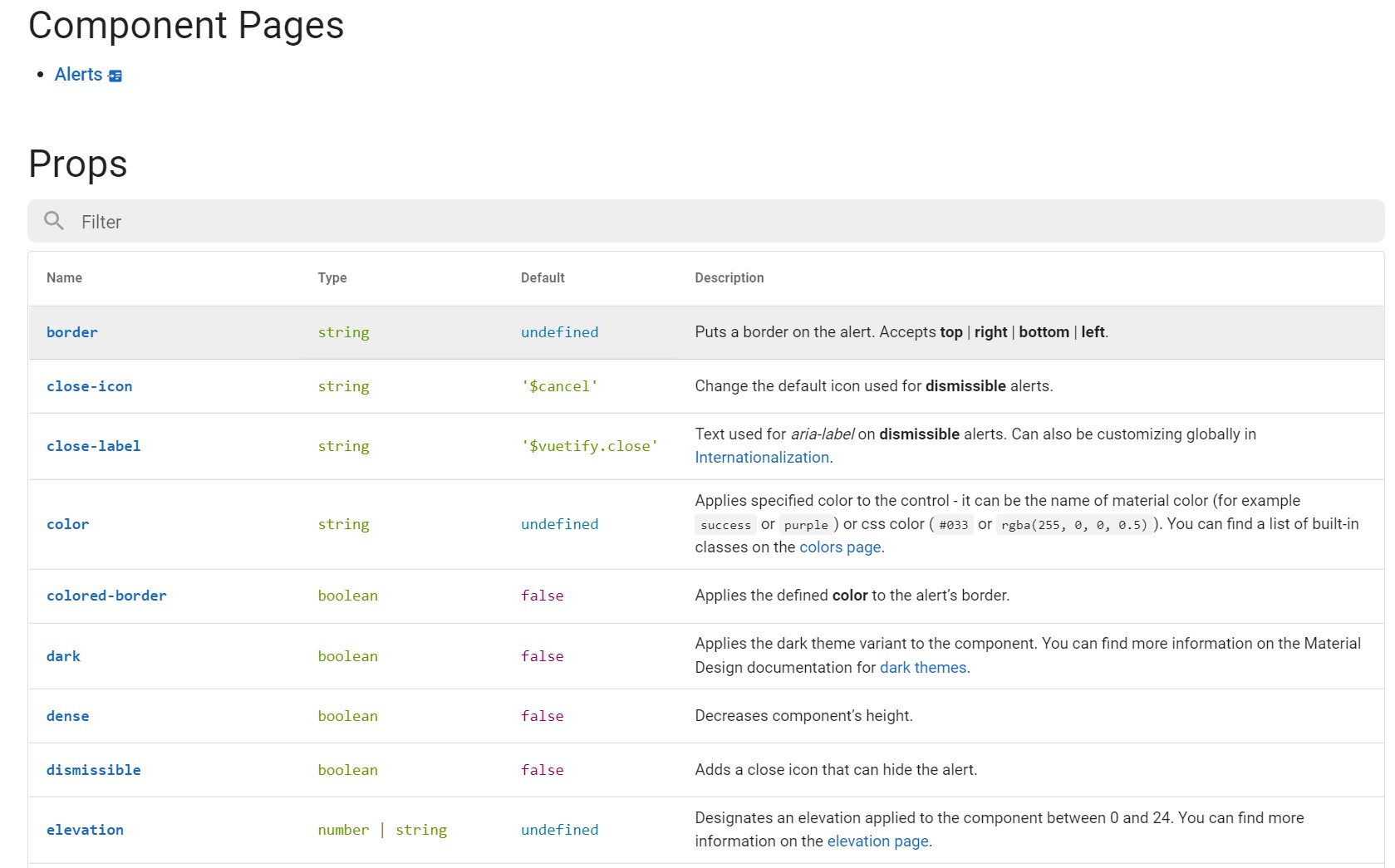

2. Each custom view in the BVAD3 system is done based on the Vuetify API. For example, the API for an VAlert is here, https://vuetifyjs.com/en/api/v-alert/#links.
This describes each attribute and what it does. This documentation already exists is available from the Vuetify Website.

View attachment 124065

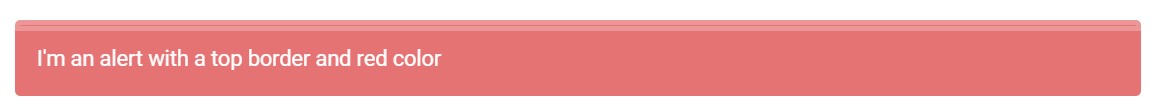

For example, producing this

View attachment 124066

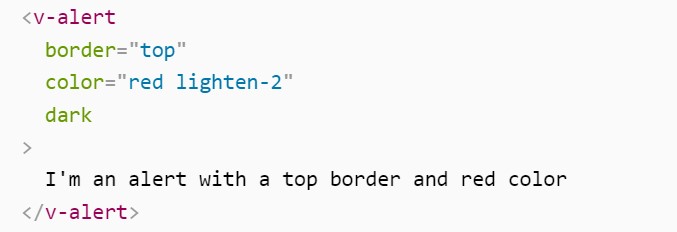

is possible through this code.

View attachment 124067

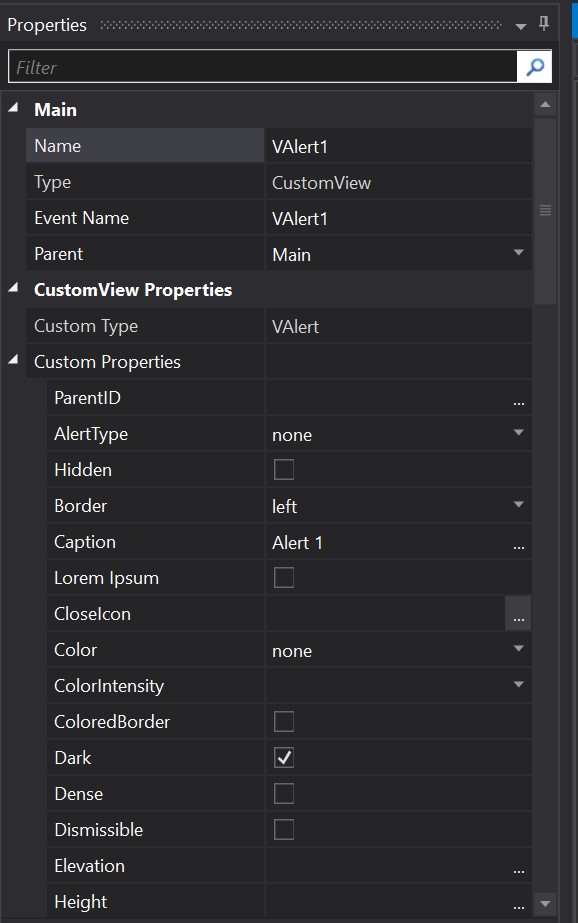

3. This Vuetify API has been re-created as custom views which by changing properties you are able to produce the same result.

View attachment 124068

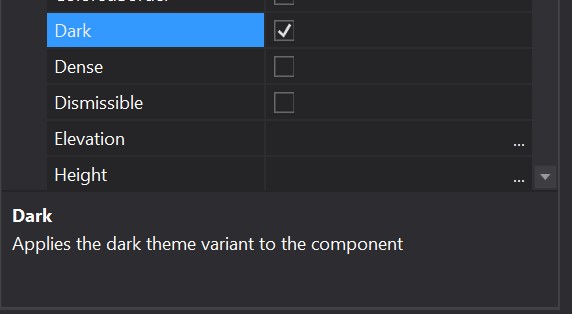

As an example, check the Dark property comments (bottom) and also compare from the VuetifyAPI.

View attachment 124071

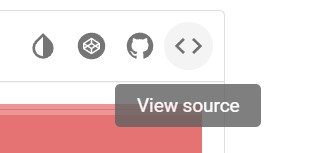

4. The Vuetify Website has all the components with example source code. One clicks the <> button to view the source of any component.

View attachment 124069

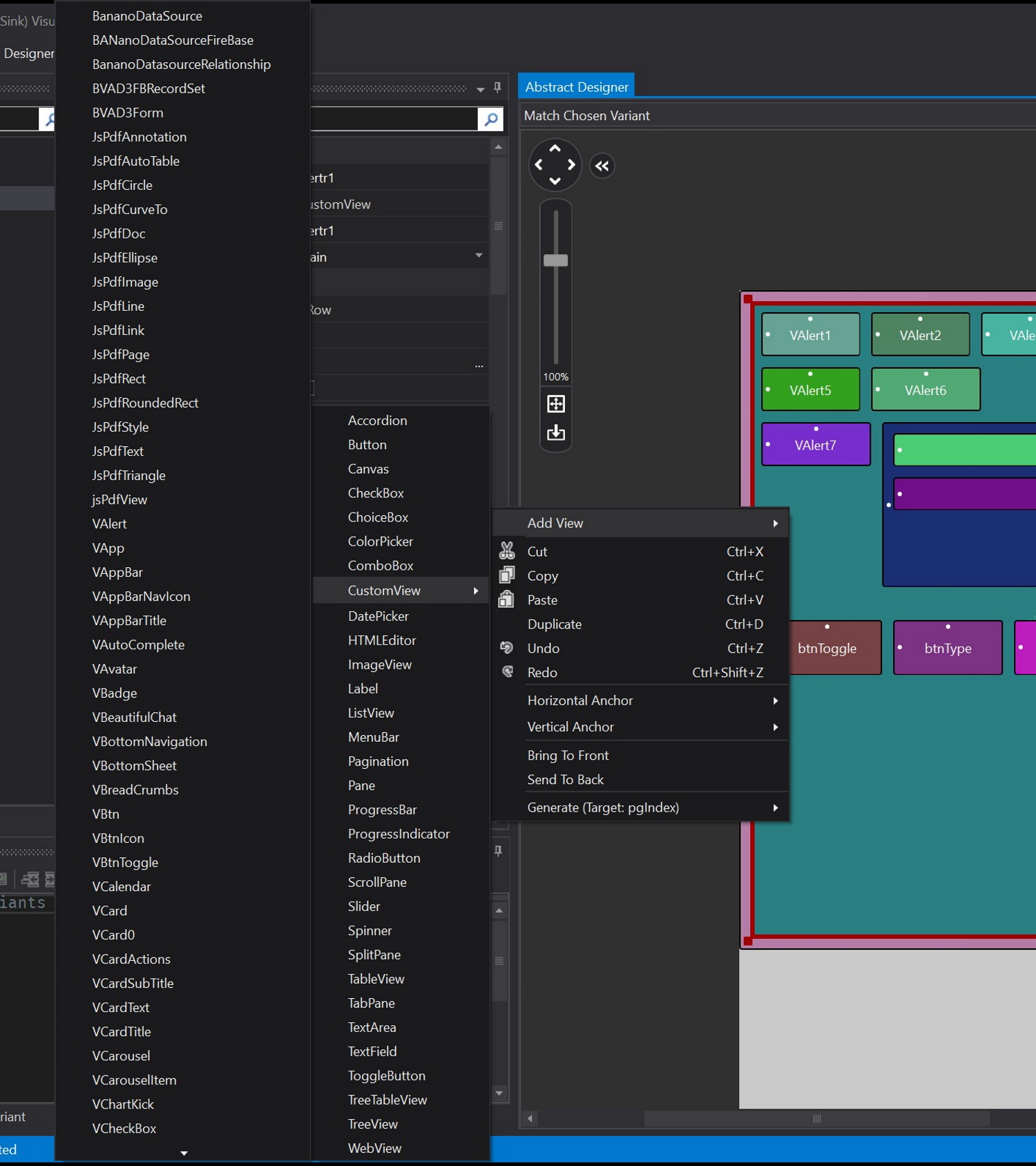

5. All of the Vuetify components (including additional ones) as available for the abstract designer. You design your UI based on the schema provided by Vuetify, e.g. put components inside another and set properties and after that generate events.

View attachment 124070

6. To get an understanding of how BANano works, you can start here.

Original Post
