Android Question Button with Icon at top and text on the bottom

[RogerGCollin]

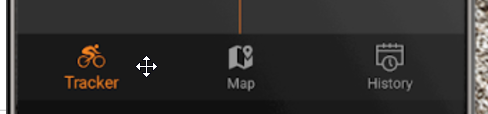

I am completely new to B4A and just starting out making an app for fun! My only experience with coding has been some VBA with Excel. I am looking to set up a menu bar for my app something like the picture below. This has a big icon on the top and small text underneath for each button. I tried using FontAwesome for the icon and that looked great but could not figure out a way to put small text underneath it. Does this need to be done by coding or can it be done in the designer?

Thanks!



[angel_]

Try this:

[B4X] [XUI] AS Tab Menu (Bottom Menu/Navigation)

A better menu, can you find here Hey B4X-Forum! New Year, new views! :) The first one from me for this year is a better, simpler, faster and scalable Tab/Bottom-Menu. i spend a lot of time in creating views, some views i need by my self, but some views not and to create a high quality view...

www.b4x.com



[Erel]

Another simple option is to add a panel with label and ImageView.



[Mahares]

This has a big icon on the top and small text underneath for each button.

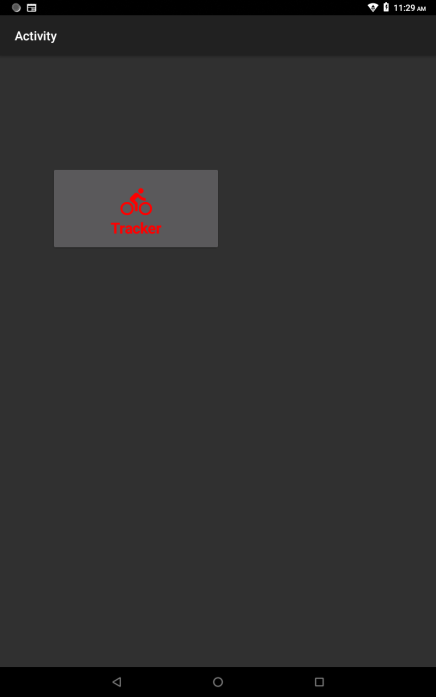

Another option is to use CSBuilder. Lots of threads about it. Here is an example code with the matching screenshot:

Dim cs As CSBuilder
    cs.Initialize.color(Colors.Red).Size(50).Typeface(Typeface.MATERIALICONS).VerticalAlign(10dip).Append(Chr(0xE52F)).Pop. _
    Typeface(Typeface.DEFAULT_BOLD).Append(CRLF).Size(24).Append("Tracker").PopAll
    Button1.Text = cs



[asales]

Here too:

How to add image to button with text ?

Hello everyone how can i add image with text to the button like this ?

www.b4x.com



[RogerGCollin]

Thank you all for your ideas. They all look great to me and I will try the lot of them for fun and to see which I like the best!
