B4J Library [XUI] [B4X] SD_CosmosMenu

Log

Rel. 1.01

Possibility to choose whether to add a light effect or not​

Rel. 1.02

Possibility to insert the first sphere in the center​

Rel. 1.03

Button animated​

SD_CosmosMenu

Author: Star-Dust
Version: 1.03

• SD_CosmosMenu
  • Events:
    • Click (ID As String)
    • LongClick (ID As String)
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • Class_Globals As String
    • Clear As String
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
      Base type must be Object
    • GetBase As B4XView
    • GetItemType (Id As String) As String
    • Initialize (Callback As Object, EventName As String) As String
    • Invalidate As String
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
    • RemoveItem (id As String, ForceRefresh As Boolean) As String
    • SetItem (Id As String, Text As String, TextFont As B4XFont, LightEffect As Boolean, ForceRefresh As Boolean) As String
    • SetItemImage (Id As String, Image As B4XBitmap, LightEffect As Boolean, ForceRefresh As Boolean) As String
    • Snapshot As B4XBitmap
  • Properties:
    • BallDiameter As Int
    • Height As Int
    • Left As Int
    • RotateDegree As Int
    • Top As Int
    • Visible As Boolean
    • Width As Int



[Star-Dust]

Example

For i=1 To 4
    SD_CosmosMenu1.SetItem(i,"Prova " & I,xui.CreateDefaultFont(14),True,True)
Next

SD_CosmosMenu1.SetItemImage(6,xui.LoadBitmap(File.DirAssets,"cocacola.png"),False,True)
SD_CosmosMenu1.SetItemImage(7,xui.LoadBitmap(File.DirAssets,"barilla.png"),False,True)

' rotate
For i=0 To 72
    SD_CosmosMenu1.RotateDegree=i*5
    Sleep(100)
Next

Private Sub SD_CosmosMenu1_Click (ID As String)
    Log(ID)
End Sub

' in B4J it is raised when you click the right mouse button
Private Sub SD_CosmosMenu1_LongClick (ID As String)
    Log("long:  & ID)
End Sub



[Star-Dust]

Update 1.01

• Added parameter to choose if you want the light effect.
• Added ios version
• Updated examples




[Xfood]

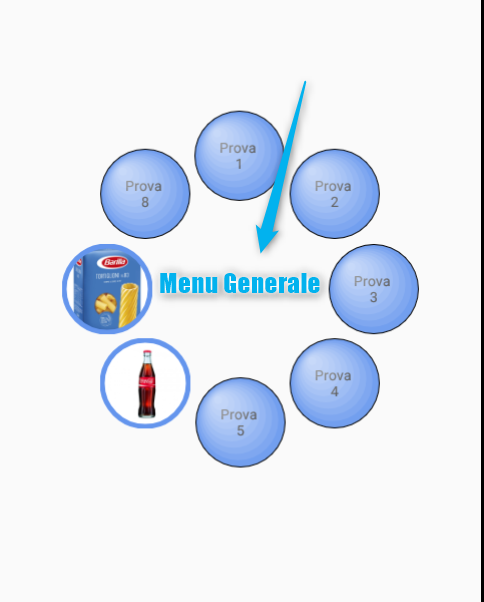

Hello @Star-Dust , I'm trying your latest masterpiece, it's really fantastic, what do you say if you also insert a central label in the next update like in this example?



[Star-Dust]

Hello @Star-Dust , I'm trying your latest masterpiece, it's really fantastic, what do you say if you also insert a central label in the next update like in this example?

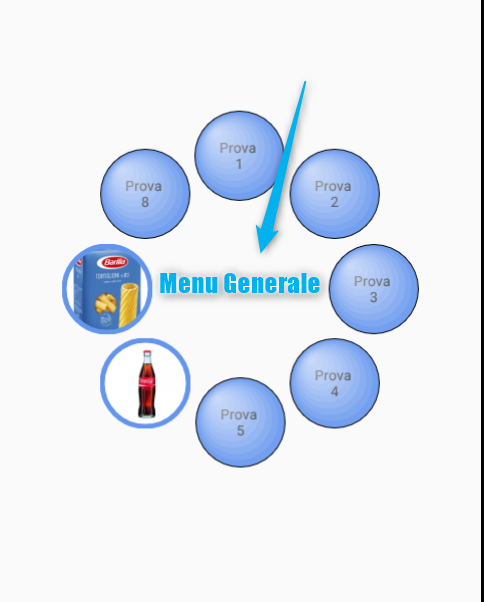

View attachment 128847

I bored myself doing it ?



[Magma]

let's say we have in endless rotating... in B4J...
is it possible to click an item when rotating - or must be out of loop (stopped) ?

    Do While exitf=False
        i=i+1
        SD_CosmosMenu1.RotateDegree=i*5
        Sleep(50)
        If i>72 Then i=0
    Loop



[Star-Dust]

let's say we have in endless rotating... in B4J...
is it possible to click an item when rotating - or must be out of loop (stopped) ?

    Do While exitf=False
        i=i+1
        SD_CosmosMenu1.RotateDegree=i*5
        Sleep(50)
        If i>72 Then i=0
    Loop

I tried, but the click doesn't seem to be in focus while the views are in motion.

But it may be that in future updates I will be able to achieve something like this



[Star-Dust]

Hello @Star-Dust , I'm trying your latest masterpiece, it's really fantastic, what do you say if you also insert a central label in the next update like in this example?

View attachment 128847

I'll see if I can add it in the next updates



[Magma]

I tried, but the click doesn't seem to be in focus while the views are in motion.

But it may be that in future updates I will be able to achieve something like this

or you can have _MouseMoved (EventData As MouseEvent) or _MouseEntered... at least to stop it manual and then click... and if out of circles... start again rotating..

Excellent work - by the way, as always!



[Star-Dust]

Update 1.02

• Possibility to insert the first sphere in the center



[Star-Dust]

Update 1.03

• Button animated
