Android Question Unwanted Pixel appearance at the corners

Discussion in 'Android Questions' started by Scantech, Apr 15, 2019.

  1. Scantech

    Scantech Well-Known Member Licensed User

    Why does the corners have different color dots?

    I can't figure this out yet.

    Click "not used" button to display the large gauge


    Attached Files:

    Scantech, Apr 15, 2019
    #1
  2. klaus

    klaus Expert Licensed User

    What corner dots are you speaking of?

    klaus, Apr 16, 2019 at 7:45 AM
    #2
  3. Scantech

    Scantech Well-Known Member Licensed User

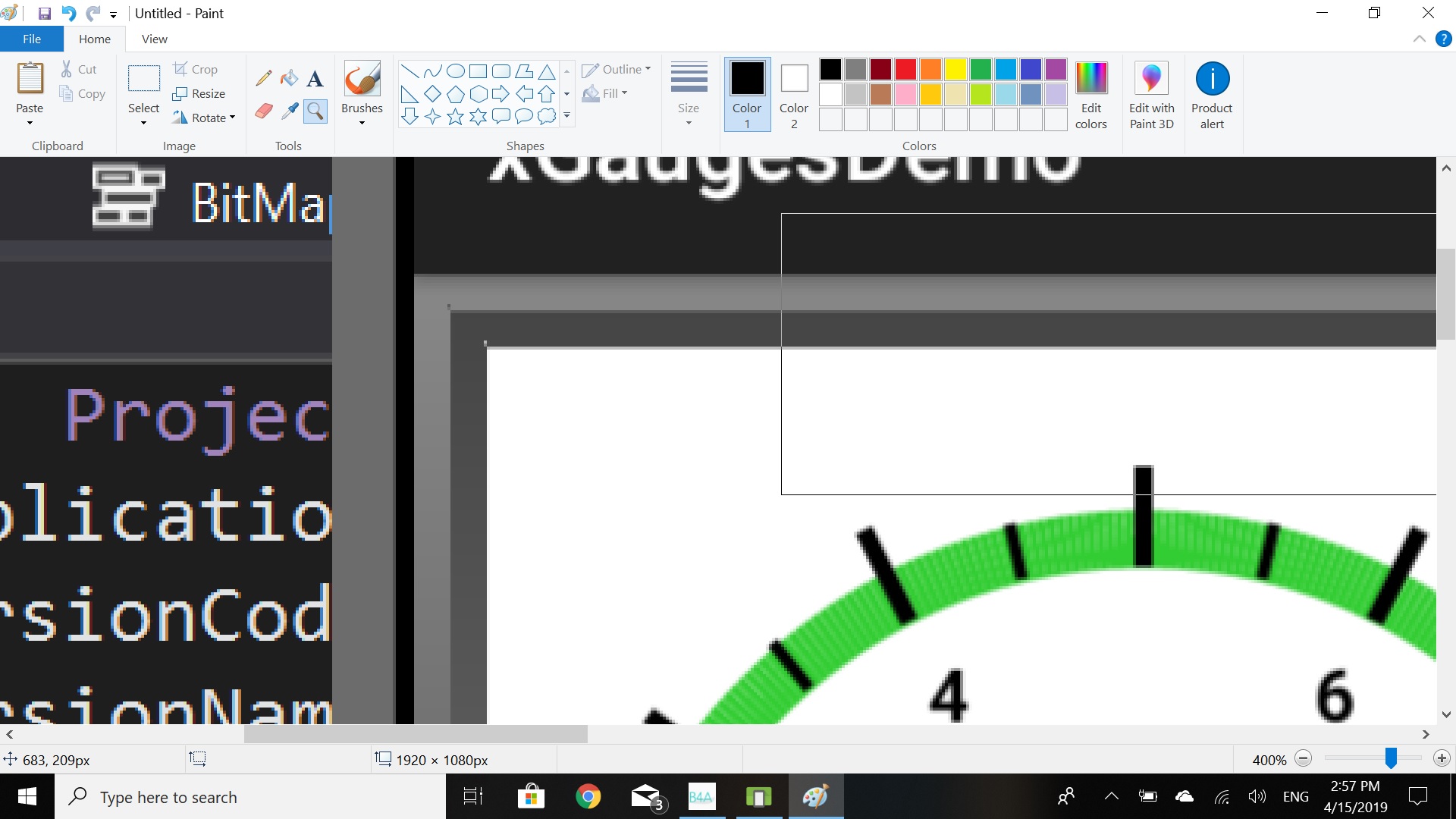

    I have circled with red color to point out the dots.


    Attached Files:

    • Pic.jpg
      File size:
      293.8 KB
      Views:
      48
    Scantech, Apr 16, 2019 at 4:51 PM
    #3
  4. klaus

    klaus Expert Licensed User

    It depends also on the device screen resolution.
    This is the corner on my Samsung Galaxy S8.

    upload_2019-4-16_19-52-54.png upload_2019-4-16_19-53-40.png

    I suppose that the problem is due to the anti aliasing.
    From what I know, it cannot be disabled.
    BitmapCreator has a ReplaceSemiTransparentPixels(NewColor As Int, Rect As B4XRect) method.
    Not sure if it will solve your problem.

    klaus, Apr 16, 2019 at 6:59 PM
    #4
    Scantech likes this.
  5. Scantech

    Scantech Well-Known Member Licensed User

    that did not work(replacesemiTransparentPixels)

    Scantech, Apr 16, 2019 at 9:39 PM
    #5
  6. Erel

    Erel Administrator Staff Member Licensed User

    I see it too after I take a screenshot and enlarge it. It is not noticeable on the device directly.

    If you can reproduce it in a small project then I can further investigate it.

    Erel, Apr 17, 2019 at 6:53 AM
    #6
    Scantech likes this.
  7. Scantech

    Scantech Well-Known Member Licensed User

    Here you go. Emulator will be a great way to see it or 480x800 screen resolution


    Attached Files:

    Scantech, Apr 17, 2019 at 8:38 PM
    #7
  8. Erel

    Erel Administrator Staff Member Licensed User

    You are calling DrawRectRounded with corner radius set to 0. This case is easy to fix. DrawRectRounded should call DrawRect.
    Does it happen in other cases where the radius > 1 ?

    Erel, Apr 18, 2019 at 7:20 AM
    #8
    Scantech likes this.
  9. Scantech

    Scantech Well-Known Member Licensed User

    No it is fine greater then 0. I changed it to DrawRect2 and its ok. Thanks

    Scantech, Apr 18, 2019 at 7:55 PM
    #9
  10. Erel

    Erel Administrator Staff Member Licensed User

    I will update BitmapCreator to draw with DrawRect when the radius < 1.

    Erel, Apr 19, 2019 at 8:43 AM
    #10
    kanati and Scantech like this.
