B4A Library [XUI] [B4A] [B4I] xSD_OpenMaps

NOTE
In B4A add in manifest

CreateResourceFromFile(Macro, Core.NetworkClearText)

B4J Version here

xSD_OpenMaps

Author: Star-Dust
Version: 1.05

• CameraPosition
  • Functions:
    • Class_Globals As String
    • Initialize (Lat As Double, Lng As Double, Zoom As Float) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
    • Target As String
    • ToString As String
  • Properties:
    • Lat As Double [read only]
    • Lng As Double [read only]
    • Zoom As Float [read only]
• LatLng
  • Fields:
    • Latitude As Double
    • Longitude As Double
  • Functions:
    • Class_Globals As String
    • Initialize (Lat As Double, Lng As Double) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
• MapCircle
  • Functions:
    • Class_Globals As String
    • GetCenter As ResumableSub
      <code>wait for (Circle.GetCenter) COMPLETE (Position As LatLng)</code>
    • GetRadius As ResumableSub
      <code>wait for (Circle.GetRadius) COMPLETE (Radius As Double)</code>
    • Initialize (vCenter As LatLng, vRadius As Double, Visble As Boolean, id As String, WebView As WebView) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
  • Properties:
    • ID As String [read only]
    • Visible As Boolean
• MapInfoWindow
  • Functions:
    • Class_Globals As String
    • Initialize (vContent As String, vPosition As LatLng, ID As String) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
  • Properties:
    • Content As String [read only]
    • ID As String [read only]
    • Position As LatLng [read only]
• MapLabel
  • Functions:
    • Class_Globals As String
    • Initialize (vPosition As LatLng, vText As String, vPermanent As Boolean, vID As String, WebView As WebView) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
  • Properties:
    • ID As String [read only]
    • Permanent As Boolean [read only]
    • Position As LatLng [read only]
    • Text As String
• MapPolygon
  • Functions:
    • Class_Globals As String
    • GetFillColor As ResumableSub
      <code>wait for (MapPolygon.GetFillColor) COMPLETE(FillColor As Int)</code>
    • GetHole As List
    • GetLineColor As ResumableSub
      <code>wait for (MapPolygon.GetLineColor) COMPLETE(LineColor As Int)</code>
    • GetLineWidth As ResumableSub
      <code>wait for (MapPolygon.GetLineWidth) COMPLETE(LineWidth As Int)</code>
    • GetPoints As ResumableSub
      List of LatLng
      <code>wait for (MapPolygon.GetPoints) COMPLETE(Points As List)</code>
    • Initialize (Visble As Boolean, ID As String, Point As List, StrokeWidth As Int, StrokeColor As Int, FillColor As Int, Opacity As Double, WebView As WebView) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
    • SetHole (Point As List) As String
  • Properties:
    • ID As String [read only]
    • Opacity As Float [read only]
    • Visible As Boolean
• MapPolyline
  • Functions:
    • Class_Globals As String
    • GetLineColor As ResumableSub
      <code>Wait For (MapPoly.GetLineColor) COMPLETE (Color As Int)</code>
    • GetLineWidth As ResumableSub
      <code>Wait For (MapPoly.GetLineWidth) COMPLETE (LineWidth As Int)</code>
    • GetPoints As ResumableSub
      List of LatLng
      <code>Wait For (MapPoly.GetPoints) COMPLETE (ListPoints As List)</code>
    • Initialize (Visble As Boolean, ID As String, Point As List, StrokeWidth As Int, StrokeColor As Int, WebView As WebView) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
  • Properties:
    • ID As String [read only]
    • Visible As Boolean
• Marker
  • Functions:
    • Class_Globals As String
    • CreateLabel (Text As String) As String
      Create Label on Marker
    • GetIconUrl As ResumableSub
      <code>wait for (MK.GetIconUrl) COMPLETE (URL As String)</code>
    • GetPosition As ResumableSub
      <code>wait for (MK.GetPosition) COMPLETE (Position As LatLng)</code>
    • GetTitle As ResumableSub
      <code>wait for (Mk.GetTitle) COMPLETE (Title As String)</code>
    • Initialize (vPosition As LatLng, vTitle As String, vIconUri As String, vVisible As Boolean, vID As String, WebView As WebView) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
    • UpdateLabel (Text As String) As String
      Set Text empty for remove
  • Properties:
    • IconUri As String [read only]
    • ID As String [read only]
    • Visible As Boolean
• OpenMaps
  • Events:
    • CameraChange (CamPosition As CameraPosition)
    • CircleClick (SelectedCircle As MapCircle)
    • Click (Point As LatLng)
    • DblClick (Point As LatLng)
    • MarkerClick (SelectedMarker As Marker)
    • PolygonClick (SelectedPolygon As MapPolygon)
    • PolylineClick (SelectedPolyline As MapPolyline)
    • Ready
    • TouchMove (Point As LatLng)
  • Fields:
    • MAP_TYPE_CARTO As Int
    • MAP_TYPE_ESI As Int
    • MAP_TYPE_ESI_SATELLITE As Int
    • MAP_TYPE_HYBRID As Int
    • MAP_TYPE_NORMAL As Int
    • MAP_TYPE_SATELLITE As Int
    • MAP_TYPE_TERRAIN As Int
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • AddCircle (ll As LatLng, Radius As Double, StrokeWidth As Float, StrokeColor As Int, FillColor As Int, Opacity As Double) As MapCircle
      Adds a circle To the map.
      Center - Position of the circle center.
      Radius - Circle radius.
      StrokeWidth - Stroke width.
      StrokeColor - Stroke color.
      FillColor - Inner color.
      Opacity - Inner color opacity. Value between 0 To 1.
    • AddInfoWindow (Content As String, Position As LatLng) As MapInfoWindow
      Opens an info window with the given HTML content at the specified position.
    • AddInfoWindow2 (Content As String, Position As LatLng, MaxWidth As Int) As MapInfoWindow
      Opens an info window with the given HTML content at the specified position. It cannot be larger than MaxWidth (in pixels).
    • AddMarker (Lat As Double, Lng As Double, Title As String) As Marker
      Adds a marker to the map.
    • AddMarker2 (Lat As Double, Lng As Double, Title As String, IconUri As String) As ResumableSub
      Adds a marker To the map with a custom icon.
      The IconUri must point To an online image Or an image from the assets folder.
      In the later Case the custom icon will only appear in Release mode.
      Example: <code>WAIT FOR (gmap.AddMarker2(10, 10, "This is a test", IconUrl)) COMPLETE (MK as Marker)</code>
      see https://kml4earth.appspot.com/icons.html for icons
    • AddMarker2Label (Lat As Double, Lng As Double, Title As String, Label As String, IconUri As String) As ResumableSub
      Adds a marker To the map with a custom icon and label
      The IconUri must point To an online image Or an image from the assets folder.
      In the later Case the custom icon will only appear in Release mode.
      Example: <code>WAIT FOR (gmap.AddMarker2(10, 10, "This is a test", "http:address.ico")) COMPLETE (Mk As Marker)</code>
    • AddMarker3 (Lat As Double, Lng As Double, Title As String, IconUri As String, Width As Int, Height As Int) As Marker
      Adds a marker To the map with a custom icon.
      The IconUri must point To an online image Or an image from the assets folder.
      In the later Case the custom icon will only appear in Release mode.
      Example: <code>gmap.AddMarker2(10, 10, "This is a test", File.GetUri(File.DirAssets, "SomeIcon.png",32,32))</code>
      see https://kml4earth.appspot.com/icons.html for icons
    • AddMarker3Label (Lat As Double, Lng As Double, Title As String, Label As String, IconUri As String, Width As Int, Height As Int) As Marker
      Adds a marker To the map with a custom icon and label.
      The IconUri must point To an online image Or an image from the assets folder.
      In the later Case the custom icon will only appear in Release mode.
      Example: <code>gmap.AddMarker2(10, 10, "This is a test", File.GetUri(File.DirAssets, "SomeIcon.png",32,32))</code>
    • AddPolygon (Points As List, StrokeWidth As Float, StrokeColor As Int, FillColor As Int, Opacity As Double) As MapPolygon
      Adds a polygon To the map.
      Points - A list Or Array of LatLng points.
      es. array(array(41.90, 12.49),array(41.80, 12.50),array(41.85, 12.60))
      StrokeWidth - Stroke width.
      StrokeColor - Stroke color.
      FillColor - Inner color.
      Opacity - Inner color opacity. Value between 0 To 1.
    • AddPolygonHole (OuterPoints As List, HolePoints As List, StrokeWidth As Float, StrokeColor As Int, FillColor As Int, Opacity As Double) As MapPolygon
    • AddPolyline (Points As List, StrokeWidth As Float, StrokeColor As Int) As MapPolyline
      Adds a polyline To the map.
      Points - A list Or Array of LatLng points.
      Width - Line width.
      Color - Line color.
      CloseInfoWindow (InfoWindow As InfoWindow)
      Closes the specified info window.
    • AllVisibleMapObjects As String
    • AlternativeMap (url As String, maxZoom As Int, attribution As String) As String
    • CameraPosition As ResumableSub
      Returns the current camera position.
      <code>wait for (OM.GetTitle) CameraPosition (cp As CameraPosition)</code>
    • Class_Globals As String
    • ClearMap As String
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
      Base type must be Object
    • EditConfigure (Offset As Double, Tollerance As Int) As String
      Offset -> Map difference; Tollerance -> Editing Poly point
    • EditingActive As Boolean
    • EditingCircle (Circle As MapCircle, Active As Boolean) As ResumableSub
      <code>wait for (OM.EditingCircle(Circle,True)) COMPLETE (Success As Boolean)</code>
      OR
      <code>OM.EditingCircle(Circle,True)</code>
    • EditingPolygon (Polygon As MapPolygon, Active As Boolean) As ResumableSub
      If an element is already in editing, it is not possible to edit another at the same time.
      Dim Success As Boolean = OpenMap.EditingPolygon(Polygon,True)
      <code>Wai For (OpenMaps.EditingPolygon(Polygon, True)) COMPLETE (Success As Boolean)</code>
    • EditingPolyline (Polyline As MapPolyline, Active As Boolean) As ResumableSub
      <code>Wait For (OM.EditingPolyline(PolyLine,True)) COMPLETE (Success As Boolean)</code>
    • filterVisibleMapObjects As String
      Makes only the objects visible inside the visible map (Bounds)
    • Initialize (Callback As Object, EventName As String) As String
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
    • IsReady As Boolean
    • LatLonToXY (ll As LatLng) As ResumableSub
      <code>wait for (OM.LatLonToXY(ll)) COMPLETE (XY() As Double)</code>
      {XY(0) = x (XY(1) = y}
    • LoadImageFromUrl (Url As String) As ResumableSub
    • LoadMKL (Path As String, FileName As String) As ResumableSub
      Return Map as Object
      Key is ID , Value is Object (Marker,MapPolygon,MapPolyline)
      <code>WAIT FOR (OpenMap.LoadMKL(Path, FileName)) COMPLETE (ObjectMap As Map)</code>
    • MapLoaded As Boolean
    • MessageToPanel (Text As String) As String
    • MoveCamera (cp As CameraPosition) As String
    • MoveCamera2 (ll As LatLng) As String
    • ObjectIsEditing (IDobject As String) As Boolean
    • PanelOff As String
    • PanelOn As String
    • RedrawAllObj As String
    • RemoveCircle (vCircle As MapCircle) As String
      Removes the specified circle from the map.
    • RemoveInfoWindow (InfoWindow As MapInfoWindow) As String
    • RemoveMarker (vMarker As Marker) As String
      Removes the specified marker from the map.
    • RemovePolygon (vPolygon As MapPolygon) As String
      Removes the specified polygon from the map.
    • RemovePolyline (vPolyline As MapPolyline) As String
      Removes the specified polyline from the map.
    • SaveKML (MapObj As Map, Path As String, FileName As String)
    • SetZoom (z As Int) As String
      Sets the zoom level.
    • UpdateCircleCenter (id As String, Lat As Double, Lng As Double) As String
      Update position Radius
    • UpdateCircleRadius (id As String, Radius As Double) As String
      New Radius
    • UpdateMarkerPosition (id As String, Lat As Double, Lng As Double) As String
      update marker posizion
    • UpdatePolygon (Plg As MapPolygon, NewPoints As List) As String
      NewPoint as List of LatLng
    • UpdatePolygonColor (Plg As MapPolygon, Color As Int) As String
      Change color
    • UpdatePolygonFillColor (Plg As MapPolygon, Color As Int, Opacity As Float) As String
      1.12
      Update FillColor - Opacity 0-1
    • UpdatePolygonStroke (Plg As MapPolygon, Width As Int) As String
      Change StrokeWidth
    • UpdatePolyline (Pll As MapPolyline, NewPoints As List) As String
      NewPoint as List of LatLng
    • UpdatePolylineColor (Pll As MapPolyline, Color As Int) As String
      Change color
    • UpdatePolylineStroke (Pll As MapPolyline, Width As Int) As String
      Change StrokeWidth
    • visibleObject (ID As String, Visible As Boolean) As String
      es. OpenMap.visibleObject(Polygon.ID)
    • ww As WebView
    • XYToLatLng (x As Double, y As Double) As ResumableSub
      <code>wait for (OM.XYToLatLng(x,y)) COMPLETE (Position As LatLng)</code>
  • Properties:
    • MapBound As ResumableSub [read only]
      <code>wait for (OM.getMapBound) COMPLETE (Bound As Map)</code>
      Return bound in map format: {"northEast":{"lat":45.123,"lon":12.456},"southWest":{"lat":40.987,"lon":10.321}}
    • MapType
      get or set the zoom level.
    • NumberOfElements As ResumableSub [read only]
      Number Of Elements added
      <code>wait for (OM.getNumberOfElements) COMPLETE (N As Int)</code>
• OpenMapsExt
  • Functions:
    • AddressToLatLon (address As String) As ResumableSub
      <code>wait for (GMapExt.AddressToLatLon("Address number, City")) COMPLETE (ll as LatLng)</code>
    • bestRouteTSP (points As List) As List
      Algoritm Nearest Neighbor
      points array as LatLng
    • Class_Globals As String
    • GetBearing (Point1 As LatLng, Point2 As LatLng) As Double
      Returns the bearing between two points, from point1 to point2
    • GetDistance (Point1 As LatLng, Point2 As LatLng) As Double
      Returns the distance between two points in meters
    • GetMarkerLabel (m As Marker) As String
      not available
    • GetMarkerPosition (m As Marker) As ResumableSub
      <code>wait for (OME.GetMarkerPosition) COMPLETE (Position As LatLng)</code>
    • GetMarkerTitle (m As Marker) As ResumableSub
      <code>wait for (OME.GetMarkerTitle) COMPLETE (Title As String)</code>
    • Initialize (OpenMap As OpenMaps) As String
      Initializes the object. You can add parameters to this method if needed.
    • InsidePath (point As LatLng, LatLngList As List) As Boolean
    • IsInitialized As Boolean
      Verifica se l'oggetto sia stato inizializzato.
    • LatLonToAddress (lat As Double, lon As Double) As ResumableSub
    • LatLonToXY (ll As LatLng) As ResumableSub
      <code>wait for (OME.LatLonToXY(ll)) COMPLETE (XY As Double)</code>
    • ObjectIsEditing (IDobject As String) As Boolean
    • RemoveMarkerLabel (m As Marker) As String
      not available
      Removes the Marker Label for the given Marker
    • RouteDistance (route As List) As Double
      Calcola la distanza totale di un percorso
    • SetMarkerClickable (m As Marker, Clickable As Boolean) As String
      Always clickable - not necessary
      Sets the marker clickable property
    • SetMarkerIcon (m As Marker, URL As String) As String
      not available
    • SetMarkerLabel (m As Marker, Text As String, Color As String, TextSize As Double) As String
      not available
      Sets a MarkerLabel with the given values.
      Posible color values.
    • SetMarkerLabel2 (m As Marker, Text As String, Color As String, BackgroundColor As String, TextSize As Double) As String
      not available
    • SetMarkerOrigin (m As Marker, X As Double, y As Double) As String
      not available
      Sets the marker origin 'doesn't work!!!
    • SetPolygonClickable (pg As MapPolygon, Clickable As Boolean) As String
      Always clickable - not necessary
      Sets the polygon clickable property 'doesn't work!!!
    • XYToLatLng (x As Double, y As Double) As ResumableSub
      Returns the Lat/Lng coordinates for the given screen coordinates 'doesn't work!!!
      <code>wait for (OME.XYToLatLng(x,y)) COMPLETE (ll As LatLng)</code>

Update

• 1.01 - Fix Bugs
• 1.02
  • added OpenMpas.AddPolygonHole, MapPolygon.SetHole, GetHole
• 1.03 - Fix bug
• 1.04 - Fix Bug (camera)
• 1.05 - Fix Bug (UpdateCircleCenter)
• 1.06 Fix Bug (Marker)



[Star-Dust]

SAMPLE B4xPages

Sub Class_Globals
    'These global variables will be redeclared each time the activity is created.
    Private OMaps As OpenMaps
    Private OMapsExt As OpenMapsExt
End Sub

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainLayout")

    OMapsExt.Initialize(OMaps)
End Sub

Private Sub OMaps_Ready
    wait for (OMaps.getZoom) COMPLETE (Zoom As Int)
    LabelZoom.Text=Zoom

    wait for (OMapsExt.AddressToLatLon("Torre Eiffel")) COMPLETE (ll As LatLng)
    OMaps.setZoom(16)
    OMaps.MoveCamera2(ll)

    Dim Cr As MapCircle = OMaps.AddCircle(ll,50,2, xui.Color_Red,xui.Color_Yellow,0.5)
    Dim Pl As MapPolyline = OMaps.AddPolyline(Array(pt(48.8586973, 2.296136), pt(48.8572973, 2.297036), pt(48.8572973, 2.295236)),4,xui.Color_Red)
    Dim Pg As MapPolygon =  OMaps.AddPolygon(Array(pt(48.8575703, 2.292737), pt(48.8561703, 2.293637), pt(48.8561703, 2.291837)),1,xui.Color_Red,xui.Color_Yellow,0.3)

    WAIT FOR (OMaps.AddMarker2(ll.Latitude,ll.Longitude,"My Marker","https://cdn-icons-png.flaticon.com/512/684/684908.png")) COMPLETE (Mk As Marker)
End Sub



[Javier Lovay]

Hi, congratulations on your great work. Thanks for sharing it.
I'm trying to apply it to B4i, but the OMaps_Read event isn't firing. The same code works perfectly in B4A.

Thanks!!



[Star-Dust]

Thanks for the report, I'll check it out



[Star-Dust]

Update rel. 1.01
FIX BUGS



[Javier Lovay]

THANKS!!!!!!!



[sigster]

Thanks for good map

I have Two Zoom Controls Top-left and Bottom-right
can I hide the Top-left or Bottom-right

will you have Center Cursor where the X Y are



[Star-Dust]

How is it possible that you have 2 zoom controls?



[sigster]

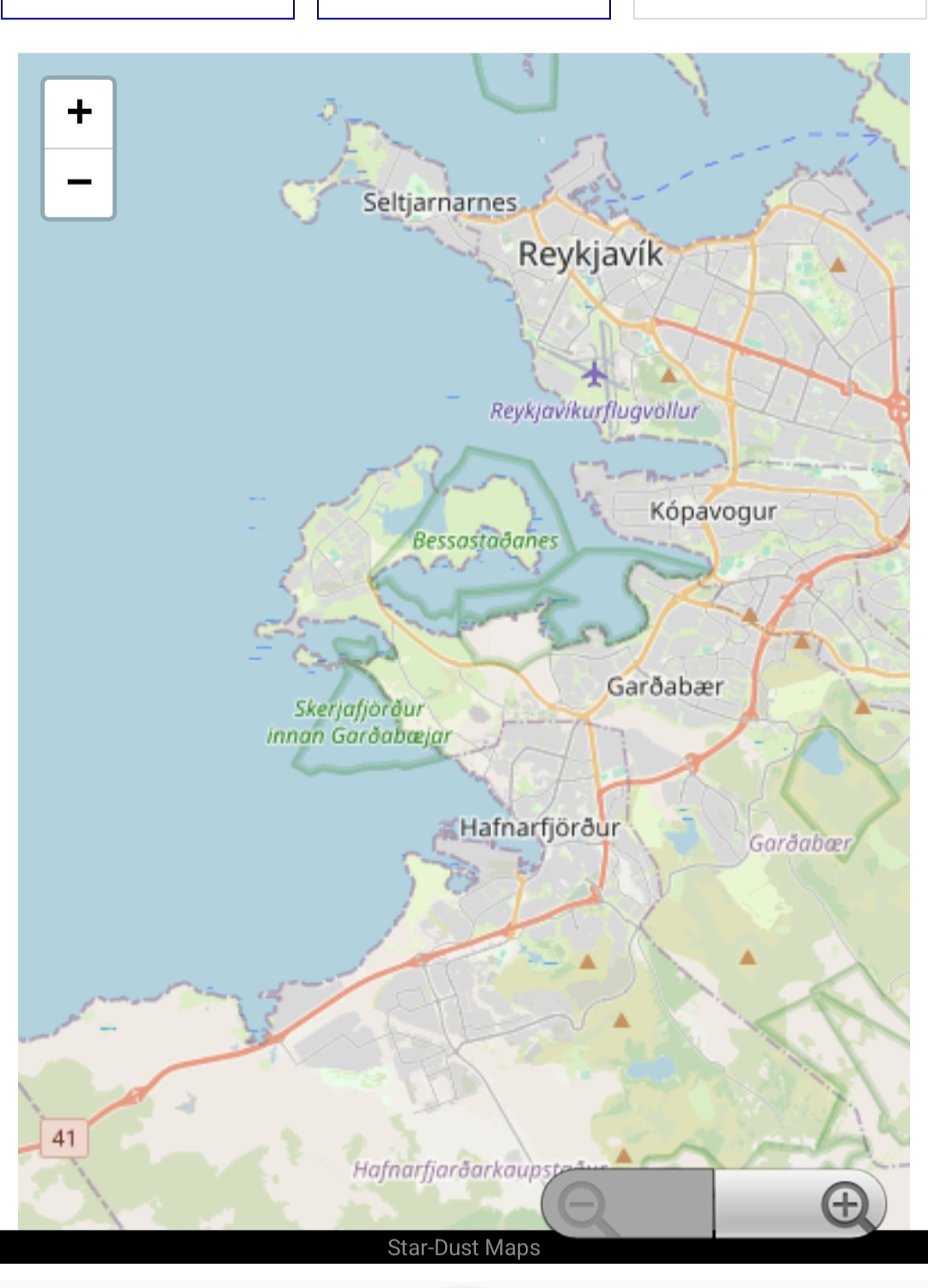

I created another test app to check if I see the both Top-left and Bottom-right
this is the app and screenshot

when I run the app it ask for WebViewExtras is it possible the Bottom-right zoom is from WebViewExtras ?

WebViewExtras

Hi all. WebViewExtras is my latest library. It's a much updated version of JSInterface. WebViewExtras exposes more of the available native Android WebView methods to your B4A application: addJavascriptInterface(webView1 As WebView, interfaceName As String) Add a javascript interface to...

www.b4x.com



[Star-Dust]

I did some tests and in no way does the zoom appear because it is disabled by the OpenMaps libraries.

In any case, try this code and tell me if it works:

Private Sub OMaps_Ready
    '   Your code
    '   .........
    OpenMaps1.ww.ZoomEnabled=False
End Sub



[sigster]

Thanks for the help !


I did see the Bottom-right zoom button when I moved the map
It worked when I put this in B4XPage_Created I don't see Bottom-right zoom button

In the future, is it possible to add a cross in the centre that shows my location that can but turn on and off

Private Sub B4XPage_Created (Root1 As B4XView)

    ObjectMap.Initialize
    OMapsExt.Initialize(OMaps)
    OMaps.PanelOff
    OMaps.ww.ZoomEnabled=False



[Star-Dust]

Update version 1.02

• added OpenMpas.AddPolygonHole, MapPolygon.SetHole, GetHole



[schimanski]

I've been experimenting with OpenMaps and I'm impressed with this alternative to Google Maps. However, I can't seem to integrate my own marker icons from the File.DirAssets folder. I've used FileProfider to generate the file path. Also File.Combine isn't working either. The error message is:

java.lang.IllegalArgumentException: Expected URL scheme 'http' or 'https' but was 'content'

Ist it possible to use own png-files as marker under b4a?

Thanks for help!



[Star-Dust]

It depends on how you link the image. Do you use GerUri?

File.GetUri(File.DirAssets, "SomeIcon.png"))</code>



[schimanski]

In Version 13.40 of b4a doesn't exists file.geturi. I tried it with file.gettext. But the same result:

java.lang.IllegalArgumentException: Expected URL scheme 'http' or 'https' but no colon was found



[Star-Dust]

It depends on how you pass the link. You can try with xui.FileUri or copy the file to DirInternal and acquire from DirInternal

I'm out now and can't check



[schimanski]

It depends on how you pass the link. You can try with xui.FileUri or copy the file to DirInternal and acquire from DirInternal

I'm out now and can't check

Thank you for your fast reply! I have tested both. Nothing works. It seems, that it is not possible to pass a link which is not started with http or https.



[Daestrum]

Have you tried file:// in place of http:// or https://



[schimanski]

Have you tried file:// in place of http:// or https://

Yes. Same reult:



[Star-Dust]

I confirm it is not possible to link a local image, it requires a URL
