B4J Tutorial [B4X] Using/running B4A and/or B4J on 64 bit Linux Mint 20.2 Cinnamon with 64 bit Wine

*** Contents ***
Intro
Acknowledgements
Disclaimer
Environment
Conventions used in this post
Making it work
Compiling and running your programs
A semi-automated way to get your B4J UI programs ready
Android SDK Manager
Useful tips

*** Intro ***
Ever since the arrival of Windows 10 and all its 'telemetry' (<cough>spyware</cough>) I've been considering leaving Windows behind and moving to Linux. Being a more or less complete newbie to Linux, it had to wait until I had time to start doing this in a proper way: I'm a hands-on guy, I don't want to study for months and only then start using the acquired (and meanwhile probably forgotten) knowledge. In other words, dive in at the deep end and start swimming.

In this post I've documented the steps I took for both B4A and B4J as it seemed better to keep all of it in one place.

Last but not least, I didn't want the overhead of a Windows virtual machine with e.g. VirtualBox.

*** Acknowledgements ***
- Many thanks to @Mihai Rainer Jr. whose thread was absolutely crucial for me as a starting point and on which this one is 99% based: https://www.b4x.com/android/forum/t...under-linux-with-wine-fully-functional.98431/.
- And also many thanks to @EnriqueGonzalez for providing adb version 1.0.40 for Windows and Linux (more about this below).

*** Disclaimer ***
As I mentioned, Linux is mostly a new planet for me. If you would ask questions in this here thread and I happen to know the answer, I'll gladly provide it. However, I won't be searching the web to get those answers - you can do that as well and I want to spend my time digging deep into the Linuxverse :) Many steps have been copied from @Mihai Rainer Jr.'s thread and at the moment I might not even know/understand why they're needed; all I can say is: it works here.

*** Environment ***
- B4J v9.10 through v9.50 (the former is 32-bit, the latter is 64-bit)
- B4A v11.0 through v11.50
- Linux Mint 20.2 Cinnamon (64 bit); installed from a Live USB stick, all default values used
- Wine 5.0 (Ubuntu 5.0-3ubuntu1) (64 bit)
- Laptop: 8 Gb, AMD Ryzen 3 2200U with Radeon Vega Mobile Gfx (in section 'Useful tips' there is a note about the Ryzen processors)
- Desktop: 16 Gb, AMD FX-6300 Six-Core Processor 3.50 GHz

*** Conventions used in this post ***
- Steps that are intended for one particular platform only are prefixed with [B4A] c.q. [B4J]; all others are applicable for both products.
- Wherever 'YOUR_USER_NAME' is used in paths, replace it with your user name (duh, really).

*** Making it work ***
1. Open a terminal window and enter the following commands:
B4X:
sudo apt-get update && sudo apt-get upgrade
sudo apt-get install wine64 winetricks
cd
mkdir virtualwinedrives
mkdir virtualwinedrives/b4x64
WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" WINEARCH=win64 wine wineboot

Warning: @fgh3966 experienced a bug with Wine 8.0.0 and had to revert to version 7.0.1 (https://www.b4x.com/android/forum/threads/bug-wine-8-0-0-maj.145801/)

2. Download the 'dotnet 4.5.2 redistributable (offline version)' (at the time of writing it could be obtained at https://www.microsoft.com/en-us/download/details.aspx?id=42642 ; search the web if the location would have changed).

3.
B4X:
WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" winetricks
- Select 'Select the default wine prefix' and click 'OK'
- Select 'Run winecfg' and click 'OK'
- In tab 'Applications', make sure 'Windows Version' (at the bottom) says 'Windows 7'; if you had to change it, click 'Apply' - thanks to @rwblinn for this tip
- In tab 'Graphics', select a 'Screen resolution' of 100 or more, then click 'OK'
- Select 'Install a Windows DLL or component' and click 'OK'
- Check the boxes for 'dotnet452' and 'vcrun2010', then click 'OK'; click 'OK' (or 'Continue' where applicable) in all the warning messages that pop up, and wait for the installations to complete
- A message will pop up stating you must restart your computer; click 'Restart Now' as this will only terminate Wine

If you would get an error message about the package being broken, winetricks will terminate. In that case, do this:
B4X:
winetricks --force dotnet452
winetricks --force vcrun2010

4.
B4X:
WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" winetricks
- Select 'Select the default wine prefix' and click 'OK'
- Select 'Run winecfg' and click 'OK'; in tab 'Applications', make sure 'Windows Version' (at the bottom) says 'Windows 7' (because the Wine built-in dotnet installer switches this to 'Windows 2003'), click 'OK'
- Select 'Run uninstaller', click 'OK', then click the 'Install' button in that window; navigate to your 'Downloads' directory (or wherever you saved the downloaded 'dotnet 4.5.2 redistributable (offline version)'), change 'Files of type' at the bottom to 'All files (*.*)', select the downloadeded installer, click 'Open', select 'Repair .NET Framework 4.5.2 to its original state', click 'Next', click 'OK' (or 'Continue' where applicable) in all the warning messages that pop up, and wait for the installation to complete
- Close all windows by clicking 'OK' (and 'Cancel' in the very last window)

5. Restart the Wine Prefix (important: under your user, not root!):
B4X:
WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" wineboot --restart

6. Download B4A and/or B4J and their required components (Android SDK, JDK, ...) from https://www.b4x.com.

7.
B4X:
mkdir /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/java

8. Extract (e.g. via 'Files', the file manager) the jdk you downloaded from the B4X site to /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/java so that directory /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/java/jdk-11.0.1 exists.

9.
B4X:
WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" winetricks
- Select 'Select the default wine prefix' and click 'OK'
- Select 'Run uninstaller', click 'OK', and click the 'Install' button
- Change 'Files of type' at the bottom to 'All files (*.*)', select B4A.exe, click 'Open', and install B4A; during installation, check the box to create a desktop icon
- Change 'Files of type' at the bottom to 'All files (*.*)', select B4J.exe, click 'Open', and install B4J; during installation, check the box to create a desktop icon
- Click 'OK' to close the 'Add/Remove Programs' window
- Select 'Change settings' and click 'OK'; check the checkboxes in front of these ones and then click 'OK':
ddr=gdi (this one may be absent from the list, which doesn't seem to be a problem)
glsl=enabled
orm=fbo
videomemorysize=512
- Click 'OK'; also dismiss the warning messages that pop up
- Click 'OK', and then in the main Winetricks window click 'Cancel' to close Winetricks

10. Now could be a good time to copy the relevant folders with your B4X projects, additional libraries, and shared modules from your Windows environment. If you copy them to your '/home/YOUR_USER_NAME/Documents' directory, you'll find them in 'My Documents' under Wine, e.g. when opening a project in B4X.

11. [B4A]
B4X:
mkdir /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android

12. [B4A] Extract (e.g. via 'Files', the file manager) the Android SDK tools you downloaded from the B4X site (at the time of writing, this was 'commandlinetools-win-6609375_latest.zip') to /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android so that directory /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android/cmdline-tools exists.

13. [B4A] Extract (e.g. via 'Files', the file manager) the Android Resources you downloaded from the B4X site (at the time of writing, this was 'resources_06_21.zip') to /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android so that several new directories now exist in that directory.

14. Starting B4A and B4J can be done by double-clicking the desktop icons. An alternative way to run e.g. B4A is (B4J is of course similar):
B4X:
cd '/home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/Program Files (x86)/Anywhere Software/Basic4android'
WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" wine ./B4A.exe

NOTE: the default installation folder for the 64-bit versions of B4A and B4J is 'Program Files' while the 32-bit versions use 'Program Files (x86)'. Modify the aforementioned path as appropriate, if applicable.

15. Run B4A and B4J (by double-clicking the desktop icon) and configure the paths via Tools->'Configure Paths' in both; in B4A, the SDK Manager will not work but - as mentioned on the B4X site - you don't need it. If for some reason you would want/need it, see section 'Android SDK Manager' below. If you used the paths from this post, you can copy and paste the following information for the first two:
- javac.exe: C:\java\jdk-11.0.1\bin\javac.exe
- android.jar (for SDK level 30): C:\android\platforms\android-30\android.jar
- Additional Libraries: that's a custom one from you
- Shared Modules: that's a custom one from you

16. [B4A] In B4A, don't forget to set/load your Private Sign Key (from the 'Tools' menu). Failing to do so, you won't be able to install existing apps on your devices as for Android they will appear to come from a different creator.

17. [B4A] NOTE: when connecting B4A Bridge, a message pops up stating 'Ping failed (IP = xxx.xxx.xxx.xxx): The IP address is most probably incorrect. Do you want to use it?'; click 'Yes', it won't stop you from connecting to your Android device.

18. NOTE: Designer works fine in both B4A and B4J, but the WYSIWYG Designer window is completely black (apart from the title bar).

19. [B4A] adb must be version 1.0.40 for both Windows (for Wine) and Linux (platform tools 28.0.2); you can check this with
B4X:
adb version
You can download both versions in one zip file from https://www.dropbox.com/sh/a45a6ym8l1ue5fk/AAB-7ocL5O4kSvT7cChZB5LEa?dl=0 (thank you @EnriqueGonzalez). In a next step, I will explain what to do with the downloaded file.

20. [B4J]
B4X:
mkdir /home/YOUR_USER_NAME/java
mkdir /home/YOUR_USER_NAME/B4X
mkdir /home/YOUR_USER_NAME/B4X/platform-tools

21. [B4J] Download B4JPackager11 from https://www.b4x.com/android/forum/t...the-simplest-way-to-distribute-ui-apps.99835/, compile it, and copy file 'B4JPackager11.jar' from the project's Objects folder to Linux directory /home/YOUR_USER_NAME/B4X.

22. [B4J]
Download and unzip https://b4xfiles-4c17.kxcdn.com/b4j/linux_jdk-11.0.1.zip as per https://www.b4x.com/android/forum/threads/b4jpackager11-the-simplest-way-to-distribute-ui-apps.99835 and extract (e.g. via 'Files', the file manager) its contents to /home/YOUR_USER_NAME/java so that directory 'jdk-11.0.1' now exists in that directory.

23. [B4A]
B4X:
mv /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android/platform-tools /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android/platform-tools-r30
mkdir /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android/platform-tools
mkdir /home/YOUR_USER_NAME/B4X
mkdir /home/YOUR_USER_NAME/B4X/platform-tools

24. [B4A] Extract (e.g. via 'Files', the file manager) the Windows adb 1.0.40 (platform-tools_r28.0.2-windows.zip) you downloaded from the Dropbox link to /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/android/platform-tools so that several new directories now exist in that directory.

25. [B4A] Extract (e.g. via 'Files', the file manager) the Linux adb 1.0.40 (platform-tools_r28.0.2-linux.zip) you downloaded from the Dropbox link to /home/YOUR_USER_NAME/B4X/platform-tools so that several new directories now exist in that directory.

26. [B4A]
- Launch the text editor (click the Linux Mint menu button in the bottom left corner, type 'text' in the search box, click 'Text Editor')
- Right-click in the large pane on the right and click 'Show Hidden Files' if it's not already checked
- Navigate to 'Home'
- Double-click file '.bashrc' and add the following lines:
B4X:
# Start the Linux version of adb by just typing 'adb'
alias adb='/home/YOUR_USER_NAME/B4X/platform-tools/adb'
# Have the WINEPREFIX environment variable available at all times
export WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64"
- Save the file

27. [B4J]
- Launch the text editor (click the Linux Mint menu button in the bottom left corner, type 'text' in the search box, click 'Text Editor')
- Right-click in the large pane on the right and click 'Show Hidden Files' if it's not already checked
- Navigate to 'Home'
- Double-click file '.bashrc' and add the following lines:
B4X:
# Start the Linux B4Jpackager by just typing 'b4jpkg'
# Note: this assumes that 'packager.json' is present in the current working directory and was properly edited
alias b4jpkg='/home/YOUR_USER_NAME/java/jdk-11.0.1/bin/java -jar /home/YOUR_USER_NAME/B4X/B4JPackager11.jar packager.json'
- Save the file

28. - Launch the text editor (click the Linux Mint menu button in the bottom left corner, type 'text' in the search box, click 'Text Editor')
- Right-click in the large pane on the right and click 'Show Hidden Files' if it's not already checked
- Navigate to 'Home'
- Double-click file '.bashrc' and add the following lines:
B4X:
# Ensure CustomBuildActions will recognise '%windir%'
export windir="c:\windows"
- Save the file

29. Log out, and log in again to make sure the updated .bashrc information will be available to all processes. (Possibly a
B4X:
source .bashrc
command will take care of this too, but I'm not sure - Linux newbie here as I mentioned)

30. [B4A] Check if adb is working (USB debugging must have been enabled in the Developer Options of the Android device):
- Connect your Android phone to the computer via USB
- In a Terminal window, type
B4X:
adb devices
- adb should then report something like:
B4X:
List of devices attached
041c68157d25 device
- In case an issue comes up, use commands 'adb kill-server' and 'adb start-server', and then retry 'adb devices'

31. [B4J] If you intend to use InnoSetup to produce single-file installers for your B4J programs, download it from https://jrsoftware.org/isinfo.php and install it with
B4X:
wine innosetup...
(use the appropriate filename).

That's it. You should now be able to use B4A and B4J on Linux! Make sure you read the 'Useful tips' section below; it may save you a lot of time if strange things (don't) seem to be happening.

*** Compiling and running your programs ***
B4A
:
Business as usual, run the IDE, connect to your device with B4A Bridge (ignore the 'can't ping' warning) and do your thing.

B4J - non-UI programs:
Run the IDE, compile your program, use the jar file; nothing additional needs to be done.

B4J - UI programs - running on a system that has Java installed (assuming you installed Java under /home/YOUR_USER_NAME/java/jdk-11.0.1):
B4X:
/home/YOUR_USER_NAME/java/jdk-11.0.1/bin/java --module-path /home/YOUR_USER_NAME/java/jdk-11.0.1/javafx/lib --add-modules ALL-MODULE-PATH -jar PATH_TO_YOUR_JAR

B4J - UI programs packaged to run on a system that doesn't have Java installed (some steps can be done differently - this is how I do it; also see 'A semi-automated way to get your B4J UI programs ready' below for an easier way to do this):
1. From the IDE, use option Project->'Build Standalone Package'; now, the Windows version is ready and a 'packager.json' file has been created

2.
B4X:
cd
mkdir B4Jprograms
cd B4Jprograms
mkdir YOUR_PROJECT_NAME
cd YOUR_PROJECT_NAME

3. If, as suggested before, you put your B4X projects under your Documents directory, you'll find the project folder and its subfolders there

4. From the project's Objects folder, copy the jar file and 'packager.json' to /home/YOUR_USER_NAME/B4Jprograms/YOUR_PROJECT_NAME

5. Edit packager.json as appropriate; you may need to adjust values such as the path to the icon file

6.
B4X:
b4jpkg

7. A new directory 'temp' is created which contains directory 'build' which contains file 'run.command'

8. To start the program, do this:
B4X:
cd temp/build
./run.command

*** A semi-automated way to get your B4J UI programs ready ***
This is useful to prepare programs to run on a system that doesn't have Java installed. Obviously, all this happens in the Linux environment. Two steps are involved:
A. CopyFilesForLinuxify (runs under Wine as a CustomBuildAction): prepares the necessary files for Linuxify
B. Linuxify (runs natively under Linux): packages your program and produces an executable script to launch it

A. CopyFilesForLinuxify
1. Compile the attached 'CopyFilesForLinuxify' project and copy its jar (from the project's Objects folder) to your B4J 'Additional libraries' directory.

2. You'll need a top-level directory in which subdirectories will be created that will hold your B4J projects' executables. In this section, I will assume that this directory is '/home/YOUR_USER_NAME/Documents/B4Jprograms'. CopyFilesForLinuxify will create that directory if it doesn't already exist.

3. Important: CopyFilesForLinuxify determines whether or not it is running on Linux under Wine. If not, it doesn't produce the target files (it does, however, delete the temp directory if so instructed). Environment variable 'WINEPREFIX' must be set to a non-empty string value in the Linux environment; if you followed the instructions in section 'Making it work', this will have been done.

4. Now, all you have to do is add this CustomBuildAction to your B4J UI programs (and edit it for each program):
B4X:
#CustomBuildAction: after packager, %ADDITIONAL%\CopyFilesForLinuxify.jar, "C:\Users\YOUR_USER_NAME\My Documents\B4Jprograms" MyProgram Y ..\icon.icon
The arguments it accepts are as follows:
- the full path of the directory mentioned in (2)
- the project's jar file name without path or extension
- Y to delete the temp folder, N to leave it alone (this is the folder that is created by B4Jpackager11)
- optionally, the path to the icon file you want to use for your project; most likely the same one that you specified for '#PackagerProperty: IconFile' if you did so

5. Finally, use Projects -> Build Standalone Package to compile your project, build the package, and prepare the necessary files for Linuxify. A new directory with the same name as your project will be created under '/home/YOUR_USER_NAME/Documents/B4Jprograms', and the project's jar and packager.json files that were created by B4Jpackager11 will have been copied to it.

B. Linuxify
I am assuming that you have used the paths (for java and B4JPackager11) that were suggested in section 'Making it work'.

Once, to prepare Linuxify for use on the target Linux system:
- Build the attached project with B4J on Windows (or on Linux under Wine): Project -> Build Standalone Package
- Folder Objects\temp can be deleted
- In folder Objects, edit packager.json and remove path information, just keep the filenames
-
B4X:
cd
mkdir Linuxify
- From folder Objects, copy the jar and packager.json files to Linux directory /home/YOUR_USER_NAME/Linuxify
-
B4X:
cd /home/YOUR_USER_NAME/Linuxify
/home/YOUR_USER_NAME/java/jdk-11.0.1/bin/java -jar /home/YOUR_USER_NAME/B4X/B4JPackager11.jar packager.json
- A new directory 'temp' is created - do not delete it!
-
B4X:
cd
- Edit file '.bashrc' (see e.g. step 28 in section 'Making it work'), append these lines, and log out/log in again to activate them:
B4X:
export home="/home/YOUR_USER_NAME"
alias b4jlin="/home/YOUR_USER_NAME/Linuxify/runme.sh"
- Using the text editor, create shell script /home/YOUR_USER_NAME/Linuxify/runme.sh:
B4X:
#!/bin/bash
CURDIR=$PWD
cd /home/YOUR_USER_NAME/Linuxify/temp/build/bin
./java @release_java_modules.txt -Dglass.win.uiScale=100% -m b4j/com.linuxify.main $CURDIR
exit 0
- Make the shell script executable:
B4X:
chmod u+x /home/YOUR_USER_NAME/Linuxify/runme.sh
- Now you're ready to use Linuxify

Usage (on native Linux, i.e. not under Wine):
- Navigate to the directory to which your program's jar and packager.json' files were copied with CopyFilesForLinuxify:
B4X:
cd /home/YOUR_USER_NAME/Documents/B4Jprograms/YOUR_PROGRAMS_DIRECTORY

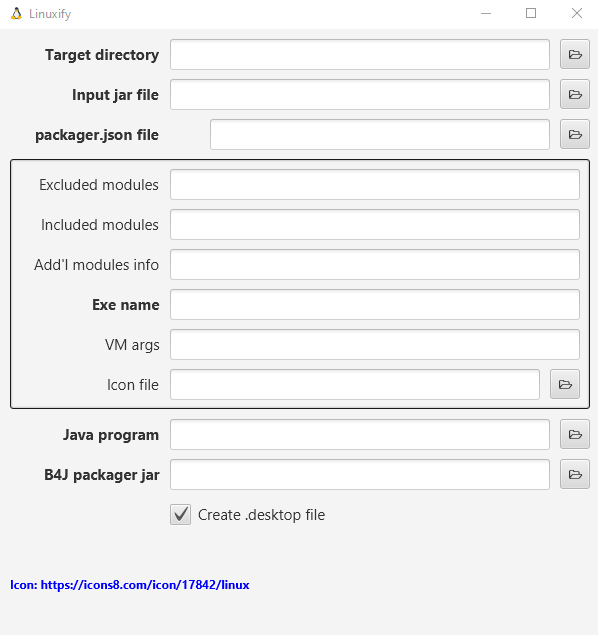

- Start Linuxify and fill out the necessary data:
B4X:
b4jlin
- Hover the mouse over the views for tooltips
- Click the 'Process' button (it appears once all required data have been entered/selected) to produce your 'linuxified' program
- You'll be able to follow the processing in the TextArea that will appear
- When processing is completed, the 'OK' button appears; click it to hide the TextArea
- The 'Target directory' you have chosen (the default is /home/YOUR_USER_NAME/Documents/B4Jprograms/YOUR_PROGRAM'S_DIRECTORY) will now contain all the required files; cd to it and use './run.command' to start your program

linuxify screenshot.PNG


*** Android SDK Manager ***
As stated on the B4X site, the SDK Manager is no longer needed. However, if you still want/need to use it, here's how to get it to work:

-
B4X:
cp '/home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/Program Files (x86)/Anywhere Software/Basic4android/B4ASdkManager.jar' '/home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/java/jdk-11.0.1/bin'

- NOTE: the default installation folder for the 64-bit versions of B4A and B4J is 'Program Files' while the 32-bit versions use 'Program Files (x86)'. Modify the aforementioned path as appropriate, if applicable.

- Now you can run the SDK Manager with these commands, NOT from within the B4A IDE (Note: sdkmanager.bat is at: C:\android\tools\bin\sdkmanager.bat):
B4X:
cd /home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/java/jdk-11.0.1/bin
WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" wine ./java.exe -Xmx1G -Dprism.order=j2d --module-path ../javafx/lib/ --add-modules=javafx.fxml,javafx.controls -jar ./B4ASdKManager.jar

- If you prefer a desktop icon to double-click, use Text Editor to create a file (give it extension '.desktop') in /home/YOUR_USER_NAME/Desktop with the following contents:
B4X:
[Desktop Entry]
Name=B4A SDK Mgr
Exec=env WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" wine-stable C:\\\\windows\\\\command\\\\start.exe /Unix ./java.exe -Xmx1G -Dprism.order=j2d --module-path ../javafx/lib/ --add-modules=javafx.fxml,javafx.controls -jar ./B4ASdKManager.jar
Type=Application
StartupNotify=true
Path=/home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/java/jdk-11.0.1/bin
Icon=4732_B4A.0
Name[en_US]=B4A SDK Mgr

*** Useful tips ***
- If you don't like the IDE font under Wine, you can change it via Tools->IDE Options->Font Picker.

- Robocopy isn't available for Linux/Wine, so if the CustomBuildAction with Robocopy is present in your project, you'll have to turn it into a comment or replace it with something else. As xcopy.exe does exist in the Wine environment, these lines could be used in a B4XPages project (update the xcopy options "/..." with the ones you prefer):
B4X:
#CustomBuildAction: folders ready, %WINDIR%\System32\xcopy.exe,"..\..\Shared Files" "..\Files" /C /E /F /H /K /R /Y
'Ctrl + click to sync files: ide://run?file=%WINDIR%\System32\xcopy.exe&args=..\..\Shared+Files&args=..\Files&args=/C&args=/E&args=/F&args=/H&args=/K&args=/R&args=/Y&FilesSync=True

- If you run across the error relating to GLXBadFBConfig when running B4A or B4J, run this in a terminal window (error detail here - thanks to @TheJinJ for this hint):
B4X:
export MESA_GL_VERSION_OVERRIDE=4.5

- Designer works fine in both B4A and B4J, but the WYSIWYG Designer window is completely black (apart from the title bar).

- To use B4X Localizator in a #CustomBuildAction , see this post (thank you, @Ivan Aldaz)

- [B4A] Under Wine, 'Documents' is 'My Documents' (when you use paths in e.g. #CustomBuildActions or in your code).

- [B4J] I've increased the process timeout in my B4J IDE (Tools->IDE Options->Configure Process Timeout) to 600 seconds. Use whatever value suits you best; if a compilation or standalone package build fails with 'process timed out' and you're certain that no process is hanging, increase that value.

- [B4J] If (like I have) a B4J program, running from within the IDE or externally to the IDE under Wine, apparently uses a Greek-looking font (which is actually the 'Standard Symbols' font), see here for a quick fix: https://www.b4x.com/android/forum/t...m-the-ide-uses-greek-font.148952/#post-944544

- [B4J] Msgbox text sometimes seems to be truncated after a couple of lines. I didn't find a solution to this, so here's a workaround I use when I know a long text will have to be displayed:
B4X:
' Was created because at least OpenJDK Java 11 64bit on Linux truncates the MsgBox text (both fx and XUI) after 2 or 3 lines.
' Requires library 'XUI Views'.
' Returns a ResumableSub object.
' Usage:
'     Wait For(MsgBoxLongText(MainForm, 500dip, 300dip, "This is the text", "Here is the title", "Yes", "No", "Cancel", xui.Color_Red)) Complete (result As Int)
'     If Result = xui.DialogResponse_Positive Then ...
Public Sub MsgBoxLongText(frm As Form, width As Int, height As Int, msg As String, title As String, positiveBtnText As String, negativeBtnText As String, cancelBtnText As String, borderColour As Int) As ResumableSub

    Dim fnt14 As B4XFont = xui.CreateDefaultFont(14)
    Dim LongTextTemplate As B4XLongTextTemplate
    Dim dlg As B4XDialog

    dlg.Initialize(frm.RootPane)
    dlg.BackgroundColor = xui.Color_LightGray
    dlg.BlurBackground = True
    dlg.BorderColor = borderColour ' Edit 2021-09-22 - was: "IIf(borderColour < 0, xui.Color_Red, borderColour)", but most XUI.Color_... values are negative
    dlg.ButtonsColor = xui.Color_White
    dlg.ButtonsFont = fnt14
    dlg.ButtonsTextColor = xui.Color_Black
    dlg.Title = title
    dlg.TitleBarColor = xui.Color_White
    dlg.TitleBarFont = fnt14
    dlg.TitleBarTextColor = xui.Color_Black

    LongTextTemplate.Initialize
    LongTextTemplate.Resize(IIf(width > 0, width, 500dip), IIf(height > 0, height, 300dip))
    LongTextTemplate.Text = msg

    Wait For (dlg.ShowTemplate(LongTextTemplate, positiveBtnText, negativeBtnText, cancelBtnText)) Complete (Result As Int)
    Return Result

End Sub

- As my laptop CPU is an AMD Ryzen and the system had intermittently frozen several times while running the IDE-internal B4J packager (this is an issue with Linux and the CPU, not with B4J or Java) I followed the instructions on https://easylinuxtipsproject.blogspot.com/p/bugs.html#ID27 (I could not do the first one as my BIOS config didn't seem to contain the 'PSU Idle Control' option), i.e.:
B4X:
apt install git && git clone git://git.kernel.org/pub/scm/linux/kernel/git/firmware/linux-firmware.git && sudo cp -v -u linux-firmware/amdgpu/* /lib/firmware/amdgpu && sudo update-initramfs -uk all
xed admin:///etc/default/grub
[change the line <GRUB_CMDLINE_LINUX=""> to <GRUB_CMDLINE_LINUX="idle=nomwait"> and save the file]
sudo update-grub
sudo reboot
We're a couple of weeks later now, and the PC hasn't been freezing up anymore.

EDITS:
- 2024-09-15: added xcopy alternative suggestions for Robocopy in 'Useful tips'
- 2023-07-16: added a font-related tip to 'Useful tips'
- 2023-06-26: enhanced steps 3 (useful in case a certain error occurs), 9 (small change), and 12 (small change)
- 2023-02-08: added a warning about Wine 8.0.0 in section 'Making it work'
- 2022-07-06: small changes that don't affect the overall instructions
- 2022-06-26: added the 'Screen resolution' value change to step 3 (it will cause the B4J WYSIWYG Designer to be displayed properly)
- 2022-05-23: enhanced sections 'Compiling and running your programs' and 'A semi-automated way to get your B4J UI programs ready' to differentiate the B4J UI programs approach between systems that have/don't have Java installed
- 2022-05-02: added notes about the default B4X installation folders that changed with the arrival of the 64-bit versions
- 2022-03-13: added info about using B4X Localizator in a #CustomBuildAction to 'Useful tips'
- 2022-02-08: added comment about the GLXBadFBConfig error to 'Useful tips'
- 2021-11-15: added comment about Robocopy to 'Useful tips'
- 2021-09-30: added section 'A semi-automated way to get your B4J UI programs ready' and the attached projects
- 2021-09-30: in some references to file '.bashrc', the dot was omitted
- 2021-09-22: small correction in the 'MsgBoxLongText' Sub


Attachments

  • linuxify screenshot.PNG
    linuxify screenshot.PNG
    21.1 KB · Views: 693
  • linuxify screenshot.PNG
    linuxify screenshot.PNG
    21.1 KB · Views: 633
  • CopyFilesForLinuxify.zip
    3.1 KB · Views: 635
  • Linuxify.zip
    26.3 KB · Views: 616
Last edited:

walt61

Active Member
Licensed User
Longtime User
Hi John,

Several things are wrong with that one (but more in general, please see below too):
- Don't declare a variable called 'Main'; the 'Main' module will still exist as an Activity module
- In Class_Globals, declare 'Public MainPage As B4XMainPage'
- In B4XPage_Created, use 'B4XMainPage = B4XPages.MainPage'
- But actually I don't see the need to declare this variable, just use 'B4XPages.MainPage' wherever you want to reference that page
- I have no idea about the 'zombie' modules, sorry

That said, this one was really off-topic for this thread and should have been posted in the B4A questions forum. Please start new threads there in case you'd have other B4A/B4Xpages-related questions, as people who are active in the B4A forums are not necessarily looking at the B4J ones, and the question wouldn't (and shouldn't) be addressed to one user. It will also help others to find solutions to their questions in the appropriate forums :)


johnaaronrose

Active Member
Licensed User
Longtime User
Hi John,

Several things are wrong with that one (but more in general, please see below too):
- Don't declare a variable called 'Main'; the 'Main' module will still exist as an Activity module
- In Class_Globals, declare 'Public MainPage As B4XMainPage'
- In B4XPage_Created, use 'B4XMainPage = B4XPages.MainPage'
- But actually I don't see the need to declare this variable, just use 'B4XPages.MainPage' wherever you want to reference that page
- I have no idea about the 'zombie' modules, sorry

That said, this one was really off-topic for this thread and should have been posted in the B4A questions forum. Please start new threads there in case you'd have other B4A/B4Xpages-related questions, as people who are active in the B4A forums are not necessarily looking at the B4J ones, and the question wouldn't (and shouldn't) be addressed to one user. It will also help others to find solutions to their questions in the appropriate forums :)
Hi Walt,
Your idea didn't work: it gave a compile error. I tried some modifications to it without success. I eventually did in each module where I wanted to refer to the B4XMainPage:
B4X:
Dim MainPage As B4XMainPage
in Class_Globals
and
B4X:
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("choose")
    MainPage = B4XPages.GetPage("B4XMainPage")
Then I was able to use MainPage successfully (at least as far as the compiler is concerned) in the module.
I prefer to do this method rather than the amended one you suggested since using B4XPages.GetPage("B4XMainPage"), each time a reference is required, is rather long winded, and since B4XPages.B4XMainPage generates a compile error.
I take your point about my post being off-topic for this thread and have created a new topic for the possible bugs re remove a module at https://www.b4x.com/android/forum/threads/possible-bug-s-when-removing-a-module.138231/

Last edited:

TheJinJ

Active Member
Licensed User
Longtime User
Excellent tutorial, thanks!

If you run across the error relating to GLXBadFBConfig when running B4A or B4J, run this in the command line

export MESA_GL_VERSION_OVERRIDE=4.5

Error detail here

Could set this in bashrc or /etc/environment but it causes issues with Chrome which doesn't like that version of GL.

Set the command of the desktop icon
env MESA_GL_VERSION_OVERRIDE=4.5 WINEPREFIX="/home/[USER]/virtualwinedrives/b4x64" wine C:\\users\\Public\\Desktop\\B4J.lnk

Last edited:

johnaaronrose

Active Member
Licensed User
Longtime User
@walt61 I've now decided to use B4J for initial development of an Android app as recommended in the B4XPages booklet. All Ok in your tutorial up to step 21. I've downloaded B4JPackager11 from https://www.b4x.com/android/forum/t...the-simplest-way-to-distribute-ui-apps.99835/ Ok. But your step 21 says to compile it. AFAIK that website doesn't give explicit instructions on how to do this. I'm not a java person, so please pardon my ignorance. How should it be compiled in order to create B4JPackager11.jar? I tried using B4J to compile B4JPackager11.b4j but it gave an error on line 152, presumably "File.Copy(InputJar, "", TempFolder, "jar.jar")" :

B4X:
Waiting for debugger to connect...
Program started.
B4JPackager11 Version 1.21
Exe name: B4R_Serial_Connector.exe
InputJar: C:\Users\H\Downloads\projects\B4R_Serial_Connector\Objects\B4R_Serial_Connector.jar
Error occurred on line: 152 (Main)
java.io.FileNotFoundException: C:\Users\H\Downloads\projects\B4R_Serial_Connector\Objects\B4R_Serial_Connector.jar (Path not found)

Could you also tell me what Linuxify does as I must have missed that in your tutorial?

PS I've also had the freeze problem using B4A with my Ryzen desktop. I also didn't see the "PS Idle Control' from within the AMD Megatrends BIOS screens. Crossed fingers!


Attachments

  • B4JPackager11Log.txt
    1.9 KB · Views: 299
Last edited:

walt61

Active Member
Licensed User
Longtime User
Hi @johnaaronrose , that's a run-time error, not a compiler error: the compilation went fine (otherwise there would be a second window with the compiler errors) and then B4J runs the jar. The program needs to be fed certain command line arguments which aren't there (because B4J just runs it 'as is') and that's the error you're seeing. You'll find B4JPackager11.jar in the Objects subdirectory of your B4JPackager11 project directory.

Regarding Linuxify: check out section 'Compiling and running your programs': it describes how to run the B4X programs on Linux. Linuxify helps by automating several of these actions so they become just a couple of clicks :)


johnaaronrose

Active Member
Licensed User
Longtime User
@walt61 should have mentioned that I already checked all folders & sub-folders within my B4JPackager11 project directory for the B4JPackager.jar file. Am I correct in stating that the B4JPackager11.jar file is always the same for any user? If so, could you reply with an attachment of the B4JPackager11.jar file?


johnaaronrose

Active Member
Licensed User
Longtime User
@walt61 Thanks for that B4JPackager11.jar which I downloaded & copied to my B4X directory. Now having a problem with compile & run of CopyFilesForLinuxify as per attached Log:
B4X:
Expected 3 or 4 arguments, not 0: Linux_top_directory_for_B4J_projects jarname_without_extension delete_temp_folder_Y_or_N [icon_file_path]
Again, there is no .jar file or packager.json file. Any ideas?


Attachments

  • B4JCopyFilesForLinuxifyLog.txt
    193 bytes · Views: 283

johnaaronrose

Active Member
Licensed User
Longtime User
@johnaaronrose it sounds like something's fundamentally wrong (or misunderstood). Perhaps I'm preaching to the choir, but did you try something like (perhaps even with sudo)
B4X:
find / -iname "CopyFilesForLinuxify.jar"
to see if/where it shows up?
It doesn't show up. I think that the problem is that the line for "alias b4jpkg" in .bashrc wants the packager.json file and I haven't got that file. Could you send me the file?


johnaaronrose

Active Member
Licensed User
Longtime User
Yo
Got it; just thought of this and your txt file attachment confirms it: you're compiling in debug mode. Compile in release mode and you'll see the jar.
You were correct about changing B4J from Debug to Release mode.
In step 1 of '**** A semi-automated way to get your B4J UI programs ready ****', B4J Compile&Run of CopyFilesForLinux project also needs Release mode to create CopyFilesForLinux.jar file. However, no packager.json file created then. So I did step1 of '*** Compiling and running your programs ***' which created packager.json. However, when I look at that file, it seems very short. I've shown it below. If it looks longer than mine, could you send it to me.
B4X:
{
  "InputJar": "Z:\\home\\john\\Documents\\B4XProjects\\CopyFilesForLinuxify\\Objects\\CopyFilesForLinuxify.jar"
}

Last edited:

walt61

Active Member
Licensed User
Longtime User
CopyFilesForLinuxify itself doesn't need a 'packager.json', it only needs the jar as there's no need for packaging that program since it doesn't make sense to run it standalone (it's only useful in a #CustomBuildAction). Notice that 'packager.json' is created when you use menu Project -> Build Standalone Package, not when just compiling.


johnaaronrose

Active Member
Licensed User
Longtime User
I seem to be going backwards. I've now installed the B4J stuff. But when I try to a B3A Compile&Run, all my projects compile without errors but on installation to my phone:
B4X:
Signing package file (private key).    (1.19s)
Installing file to device.    Error
adb.exe F 02-25 10:15:29   261   262 sysdeps_win32.cpp:2743] _wenviron is not set, did you link with -municode?

Here's details re adb:

B4X:
john@desktop:~$ adb version
Android Debug Bridge version 1.0.40
Version 28.0.2-5303910
Installed as /home/john/B4X/platform-tools/adb
john@desktop:~$ alias
alias adb='/home/john/B4X/platform-tools/adb'
alias alert='notify-send --urgency=low -i "$([ $? = 0 ] && echo terminal || echo error)" "$(history|tail -n1|sed -e '\''s/^\s*[0-9]\+\s*//;s/[;&|]\s*alert$//'\'')"'
alias b4jpkg='/home/john/B4X/java/jdk-11.0.1/bin/java -jar /home/john/B4X/B4JPackager11.jar packager.json'
alias egrep='egrep --color=auto'
alias fgrep='fgrep --color=auto'
alias grep='grep --color=auto'
alias l='ls -CF'
alias la='ls -A'
alias ll='ls -alF'
alias ls='ls --color=auto'
john@desktop:~$ cat .bashrc|tail
# Start the Linux version of adb by just typing 'adb'
alias adb='/home/john/B4X/platform-tools/adb'

# Start the Linux B4Jpackager by just typing 'b4jpkg'
# Note: this assumes that 'packager.json' is present in the current working directory and was properly edited
alias b4jpkg='/home/john/B4X/java/jdk-11.0.1/bin/java -jar /home/john/B4X/B4JPackager11.jar packager.json'

# Ensure CustomBuildActions will recognise '%windir%'
export windir="c:\windows"

john@desktop:~$

Last edited:

walt61

Active Member
Licensed User
Longtime User
Did you install BOTH adb versions (the Linux and Windows ones) as per steps 24 AND 25? You can also test whether adb is working as expected as described in step 30.

Failing that, perhaps someone else can/will chime in, but the only place I've seen that error is where the adb version is being mentioned. What I would do (and that's really the only comment I can offer) is see if there are any other files called 'adb' on your system (besides the 2 expected ones), rename them, and try again, to make sure that B4A is indeed using version 1.0.40 (and, if not, would after the renames report something like 'can't find adb' or so)?


Ivan Aldaz

Member
Licensed User
Longtime User
Hi

First things first: thanks @walt61 and @Mihai Rainer Jr. for your work.

At last I've managed to install and run B4A on Linux, with your tutorial, but there's one thing I need in my app that I couldn't make it work with #CustomBuildAction: B4A Localizator. No problem on Windows, of course, but on Linux no matter the thousand ways I've tried. Then I thought I could try doing something like you did in the "Android SDK Manager" section, but adapting it to B4A Localizator, and... incredibly.... I got it! :cool:

(pay attention to the length of the 4th line, and remember to write \\\\ instead of \ in the paths)

B4ALocalizator.desktop:
#!/usr/bin/env xdg-open

[Desktop Entry]
Name=B4ALocalizator
Exec=env WINEPREFIX="/home/YOUR_USER_NAME/virtualwinedrives/b4x64" wine C:\\\\windows\\\\command\\\\start.exe /Unix ./java.exe -Xmx1G -Dprism.order=j2d --module-path ../javafx/lib/ --add-modules=javafx.fxml,javafx.controls -jar c:\\\\B4XLOCALIZATOR-CONVERTER_FILE_PATH\\\\B4XLocalizator-converterXLSXtoDB.jar C:\\\\YOUR_LANGUAGES.XLSX_FILE_PATH\\\\languages.xlsx C:\\\\YOUR_B4APROJECT_FILES_PATH\\\\languages.db
Type=Application
StartupNotify=true
Path=/home/YOUR_USER_NAME/virtualwinedrives/b4x64/drive_c/java/jdk-11.0.1/bin
Icon=4732_B4A.0
Name[es_ES]=B4ALocalizator

Create an empty document by right clicking somewhere on the desktop, copy and paste this text, writing the correct paths to your files, and name it adding ".desktop" extension

I recommend to put the file or a shortcut to it in the desktop, to make it easier and faster to run everytime the file changes

I think this method can also be used to make Robocopy work on Linux, and tried to do it in serveral ways, but no luck. Perhaps somebody with better skills than me (not difficult ?) can do it...

Best regards


Ivan Aldaz

Member
Licensed User
Longtime User
I copied the Robocopy.exe file from the "c:/Windows/System32" folder in Windows installation to the ".../virtualwinedrives/b4x64/drive_c/windows/system32" directory in Linux. I thought this could be enough, but seems not...

Last edited:
Top
