B4J Tutorial [BANanoWebix] Lesson 7: Charts - Part 1

Discussion in 'B4J Tutorials' started by Mashiane, Jun 19, 2019.

  1. Mashiane

    Mashiane Expert Licensed User

    Ola

    Fork it here...

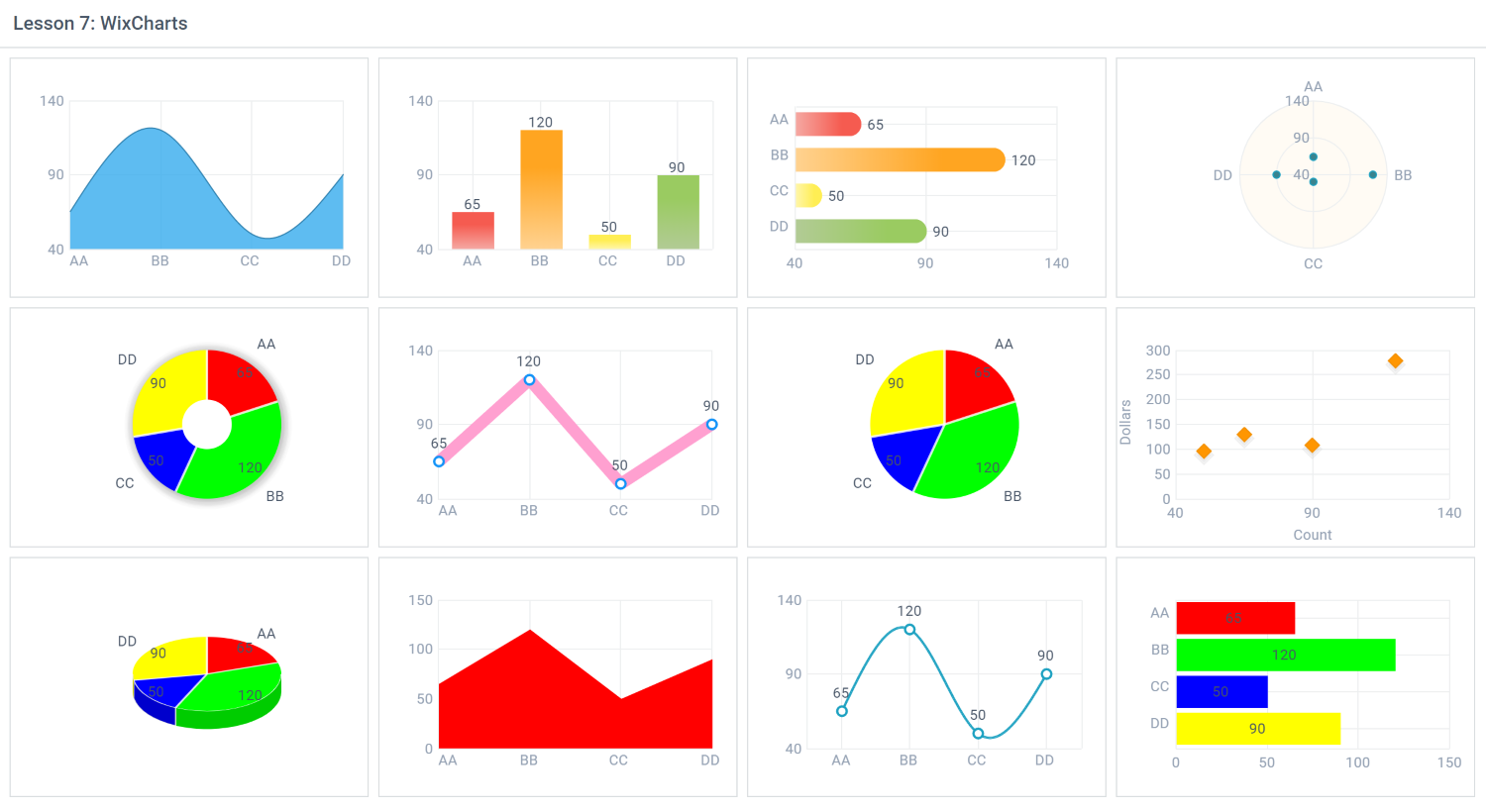

    Let me close off today with Lesson 7, that deals with the charts. Depicted here is not everything there is though. We will deal with mutliple type charts on same chart, series charts and setting legends in Part 2.


    As you might have guessed, by just setting the 'type' attribute of the WixElement to the chart you need and setting the 'data' attribute, you have different types of charts.

    This is the chart data we are using across all these charts we have specified.

    Code:
    Dim chartData As List
        chartData.Initialize
        chartData.Add(CreateMap(
    "count" : 65"dollars" : 130"color" : "#ff0000""type" : "AA"))
        chartData.Add(CreateMap(
    "count" : 120"dollars" : 280"color" : "#00ff00""type" : "BB"))
        chartData.Add(CreateMap(
    "count" : 50"dollars" : 98"color" : "#0000ff""type" : "CC" ))
        chartData.Add(CreateMap(
    "count" : 90"dollars" : 110"color" : "#ffff00""type" : "DD"))
    So to draw each chart we use basically .SetValue("#count#").SetColor("#color#").SetLabel("#type"#) and then the chart type e.g. .SetChartTypeSpLine("") or .SetChartBar("")

    That is basically all.

    Some charts have different properties that you can set for more details see from the webix website.

    Last edited: Jun 19, 2019
    aeric, Anser and Roberto P. like this.
  2. Mashiane

    Mashiane Expert Licensed User

    Charts on R1

    Code:
    'area chart
        R1.AddColumns(CreateMap("width":10))

    Dim wchart As WixChart
        wchart.Initialize(
    "").SetTypeSpLineArea("").SetValue("#count#").SetLabel("#count#").SetWidth(300).SetHeight(200).SetData(chartData)
        wchart.SetColor(
    "#36abee").SetAlpha(0.8).SetXAxisTemplate("#type#").SetTooltipTemplate("#count#").SetBorder(True)
        R1.AddColumns(wchart.Item)

    '
        'bar chart
        R1.AddColumns(CreateMap("width":10))

    Dim w1 As WixChart
        w1.Initialize(
    "").SetTypeBar("").SetValue("#count#").SetLabel("#count#").SetWidth(300).SetHeight(200).SetData(chartData)
        w1.SetBarWidth(
    35).SetRadius(0).SetGradientFalling("").SetXAxisTemplate("#type#")

    '.SetGradient("3d")
        R1.AddColumns(w1.Item)

    '
        'horizontal bar
        R1.AddColumns(CreateMap("width":10))

    Dim w2 As WixChart
        w2.Initialize(
    "").SetTypeBarH("").SetValue("#count#").SetLabel("#count#").SetWidth(300).SetHeight(200).SetData(chartData)
        w2.SetBarWidth(
    20).SetRadius(10).SetGradient("falling").SetPadding(40).SetYAxisTemplate("#type#")
        R1.AddColumns(w2.Item)

    '
        'radar chart
        R1.AddColumns(CreateMap("width":10))

    Dim wa As WixChart
        wa.Initialize(
    "").SetTypeRadar("").SetValue("#count#").SetWidth(300).SetHeight(200).SetData(chartData)
        wa.SetDisableLines(
    True).SetXAxisTemplate("#type#").SetYAxisLineShape("arc").SetYAxisBG("#fffbf4")
        wa.SetTooltipTemplate(
    "#count#").SetItemBorderWidth(0).SetItemColor("#3a838e").SetItemRadius(2)
        R1.AddColumns(wa.Item)
        R1.AddColumns(CreateMap())

  3. Mashiane

    Mashiane Expert Licensed User

    Charts on R2

    Code:
    'donut chart
        R2.AddColumns(CreateMap("width":10))

    Dim w3 As WixChart
        w3.Initialize(
    "").SetTypeDonut("").SetValue("#count#").SetColor("#color#").SetLabel("#type#").SetData(chartData).SetShadow(20)
        w3.SetWidth(
    300).SetHeight(200).SetPieInnerText("#count#")
        R2.AddColumns(w3.Item)

    '
        'line chart
        R2.AddColumns(CreateMap("width":10))

    Dim w4 As WixChart
        w4.Initialize(
    "").SetTypeLine("").SetValue("#count#").SetLabel("#count#").SetWidth(300).SetHeight(200).SetData(chartData)
        w4.SetLineColor(
    "#ffa0d0").SetLineWidth(10).SetXAxisTemplate("#type#").SetOffSet(0)
        w4.SetItemBorderColor(
    "#1293f8").SetItemColor("#ffffff")
        R2.AddColumns(w4.Item)

    '
        'pie chart
        R2.AddColumns(CreateMap("width":10))

    Dim w5 As WixChart
        w5.Initialize(
    "").SetTypePie("").SetValue("#count#").SetPieInnerText("#count#").SetLabel("#type#").SetColor("#color#").SetWidth(300).SetHeight(200).SetData(chartData)

    'w5.SetShadow(20).SetLegend(90,"right")
        R2.AddColumns(w5.Item)

    '
        'scatter chart
        R2.AddColumns(CreateMap("width":10))

    Dim wb As WixChart
        wb.Initialize(
    "").SetTypeScatter("").SetValue("#dollars#").SetXValue("#count#").SetWidth(300).SetHeight(200).SetData(chartData)
        wb.SetXAxisTitle(
    "Count").SetYAxisTitle("Dollars")
        wb.SetItemBorderColor(
    "#f38f00")
        wb.SetItemBorderWidth(
    1)
        wb.SetItemRadius(
    5)
        wb.SetItemTypeDiamond(
    "")
        wb.SetItemColor(
    "#ff9600")
        wb.SetItemShadow(
    True)
        R2.AddColumns(wb.Item)
        R2.AddColumns(CreateMap())
    As noted on the scatter chart, we set the 'item' properties. This is how each item plotted should appear, for example, it should be a diamond, must have a shadow etc etc.

  4. Mashiane

    Mashiane Expert Licensed User

    Charts on R3

    Code:
    'pie3D chart
        Dim R3 As WixRow
        R3.Initialize(
    "")
        R3.AddColumns(CreateMap(
    "width":10))

    Dim w6 As WixChart
        w6.Initialize(
    "").SetTypePie3D("").SetValue("#count#").SetLabel("#type#").SetColor("#color#").SetWidth(300).SetHeight(200).SetData(chartData)
        w6.SetPieInnerText(
    "#count#")
        R3.AddColumns(w6.Item)

    '
        'stacked area
        R3.AddColumns(CreateMap("width":10))

    Dim w7 As WixChart
        w7.Initialize(
    "").SetTypeStackedArea("").SetValue("#count#").SetLabel("#count#").SetColor("#color#").SetWidth(300).SetHeight(200).SetData(chartData)
        w7.SetXAxisTemplate(
    "#type#")
        R3.AddColumns(w7.Item)

    '
        'spline chart
        R3.AddColumns(CreateMap("width":10))

    Dim w8 As WixChart
        w8.Initialize(
    "").SetTypeSpline("").SetValue("#count#").SetLabel("#count#").SetColor("#color#").SetWidth(300).SetHeight(200).SetData(chartData)
        w8.SetXAxisTemplate(
    "#type#")
        R3.AddColumns(w8.Item)

    '
        '
        'stacked horizontal bar
        R3.AddColumns(CreateMap("width":10))

    Dim w9 As WixChart
        w9.Initialize(
    "").SetStackedBarH("").SetValue("#count#").SetLabel("#count#").SetColor("#color#").SetWidth(300).SetHeight(200).SetData(chartData)
        w9.SetRadius(
    10).SetShadow("falling").SetYAxisTemplate("#type#")
        R3.AddColumns(w9.Item)
        R3.AddColumns(CreateMap())
    As you might have noted, almost the same properties are being set here for the charts. In one example on the previous post, we showed how to set the xaxis and yaxis labels. The charts can also be exported to PNG with online functionality.

    #HelpingOthers2Succeed

    joulongleu likes this.
