Android Question Error creating new AVD

[AnandGupta]

After many months I sat to create an app in B4X in my new laptop. Tried to create an avd. Got below error


Never saw such error in past. Any advise on fixing it ?



[Erel]

Not sure, however if the emulator is critical for you then you can use Android Studio to create the AVD and it will work fine with B4A.



[AnandGupta]

Not sure, however if the emulator is critical for you then you can use Android Studio to create the AVD and it will work fine with B4A.

Is there any command line to create the avd from the existing android tools in B4X, instead of installing full Android Studio ?



[teddybear]

Is there any command line to create the avd from the existing android tools in B4X, instead of installing full Android Studio ?

Yes, you can use the sdkmanager and avdmanager do that without Android Studio .



[AnandGupta]

Yes, you can use the sdkmanager and avdmanager do that without Android Studio .

Original error is from avd manager.



[teddybear]

Original error is from avd manager.

These are commands I used in the command line.

sdkmanager --sdk_root=D:\android --install "emulator"
sdkmanager --sdk_root=D:\android "system-images;android-36;google_apis;x86_64"
avdmanager create avd --force --name MyEmu36 --package "system-images;android-36;google_apis;x86_64"
emulator -avd MyEmu36

It works for me.



[AnandGupta]

sdkmanager --sdk_root=D:\android --install "emulator"
sdkmanager --sdk_root=D:\android "system-images;android-36;google_apis;x86_64"
avdmanager create avd --force --name MyEmu36 --package "system-images;android-36;google_apis;x86_64"
emulator -avd MyEmu36

It works for me.

View attachment 172626

Thanks for help

Got this error

Microsoft Windows [Version 10.0.26200.8875]
(c) Microsoft Corporation. All rights reserved.

e:\Android\emulator>emulator -avd MyEmu36
INFO         | Android emulator version 36.6.11.0 (build_id 15507667) (CL:N/A)
INFO         | Graphics backend: gfxstream
INFO         | AVD MyEmu36 has path C:\Users\Anand\.android\avd\..\avd\MyEmu36.avd
INFO         | trying to check whether e:\Android is a valid sdk root
WARNING      | e:\Android\Android-old\system-images\android-36\google_apis\x86_64\ is not a valid directory.
WARNING      | emulator has searched the above paths but found no valid sdk root directory.
FATAL        | Cannot find AVD system path. Please define ANDROID_SDK_ROOT

There is no "e:\Android\Android-old\" in my machine only "e:\Android\"
Something maybe wrong in my setup. I think I may have to re-install B4A and check again.



[teddybear]

I don't think you have to re-install B4A.

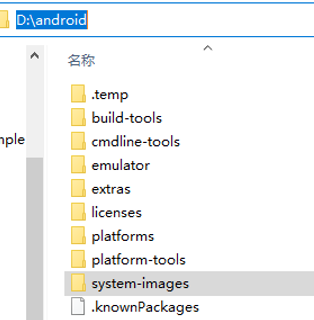

show your sdk folder.
it looks like this

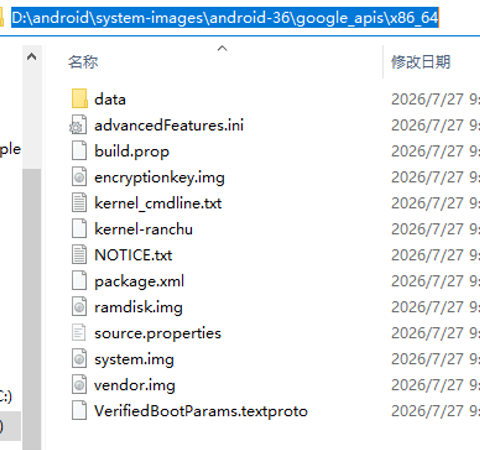

also show the system-images folder



[AnandGupta]

Thanks for help. These are my folders

See if it helps is finding the problem. I will be grateful.



[teddybear]

Enter the folder C:\Users\Anand\.android\avd\MyEmu36.avd.
Edit the config.ini file, and find and replace the entry image.sysdir.1 as below

'Change this-- remove Android-old\
image.sysdir.1 = Android-old\system-images\android-36\google_apis\x86_64\
'To
image.sysdir.1 = system-images\android-36\google_apis\x86_64\

and then try

emulator -avd MyEmu36



[AnandGupta]

Enter the folder C:\Users\Anand\.android\avd\MyEmu36.avd.
Edit the config.ini file, and find and replace the entry image.sysdir.1 as below

'Change this-- remove Android-old\
image.sysdir.1 = Android-old\system-images\android-36\google_apis\x86_64\
'To
image.sysdir.1 = system-images\android-36\google_apis\x86_64\

and then try

emulator -avd MyEmu36

Thanks a lot for your guidance and help.

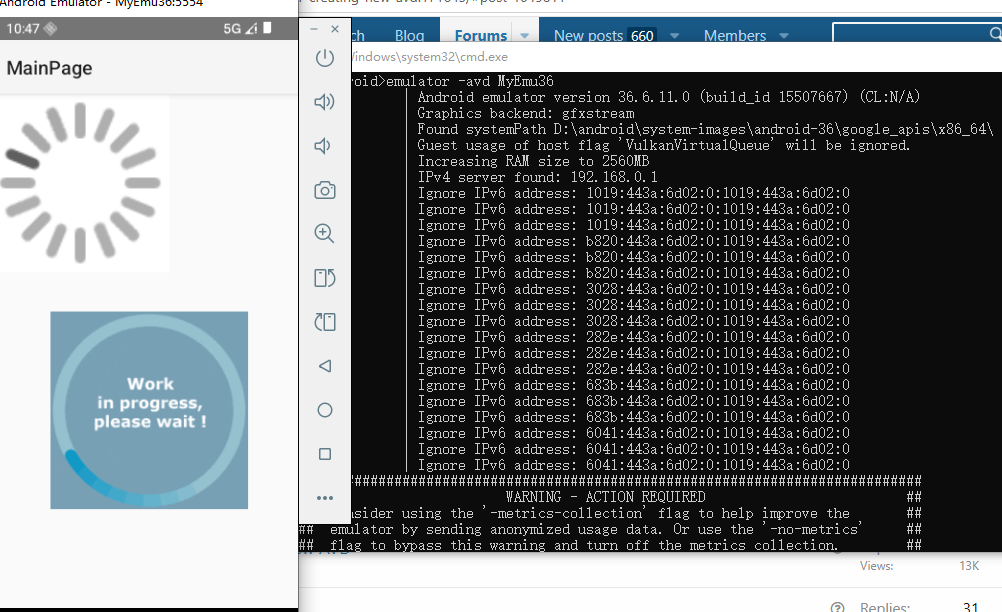

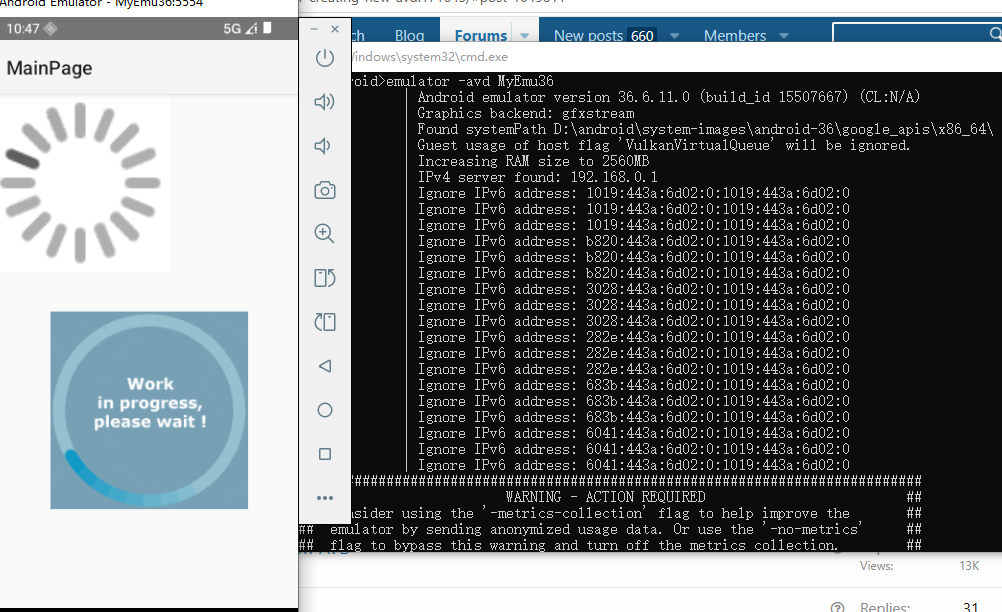

Emulator running now (without installing Android Studio )



BTW got this error after emulator start

Detected ADB
---------------------------
Could not automatically detect an ADB binary. Some emulator functionality will not work until a custom path to ADB  is added. This can be done in Extended Controls (...) > Settings > General tab > 'Use detected ADB location'

And these are few warnings in the cmd box

WARNING      | Failed to process .ini file C:\Users\Anand\.android\avd\..\avd\MyEmu36.avd\quickbootChoice.ini for reading.
WARNING      | The emulator now requires a signed jwt token for gRPC access! Use the -grpc flag if you really want an open unprotected grpc port
WARNING      | Device 'cache' does not have the requested snapshot 'default_boot'
WARNING      | Failed to load snapshot 'default_boot'

I am ignoring them now.
