B4i Library [module] Charts Framework

Discussion in 'iOS Libraries' started by Erel, Nov 6, 2014.

  1. Erel

    Erel Administrator Staff Member Licensed User

    Attached Files:

    luke2012 likes this.
  2. imbault

    imbault Well-Known Member Licensed User

    Sorry @Erel , I've put that code in the end of Application_Start,
    GraphPanel is a panel created in the page designer, and impossible to see anything, what am I doing wrong?
    in

    Process_Globals

    Code:
    Dim LD As LineData
    Dim G As Graph

    Dim GraphPanel As Panel

    end of Application_Start
    Code:
    TemperatureUnits = "F"

    LD.Initialize

    LD.Target = GraphPanel
    Charts.AddLineColor(LD,
    Colors.Red) 'First line color

    G.Initialize

    G.Title =
    "Brew Kettle Temperature History"
    G.XAxis =
    "Time"

    If TemperatureUnits = "F" Then
        G.YAxis =
    "Deg. F"
        G.YStart =
    0
        G.YEnd =
    225
        G.YInterval =
    25
    Else If TemperatureUnits = "C" Then
        G.YAxis =
    "Deg. C"
        G.YStart =
    0
        G.YEnd =
    110
        G.YInterval =
    10
    End If

    G.AxisColor =
    Colors.Black



    G.AxisColor =
    Colors.Black

    Thx

    Patrick

    Last edited: Apr 26, 2015
  3. Erel

    Erel Administrator Staff Member Licensed User

    Can you upload your project?

  4. imbault

    imbault Well-Known Member Licensed User

    Send to you via email,

    Thx a lot @Erel

  5. Andrew Lindsay

    Andrew Lindsay Member Licensed User

    Can you please share your resolution to this?

  6. Taha

    Taha Member Licensed User

    Great but two fingers zoom is missing ;)

    f0raster0 likes this.
  7. JanPRO

    JanPRO Well-Known Member Licensed User

    Hi,

    you can try narek's ImageZoom library, here is a modified CreatePieTab sub from the example:
    Code:
    Sub CreatePieTab
        pnlPie.Initialize(
    "pnlPie")
        pnlPie.Height =
    100%Y
        pnlPie.Width =
    100%X

    'pagePie.RootPanel.AddView(pnlPie, 0, 0, 100%x, 100%y)
        Dim PD As PieData
        PD.Initialize
        PD.Target = pnlPie
    'Set the target view
        'Add the items. The last parameter is the color. Passing 0 will make it a random color.
        Charts.AddPieItem(PD, "Item #1"1200)
        Charts.AddPieItem(PD,
    "Item #2"250)
        Charts.AddPieItem(PD,
    "Item #3"500)
        Charts.AddPieItem(PD,
    "Item #4"1900)
        Charts.AddPieItem(PD,
    "Item #5"3500)
        PD.GapDegrees =
    20 'Total size of gaps between slices. Set to 0 for no gaps.
        PD.LegendBackColor = Colors.ARGB(50100100100'The background color of the legend bitmap.


    Dim ImageView1 As ImageView = Charts.DrawPie(PD, Colors.White, True)
        pnlPie.AddView(ImageView1,
    10dip10dip, ImageView1.Width, ImageView1.Height)


    Dim Cv As Canvas
        Cv.Initialize(pnlPie)


    Dim ImgZoom As ImageZoom
        ImgZoom.Initialize(Cv.CreateBitmap)
        ImgZoom.AddToView(pagePie.RootPanel,
    0,0,100%x100%y)

    End Sub
    Jan

    Taha likes this.
  8. Taha

    Taha Member Licensed User

    Great. DrawPie return ImageView. But DrawLinesChart doesn't.

  9. JanPRO

    JanPRO Well-Known Member Licensed User

    Hi,

    the ImageView isn't important.
    Important is the Panel which is the Target of the Bar-/Line-/Pie-Data. We are using this Panel, which includes the created chart, and create with the help of a canvas a bitmap of it.
    No we can use the ImageZoom library with the bitmap.
    Here is the modified Create2LinesTab Sub:
    Code:
    Sub Create2LinesTab
        pnl2Lines.Initialize(
    "pnl2Lines")
        pnl2Lines.Height =
    100%Y
        pnl2Lines.Width =
    100%X

    'pageLine.RootPanel.AddView(pnl2Lines, 0, 0, 95%x, 100%y)
        Dim LD As LineData
        LD.Initialize
        LD.Target = pnl2Lines
        Charts.AddLineColor(LD,
    Colors.Red) 'First line color
        Charts.AddLineColor(LD, Colors.Blue) 'Second line color
        For i = 0 To 360 Step 10

    'In this case we are adding an array of two values. One for each line.
            'Make sure to create an array for each point. You cannot reuse a single array for all points.
            Charts.AddLineMultiplePoints(LD, i, Array As Float(SinD(i), CosD(i)), i Mod 90 = 0)

    Next

    Dim G As Graph
        G.Initialize
        G.Title =

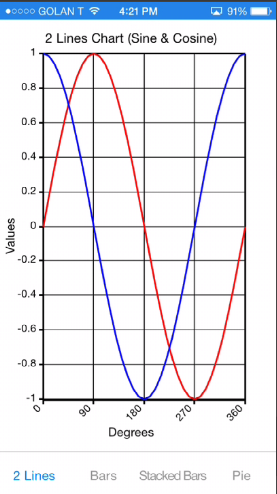

    "2 Lines Chart (Sine & Cosine)"
        G.XAxis =
    "Degrees"
        G.YAxis =
    "Values"
        G.YStart = -
    1
        G.YEnd =
    1
        G.YInterval =
    0.2
        G.AxisColor =
    Colors.Black
        Charts.DrawLineChart(G, LD,
    Colors.White)


    Dim Cv As Canvas
        Cv.Initialize(pnl2Lines)


    Dim ImgZoom As ImageZoom
        ImgZoom.Initialize(Cv.CreateBitmap)
        ImgZoom.AddToView(pageLine.RootPanel,
    0,0,100%x100%y)
    End Sub
    Jan

    f0raster0, Mashiane and Taha like this.
  10. Taha

    Taha Member Licensed User

    Thanks, Jan! I tried and it worked, very good to know. However the zoom is not as good as for Android library (zoom by axis).
