Android Question OutOfMemory Error with FitCenterBitmap

[Ferdari]

Hi everyone, im having this error on some low-end devices, i load a list of 30 webp images fille from a For, the list generates very well on medium and high-end but bad on low-end with code OutOfMemory Error:

java.lang.OutOfMemoryError:
  at android.graphics.Bitmap.nativeCreate (Native Method)
  at android.graphics.Bitmap.createBitmap (Bitmap.java:1266)
  at android.graphics.Bitmap.createBitmap (Bitmap.java:1219)
  at android.graphics.Bitmap.createBitmap (Bitmap.java:1169)
  at android.graphics.Bitmap.createBitmap (Bitmap.java:1130)
  at anywheresoftware.b4a.objects.drawable.CanvasWrapper.Initialize (CanvasWrapper.java:81)
  at stickers.memetflix.utils._v5 (utils.java:33)
  at stickers.memetflix.pack._vvvvvvvvvvvvvv2 (pack.java:483)
  at stickers.memetflix.pack._activity_create (pack.java:372)
  at java.lang.reflect.Method.invoke (Native Method)
  at anywheresoftware.b4a.BA.raiseEvent2 (BA.java:196)
  at stickers.memetflix.pack.afterFirstLayout (pack.java:104)
  at stickers.memetflix.pack.access$000 (pack.java:17)
  at stickers.memetflix.pack$WaitForLayout.run (pack.java:82)
  at android.os.Handler.handleCallback (Handler.java:907)
  at android.os.Handler.dispatchMessage (Handler.java:105)
  at android.os.Looper.loop (Looper.java:216)
  at android.app.ActivityThread.main (ActivityThread.java:7625)
  at java.lang.reflect.Method.invoke (Native Method)
  at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run (RuntimeInit.java:524)
  at com.android.internal.os.ZygoteInit.main (ZygoteInit.java:987)

Im using the @klaus sub FitCenterBitmap but i think need some optimization, don't know if the canvas consumes high memory or the LoadBitmapSample

Sub FitCenterBitmap(Imv As ImageView, Dir As String, FileName As String)

    Private bmp As Bitmap = LoadBitmapSample(Dir, FileName, 32dip,32dip)'LoadBitmapResize(Dir, FileName, 35dip,35dip ,True)
    Private cvs As Canvas
    cvs.Initialize(Imv)

    Dim rectDest As Rect
    Dim delta As Int
    If bmp.Width / bmp.Height > Imv.Width / Imv.Height Then
        delta = (Imv.Height - bmp.Height / bmp.Width * Imv.Width) / 2
        rectDest.Initialize(0, delta,Imv.Width, Imv.Height - delta)
    Else
        delta = (Imv.Width - bmp.Width / bmp.Height * Imv.Height) / 2
        rectDest.Initialize(delta, 0, Imv.Width - delta, Imv.Height)
    End If
    cvs.DrawBitmap(bmp, Null, rectDest)
    Imv.Invalidate

    Dim jo = bmp As JavaObject
    jo.RunMethod("recycle", Null)

End Sub

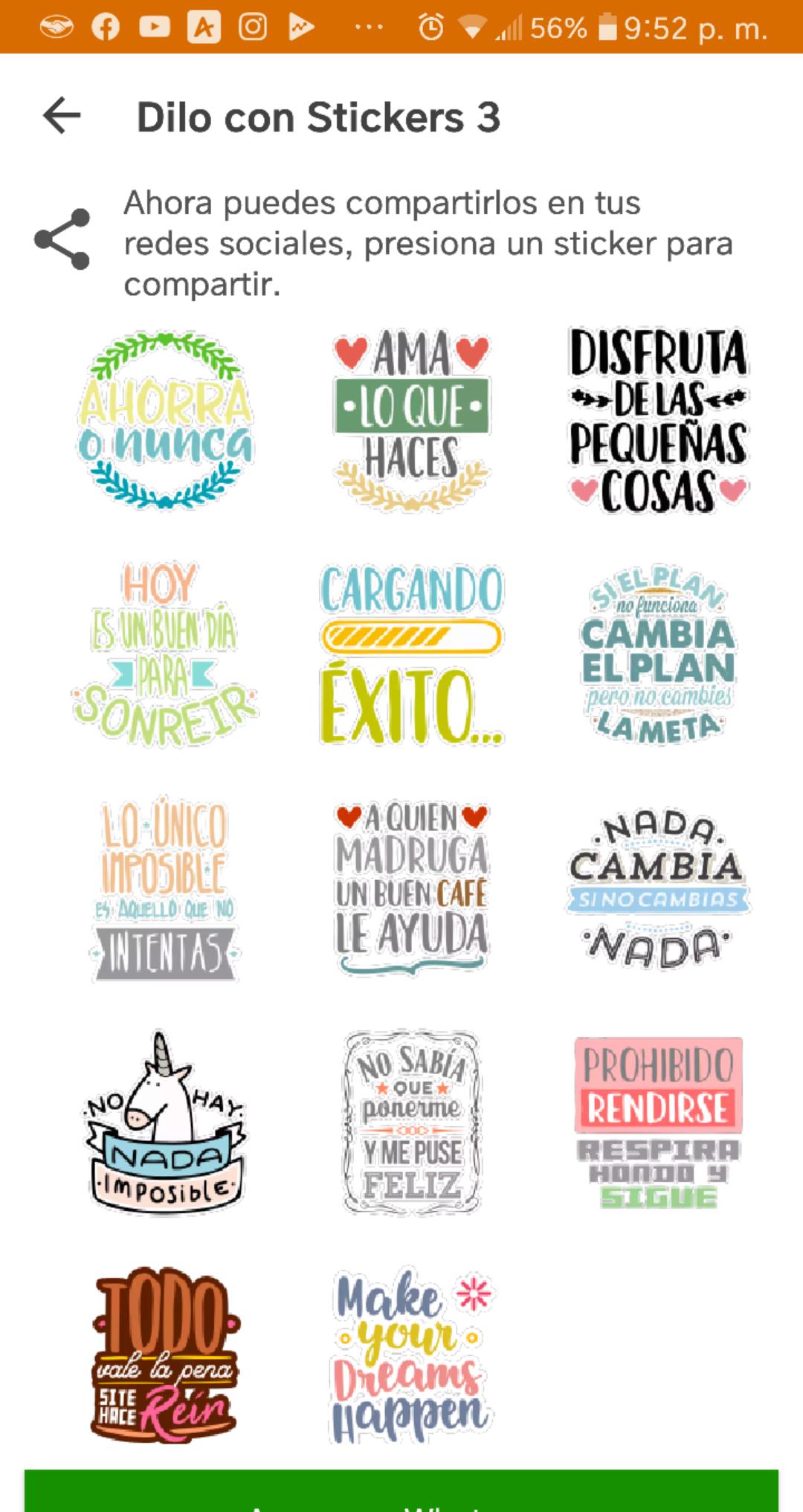

My pictures are 512x512px resized dynamically to 32x32dip then added to the a Scrollview in a grid of 3 items per row, max 30 images, i also added to manifest the:

SetApplicationAttribute(android:largeHeap,"true")

but still experiencing the problem on some devices.




Your help will be apreciated.



[Erel]

Why is the canvas needed here?

Why aren't you using LoadBitmapResize?

Example of showing a list with thousands of images: https://www.b4x.com/android/forum/t...-imageviews-and-many-rows.101431/#post-636920



[Ferdari]

Why is the canvas needed here?

Why aren't you using LoadBitmapResize?

Example of showing a list with thousands of images: https://www.b4x.com/android/forum/t...-imageviews-and-many-rows.101431/#post-636920

Thanks Erel, what do you think its the best way to fit height - centered with image proportion

i tried this:

 LoadBitmapResize(Dir, FileName, 32dip,32dip ,True)

with gravity.Center but it doesn't fit the height, it only appears centered inside the ImageView(rectangle), but small image, sorry i feel very new working with imageviews.



[Erel]

Can you upload the images?



[Ferdari]

Can you upload the images?

Im triying the LoadBitmapResize(Dir, FileName, Width,Height,True) But with exact Imageview size + gravity.center, it works ok and fill perfect the imageview without distortion, will check the next hours if fixes the OutOfMemory Error and no user reports.

Changed my code to:

Sub FitCenterBitmap(Imv As ImageView, Dir As String, FileName As String, Width As Int, Height As Int)
    Imv.Bitmap=LoadBitmapResize(Dir, FileName, Width, Height ,True)
    Imv.Gravity=Gravity.CENTER 'Bit.Or(Gravity.CENTER_HORIZONTAL, Gravity.fill)
End Sub

Testing on my device feels more faster and fluid than using canvas.

Ill report back the results



[LucaMs]

Why aren't you using LoadBitmapResize?

Changed my code to:

Sub FitCenterBitmap(Imv As ImageView, Dir As String, FileName As String, Width As Int, Height As Int)
    Imv.Bitmap=LoadBitmapResize(Dir, FileName, Width, Height ,True)
    Imv.Gravity=Gravity.CENTER 'Bit.Or(Gravity.CENTER_HORIZONTAL, Gravity.fill)
End Sub

You don't need FitCenterBitmap (which was a great Klaus's method he wrote when LoadBitmapResize didn't exist).
This is what Erel meant.

    Imv.Bitmap=LoadBitmapResize(Dir, FileName, Width, Height ,True)
    Imv.Gravity=Gravity.CENTER

are enough, of course.



[Ferdari]

Thanks @LucaMs and @Erel, the problem was fixed and not reported again.



[klaus]

I amended my answer in the original thread.
