Android Question Problem Designer Script

[maurizio barbera]

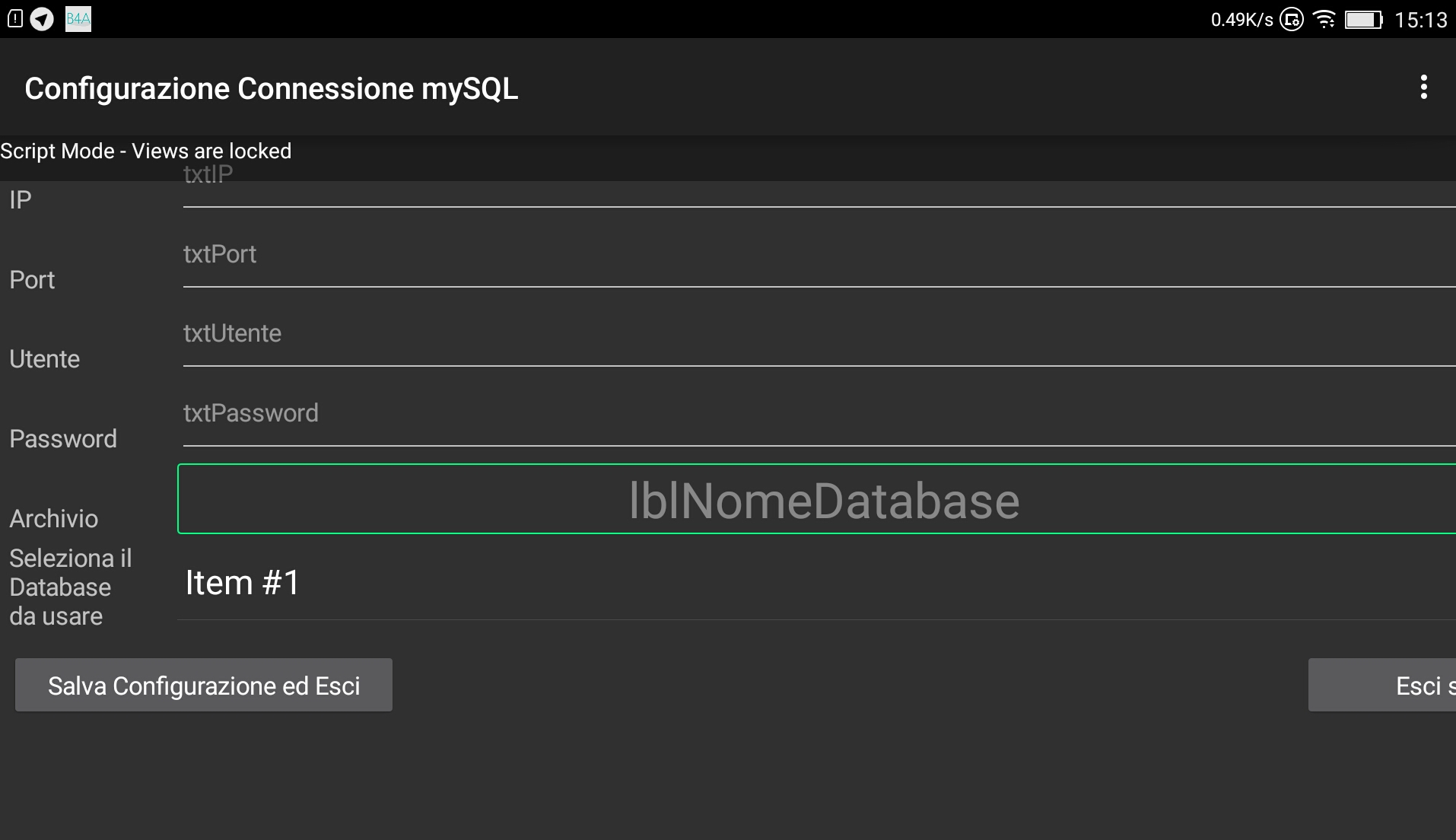

Hi, I created a script to adapt the view of the screen. in all ok visual designer, but when I start debugging on the display you see the view out of the screen ... for instance. (I know that the designer does not enter the lower part but my problem is the right side)

the code is:

lblIP.Top = 5dip
lblIP.Left = 5dip
lblPort.Top = lblIP.Top + lblIP.Height + 5dip
lblPort.Left = lblIP.Left
lblUtente.Top = lblPort.Top + lblPort.Height + 5dip
lblUtente.Left = lblIP.Left
lblPassword.Top = lblUtente.Top + lblUtente.Height + 5dip
lblPassword.Left = lblIP.Left
lblDBdaUsare.Top = lblPassword.Top + lblPassword.Height + 5dip
lblDBdaUsare.Left = lblIP.Left
lblDatabase.Top = lblDBdaUsare.Top + lblDBdaUsare.Height + 5dip
lblDatabase.Left = lblIP.Left
cmdSalva.Top = lblDatabase.Top + lblDatabase.Height + 5dip + 5dip
cmdSalva.Left = lblIP.Left
cmdTestIP.Top = 5dip
cmdTestIP.Left = 100%x - cmdTestIP.Width - 5dip
cmdTestIP.Height = txtPassword.Top + txtPassword.Height + 5dip
cmdLeggiDB.Top = lblDatabase.Top
cmdLeggiDB.Left = cmdTestIP.Left
cmdLeggiDB.Height = lstDatabase.Height
cmdEsci.Top = cmdSalva.Top
cmdEsci.Left = 100%x - cmdEsci.Width - 5dip
txtIP.Top = lblIP.Top
txtIP.Left = lblIP.Left + lblIP.Width + 5dip
txtIP.Width = cmdTestIP.Left - lblIP.Left - lblIP.Width - 10dip
txtPort.Top = lblPort.Top
txtPort.Left = txtIP.Left
txtPort.Width = txtIP.Width
txtUtente.Top = lblUtente.Top
txtUtente.Left = txtIP.Left
txtUtente.Width = txtIP.Width
txtPassword.Top = lblPassword.Top
txtPassword.Left = txtIP.Left
txtPassword.Width = txtIP.Width
lblNomeDatabase.Top = lblDBdaUsare.Top
lblNomeDatabase.Left = txtIP.Left
lblNomeDatabase.Width = txtIP.Width
lstDatabase.Top = lblDatabase.Top
lstDatabase.Left = txtIP.Left
lstDatabase.Width = txtIP.Width



[klaus]

It would be much easier for us to help you if you posted a small project showing the problem.



[maurizio barbera]

I posted a project, the designer if you run the scipt see that everything is ok ... but no device



[Erel]

You can easily replace all the script code with anchors.

Note that there are two calls to AutoScaleAll in your script. You should remove the call from the variant script.

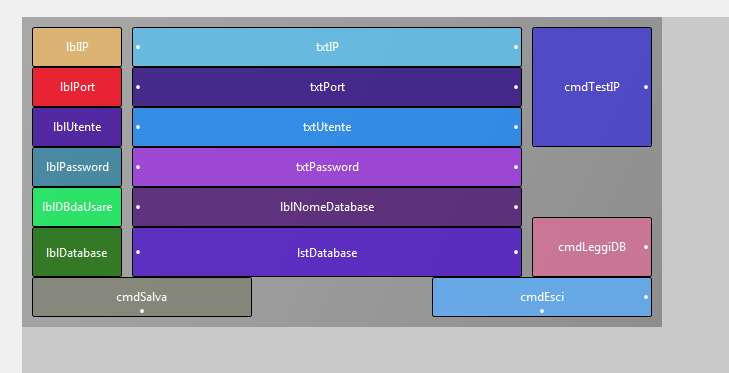

This is how your layout should look like (notice the small anchor indicators):

Remove all the script except of a single AutoScaleAll in the general script.



[maurizio barbera]

I tried to anchor as picture in picture ... see the results of two of the devices that I use for testing



[LucaMs]

Check the anchors of txtPassword and lblNomeDatabase.

Are you sure those images are from the same project? The fonts are different.



[maurizio barbera]

I check on the still and are just ... they are the same projects ... font change only in name...
AutoScalleAll verify fonts/size font???



[LucaMs]

Non sto dicendo che la colpa sia del font, ma siccome vedo due font differenti ho pensato che abbia usato due progetti differenti per generare le immagini.

E comunque ho scritto una cavolata, perché non soltanto quelle due view debordano.

Provo a scaricare il tuo progetto e modificarlo come ha detto Erel... vediamo.

-----

Sorry...

I'm seeing that other views overflow.
I try to download your project.



[maurizio barbera]

okay grazie...

i post meglio scriverli in inglese?
per essere utili atutti giusto?
......

thanks Luca



[LucaMs]

1... you have:
Full Screen = True in the Activity Attributes but not in the layout...



[LucaMs]

okay grazie...

i post meglio scriverli in inglese?
per essere utili atutti giusto?
......

thanks Luca

Here in English... in the Italian Forum in Italian

but I know that we can communicate better in Italian.



[Erel]

If you haven't solved it then please upload the updated project.



[LucaMs]

To solve, I fear we need to use some "workarounds" (like SetLeftAndRight for the central Views), I think that anchors can be useful only for Views that touch borders.



[maurizio barbera]

okay... i re-post updated project



[maurizio barbera]

Thanks Luca ... I resolve to modify the layer on Activity_Create setting all controls ... but I would avoid it ... and do it automatically ... if you have many layers it takes a long time to resize them ...



[LucaMs]

I don't know why this "solution" does not work


[P.S. note that I tried to move AutoScalAll to bottom only after first test - without thinking too much ]



[maurizio barbera]

buttons and label ok ... textbox are very long and out of the screen ... tried with and without AutoScaleAll



[maurizio barbera]

in try view in log size of screen and width of txtIP:
screen: 1920*1054
txtip:2004*112

??? strange



[Erel]

It is very simple. Please read my answer again:

Note that there are two calls to AutoScaleAll in your script. You should remove the call from the variant script.



[LucaMs]

It is very simple. Please read my answer again:

Note that there are two calls to AutoScaleAll in your script. You should remove the call from the variant script.

But not in mine (#13)

Also, I think there is a bug in the Designer (B4A 5.50):
Please, compare the project attached in #16 with the one attached here (B4A 4.30)
