Games ProtoType PlanetsGravity

[Gunther]

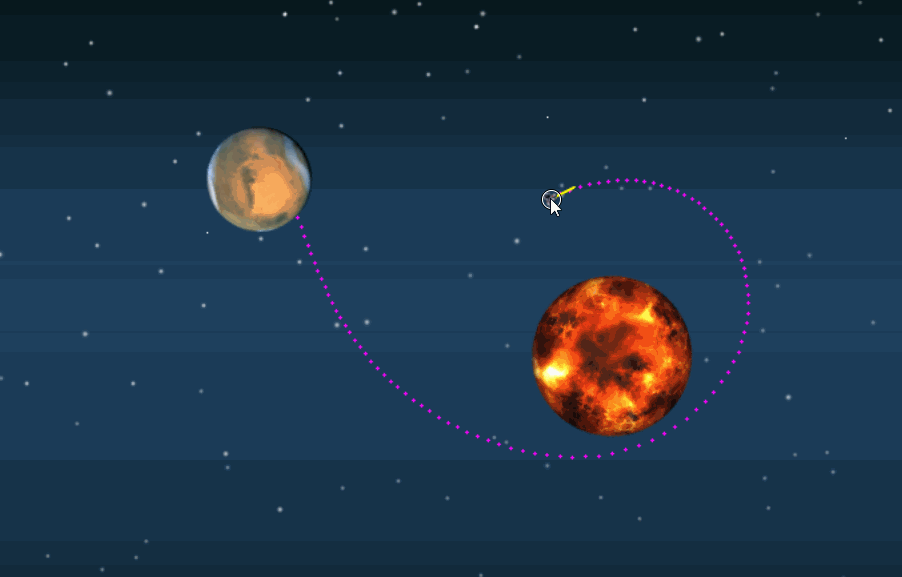

This is what I am working on as prototype.

Not that much to see, but funny to see the possible tracks on different locations. You can drag the planets on a new locations, too.



[Erel]

Tip: change the stars angle interval to 1.



[andymc]

nice work! I got frustrated that I couldn't get a stable orbit around a single planet though. Do the planets have different gravity values?



[Gunther]

Thanks, noted for the further items!



[Gunther]

Do the planets have different gravity values?

Yes, according to the radius they have different "gravity" values. Since kinematic bodies don't have a mass one need to work around that.

You can put them in the center together then at a certain distance there is an almost stable orbit. Anyhow after 120 secs the astronaut will be killed, to avoid filling the screen with astronauts. And he has only 15 secs after a planet is touched.

The niceset tracks one will get if you put the small planet to one corner (= almost no influemce) and then play with two planets.



[stevel05]

Nicely done.

I got frustrated that I couldn't get a stable orbit around a single planet though

Yes I tried that as well.



[andymc]

Nicely done.


Yes I tried that as well.

it's from years of playing Elite Frontier and trying to get into a stable orbit using manual engine control



[Gunther]

Tip: change the stars angle interval to 1.

Unfortunately I am getting a NullPointerException after certain time. Not the exact time everytime but plusminus 2 secs it occurs. The number (-86) is the Bodyangle in degree.

It happens after the internal GraphicCache change. The PNG has a size of about 75kb.

 -86
 -86
 -86
 -86
 -86
 -86
 -86
 -86
 -86
 -87
 -87
 -87
 -87
 -87
 -87
 -87
 -87
 -87
Trim Cache
Before: 31482924
After: 7529704
java.lang.RuntimeException: java.lang.NullPointerException
    at anywheresoftware.b4a.keywords.Common$2$1.run(Common.java:1020)
    at com.sun.javafx.application.PlatformImpl.lambda$null$172(PlatformImpl.java:295)
    at java.security.AccessController.doPrivileged(Native Method)
    at com.sun.javafx.application.PlatformImpl.lambda$runLater$173(PlatformImpl.java:294)
    at com.sun.glass.ui.InvokeLaterDispatcher$Future.run(InvokeLaterDispatcher.java:95)
    at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
    at com.sun.glass.ui.win.WinApplication.lambda$null$147(WinApplication.java:177)
    at java.lang.Thread.run(Thread.java:748)
Caused by: java.lang.NullPointerException
    at b4j.example.bitmapcreator._drawrotatedcbc(bitmapcreator.java:2490)
    at b4j.example.x2spritegraphiccache._getgraphic2(x2spritegraphiccache.java:544)
    at b4j.example.x2spritegraphiccache._getgraphic2(x2spritegraphiccache.java:515)
    at b4j.example.x2spritegraphiccache._getdrawtask(x2spritegraphiccache.java:404)
    at b4j.example.x2bodywrapper._createdrawtaskbasedoncache(x2bodywrapper.java:119)
    at b4j.example.x2bodywrapper._updategraphic(x2bodywrapper.java:251)
    at b4j.example.x2bodywrapper._tick(x2bodywrapper.java:237)
    at b4j.example.x2utils$ResumableSub_MainLoop.resume(x2utils.java:922)
    at anywheresoftware.b4a.keywords.Common$2$1.run(Common.java:1018)
    ... 7 more



[Erel]

Can you upload the project?



[Gunther]

Can you upload the project?

Here it is.

In this case the crash comes around -152°.

It looks like the BC cache is erased more than expected (not all 360x graphics are available anymore). Or a limit is reached.

If you change the "zoom":

X2.ConfigureDimensions( X2.CreateVec2( WorldWidth / 2, WorldHeight / 2 ), WorldWidth * .9 )

It craches earlier - with .9 => -124°

With 1.5 - no crash.



[Erel]

It is indeed a bug. It is related to a previous change in the way that rotated graphics are created. You can fix it with this code in TrimCache:

For Each m As Map In data.MapsOfCompressedBCs
           Dim zero As CompressedBC = m.Get(0) '<--- new
           m.Clear
           m.Put(0, zero) '<--- new
       Next

It is fixed for the next update.

As a general rule it is not good that the cache needs to be cleared too frequently. It can have a bad impact on the performance.

You have two options:
1. Increase the cache size: MAX_SIZE_OF_ALL_COMPRESSEDBCS

2. Set the angle interval to 2 or 3.



[Gunther]

For the ProtoType I choosed angle to 2 ;o)

The TestProject runs fine with adding this suggested two lines in the X2SpriteGraphicCache.bas (Line 240 ff)

Thanks.



[LucaMs]

fake work!!!



[Gunther]

I am in line with the flatness. It is box2D.



[Erel]

I am in line with the flatness. It is box2D.

Very good point
