Android Tutorial SQL tutorial

Status
Not open for further replies.
Update 2018:

New video tutorial:


The source code is available here: https://www.b4x.com/android/forum/t...ming-video-tutorials.88787/page-2#post-577932

Async methods: [B4X] SQL with Wait For

The following tutorial is obsolete:

This tutorial covers the SQL library and its usage with Basic4android.
There are many general SQL tutorials that cover the actual SQL language. If you are not familiar with SQL it is recommended to start with such a tutorial.
SQL Introduction

A new code module is available named DBUtils. It contains methods for common tasks which you can use and also learn from the code.

Android uses SQLite which is an open source SQL implementation.
Each implementation has some nuances. The following two links cover important information regarding SQLite.
SQLite syntax: Query Language Understood by SQLite
SQLite data types: Datatypes In SQLite Version 3

SQL in Basic4android
The first step is to add a reference to the SQL library. This is done by going to the Libraries tab and checking SQL.
There are two types in this library.
An SQL object gives you access to the database.
The Cursor object allows you to process queries results.

Usually you will want to declare the SQL object as a process global object. This way it will be kept alive when the activity is recreated.

SQLite stores the database in a single file.
When we initialize the SQL object we pass the path to a database file (which can be created if needed).
B4X:
Sub Process_Globals
    Dim SQL1 As SQL
End Sub

Sub Globals

End Sub

Sub Activity_Create(FirstTime As Boolean)
    If FirstTime Then
        SQL1.Initialize(File.DirDefaultExternal, "test1.db", True)
    End If
    CreateTables
    FillSimpleData
    LogTable1
    InsertManyRows
    Log("Number of rows = " & SQL1.ExecQuerySingleResult("SELECT count(*) FROM table1"))

    InsertBlob 'stores an image in the database.
    ReadBlob 'load the image from the database and displays it.
End Sub
The SQL1 object will only be initialized once when the process starts.
In our case we are creating it in the sd card. The last parameter (CreateIfNecessary) is True so the file will be created if it doesn't exist.

There are three types of methods that execute SQL statements.
ExecNonQuery - Executes a "writing" statement and doesn't return any result. This can be for example: INSERT, UPDATE or CREATE TABLE.

ExecQuery - Executes a query statement and returns a Cursor object that is used to process the results.

ExecQuerySingleResult - Executes a query statement and returns the value of the first column in the first row in the result set. This method is a shorthand for using ExecQuery and reading the value with a Cursor.

We will analyze the example code:
B4X:
Sub CreateTables
    SQL1.ExecNonQuery("DROP TABLE IF EXISTS table1")
    SQL1.ExecNonQuery("DROP TABLE IF EXISTS table2")
    SQL1.ExecNonQuery("CREATE TABLE table1 (col1 TEXT , col2 INTEGER, col3 INTEGER)")
    SQL1.ExecNonQuery("CREATE TABLE table2 (name TEXT, image BLOB)")
End Sub
The above code first deletes the two tables if they exist and then creates them again.

B4X:
Sub FillSimpleData
    SQL1.ExecNonQuery("INSERT INTO table1 VALUES('abc', 1, 2)")
    SQL1.ExecNonQuery2("INSERT INTO table1 VALUES(?, ?, ?)", Array As Object("def", 3, 4))
End Sub
In this code we are adding two rows. SQL.ExecNonQuery2 receives two parameters. The first parameter is the statement which includes question marks. The question marks are then replaced with values from the second List parameter. The List can hold numbers, strings or arrays of bytes (blobs).
Arrays are implicitly converted to lists so instead of creating a list we are using the Array keyword to create an array of objects.

B4X:
Sub LogTable1
    Dim Cursor1 As Cursor
    Cursor1 = SQL1.ExecQuery("SELECT col1, col2, col3 FROM table1")
    For i = 0 To Cursor1.RowCount - 1
        Cursor1.Position = i
        Log("************************")
        Log(Cursor1.GetString("col1"))
        Log(Cursor1.GetInt("col2"))
        Log(Cursor1.GetInt("col3"))
    Next
    Cursor1.Close
End Sub
This code uses a Cursor to log the two rows that were previously added.
SQL.ExecQuery returns a Cursor object.
Then we are using the For loop to iterate over all the results.
Note that before reading values from the Cursor we are first setting its position (the current row).

B4X:
Sub InsertManyRows
    SQL1.BeginTransaction
    Try
        For i = 1 To 500
            SQL1.ExecNonQuery2("INSERT INTO table1 VALUES ('def', ?, ?)", Array As Object(i, i))
        Next
        SQL1.TransactionSuccessful
    Catch
        Log(LastException.Message)
    End Try
    SQL1.EndTransaction
End Sub
This code is an example of adding many rows. Internally a lock is acquired each time a "writing" operation is done.
By explicitly creating a transaction the lock is acquired once.
The above code took less than half a second to run on a real device.
Without the BeginTransaction / EndTransaction block it took about 70 seconds.
A transaction block can also be used to guarantee that a set of changes were successfully done. Either all changes are made or none are made.
By calling SQL.TransactionSuccessful we are marking this transaction as a successful transaction. If you omit this line, all the 500 INSERTS will be ignored.
It is very important to call EndTransaction eventually.
Therefore the transaction block should usually look like:
B4X:
SQL1.BeginTransaction
Try
  'Execute the sql statements.
SQL1.TransactionSuccessful
Catch
'the transaction will be cancelled
End Try
SQL1.EndTransaction
Note that using transactions is only relevant when doing "writing" operations.

Blobs
The last two methods write an image file to the database and then read it and set it as the activity background.
B4X:
Sub InsertBlob
    Dim Buffer() As Byte = File.ReadBytes(File.DirAssets, "smiley.gif")
    'write the image to the database
    SQL1.ExecNonQuery2("INSERT INTO table2 VALUES('smiley', ?)", Array As Object(Buffer))
End Sub
Here we are using a special type of OutputStream which writes to a dynamic bytes array.
File.Copy2 copies all available data from the input stream into the output stream.
Then the bytes array is written to the database.

B4X:
Sub ReadBlob
    Dim Cursor1 As Cursor = SQL1.ExecQuery2("SELECT image FROM table2 WHERE name = ?", Array As String("smiley"))
    Cursor1.Position = 0
    Dim Buffer() As Byte = Cursor1.GetBlob("image")
    Dim InputStream1 As InputStream
    InputStream1.InitializeFromBytesArray(Buffer, 0, Buffer.Length)
    Dim Bitmap1 As Bitmap
    Bitmap1.Initialize2(InputStream1)
    InputStream1.Close
    Activity.SetBackgroundImage(Bitmap1)
End Sub
Using a Cursor.GetBlob we fetch the previously stored image.
Now we are using an input stream that reads from this array and load the image.

Asynchronous queries
SQL library v1.20 supports asynchronous select queries and asynchronous batch inserts.

Asynchronous means that the task will be processed in the background and an event will be raised when the task completes. This is useful when you need to issue a slow query and keep your application responsive.

The usage is quite simple:
B4X:
sql1.ExecQueryAsync("SQL", "SELECT * FROM table1", Null)
...
Sub SQL_QueryComplete (Success As Boolean, Crsr As Cursor)
    If Success Then
        For i = 0 To Crsr.RowCount - 1
            Crsr.Position = i
            Log(Crsr.GetInt2(0))
        Next
    Else
        Log(LastException)
    End If
End Sub
The first parameter is the "event name". It determines which sub will handle the QueryComplete event.

Batch inserts
SQL.AddNonQueryToBatch / ExecNonQueryBatch allow you to asynchronously process a batch of non-query statements (such as INSERT statements).
You should add the statements by calling AddNonQueryToBatch and eventually call ExecNonQueryBatch.
The task will be processed in the background. The NonQueryComplete event will be raised after all the statements execute.
B4X:
For i = 1 To 10000
        sql1.AddNonQueryToBatch("INSERT INTO table1 VALUES (?)", Array As Object(Rnd(0, 100000)))
Next
sql1.ExecNonQueryBatch("SQL")
...
Sub SQL_NonQueryComplete (Success As Boolean)
    Log("NonQuery: " & Success)
    If Success = False Then Log(LastException)
End Sub


Attachments

  • SQL.zip
    8.1 KB · Views: 10,794
Last edited:

sorex

Expert
Licensed User
Erel,

the code below is a copy from post #1 here.

why do you switch from SQL1. to SQL. ?

Is that a typo?

SQL1.BeginTransaction
Try
'Execute the sql statements.
SQL.TransactionSuccessful
Catch
'the transaction will be cancelled
End Try
SQL.EndTransaction


haddad

Member
Licensed User
I am trying to run the following:

Cursor = SQL1.ExecQuery("SELECT * FROM Words")

I compile the app to a device, enter some text, click a button to execute this code, and get this error:

android.database.sqlite.SQLiteException: no such table: Words: , while compiling:
SELECT * FROM Words

I did an If File.Exists... to make sure the database is really there. The only table in the db is "Words".

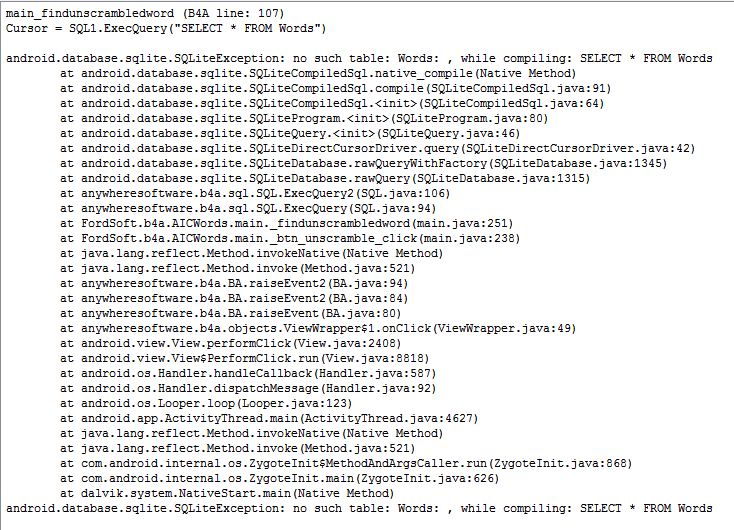

If it helps, here is the Log:


SQL Log.jpg
with sqllite he don't knenw * , then you must do "SELECT FROM nametable"


klaus

Expert
Licensed User
The post #4 you are refering to is a very old one, from 2011.
This code should work
Cursor = SQL1.ExecQuery("SELECT * FROM Words")
but from the error message, there was no Words table.

Last edited:

schemer

Active Member
Licensed User
I started making my SQLite DB a year or two ago for a VB6 app but never finished it (to replace the hard coded data in the app) and now I am going to finish it for B4A app conversion. I am new to B4A (bought on 01-21-2015) and pretty much SQLite too. I looked at my db in SQLite and see I have used the DECIMAL(6,4) data type for one column of data. From what I have read I think I need to change the data type to REAL. Is that correct?
Thanks,
schemer


TheFalcon

Active Member
Licensed User
a question, how can you use the SQL date when I table the date type are not available, and when it is necessary to add to the list and put it as Array of String when using Sql.Query can not order Date DESC that date is as Type TEXT

B4X:
tabla_lista.Add(Array As String(fecha_informe, peso_informe, tipo_informe))

I add values to a Listview but the date to be formatted TEXT not accept me consulting By Desc order
Thanks


a_carignan

Member
Licensed User
Code for save
For a =0 To liste_cartes.Size-1
carte=liste_cartes.Get(a)
liste_arg.Clear
liste_arg.Add(carte.nom)
liste_arg.Add(carte.pos)
liste_arg.Add(renamefile_forwrite(carte.directory))
liste_arg.Add(renamefile_forwrite(carte.jpeg))
liste_arg.Add(renamefile_forwrite(carte.html))
liste_arg.Add(carte.web_code)
liste_arg.Add(writeboolean(carte.reversible))
liste_arg.Add(writeboolean(carte.inverser))
liste_arg.Add(carte.bottom)
liste_arg.Add(carte.box_left)
liste_arg.Add(carte.box_top)
liste_arg.Add(carte.height)
liste_arg.Add(carte.left)
liste_arg.Add(carte.right)
liste_arg.Add(carte.top)
liste_arg.Add(carte.widht)
liste_arg.Add(savebitmaptoblob(carte.image))
sql1.ExecNonQuery2("insert into cartes values (?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?)",liste_arg)
Next

Code for read
cursor1=sql1.ExecQuery("select * from cartes order by pos")
If cursor1.RowCount>0 Then
liste_cartes.Clear
For a =0 To cursor1.RowCount-1
cursor1.Position=a
Dim carte As type_carte
carte.Initialize
carte.nom=cursor1.GetString("name")
carte.pos=cursor1.GetLong("pos")
carte.directory=renamefile_forread(cursor1.GetString("directory"))
carte.jpeg=renamefile_forread(cursor1.GetString("jpeg"))
carte.html=renamefile_forread(cursor1.GetString("html"))
carte.web_code=cursor1.GetString("web_code")
carte.reversible=readboolean(cursor1.GetInt("reversible"))
carte.inverser=readboolean(cursor1.Getint("inverser"))
carte.bottom=cursor1.Getint("bottom")
carte.box_left=cursor1.Getint("box_left")
carte.box_top=cursor1.Getint("box_top")
carte.height=cursor1.Getint("height")
carte.left=cursor1.Getint("left")
carte.right=cursor1.Getint("right")
carte.top=cursor1.Getint("top")
carte.widht=cursor1.Getint("widht")
carte.image=Loadbitmapfromblob(cursor1.getBlob("image"))
liste_cartes.add(carte)
Next

Explain to me why the second card is unreadable on the phone. But on the computer all the cards are read well. The version of the computer will read well on the phone too. Only the written version of the phone unreadable by the phones.
Explinations?


a_carignan

Member
Licensed User
Here is the new code, and it fixed the problem.
sql1.BeginTransaction
Try
For a =0 To liste_cartes.Size-1
carte=liste_cartes.Get(a)
liste_arg.Clear
liste_arg.Add(carte.nom)
liste_arg.Add(carte.pos)
liste_arg.Add(renamefile_forwrite(carte.directory))
liste_arg.Add(renamefile_forwrite(carte.jpeg))
liste_arg.Add(renamefile_forwrite(carte.html))
liste_arg.Add(carte.web_code)
liste_arg.Add(writeboolean(carte.reversible))
liste_arg.Add(writeboolean(carte.inverser))
liste_arg.Add(carte.bottom)
liste_arg.Add(carte.box_left)
liste_arg.Add(carte.box_top)
liste_arg.Add(carte.height)
liste_arg.Add(carte.left)
liste_arg.Add(carte.right)
liste_arg.Add(carte.top)
liste_arg.Add(carte.widht)
liste_arg.Add(savebitmaptoblob(carte.image))
sql1.ExecNonQuery2("insert into cartes values (?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?)",liste_arg)
Next
sql1.TransactionSuccessful
Catch
Log(LastException.Message)
End Try
sql1.EndTransaction


Alberto Michelis

Well-Known Member
Licensed User
Hi,
1) How to know if a table exists or not?
I need to create a teble if it does not exists.
2) Any win utility to edit the .db files?

Thanks


Alberto Michelis

Well-Known Member
Licensed User
How to change the data folder name?

I change the project name to armi.portit and I get

/storage/emulated/0/Android/data/armi.portit/files

but, where are this storage folder located?

I cant locate it in Phone/Android/Data

Thanks

Last edited:

Ferbis

Active Member
Licensed User
Read my post "Good Database Manager for programming with B4A" for the win DBB utilities

I suggest you to read the Beginners Guide and the User Guide to start with b4a. Beleave me if I say that it is not a waste of time. They are fantastic!!!

Status
Not open for further replies.
Top
