B4J Question [BANano] [BVAD3] Simple Form Example with no need of php and running on Jetty ?

[Magma]

Hi there...

well i am trying to get understand the way of using better and simple the BANano (great tool) and BVAD3 (a great library for tool) but i am falling at deeper holes... well all examples and tutorials using laragon server (and not jetty)...

Can i have a simple example with

1. a contact form
2. table of some data (if it is possible to be editable)

with just the use of template and abstract designer and ofcourse running at Jetty (no need 3rd party applications or servers)

is it possible?
is there any ready example with all these ?
is there a tutorial of BVAD3 with no need of php/laragon... or all need the php ... :-( ???



[Mashiane]

Hi @Magma

Thank you for your kind words. Appreciated.

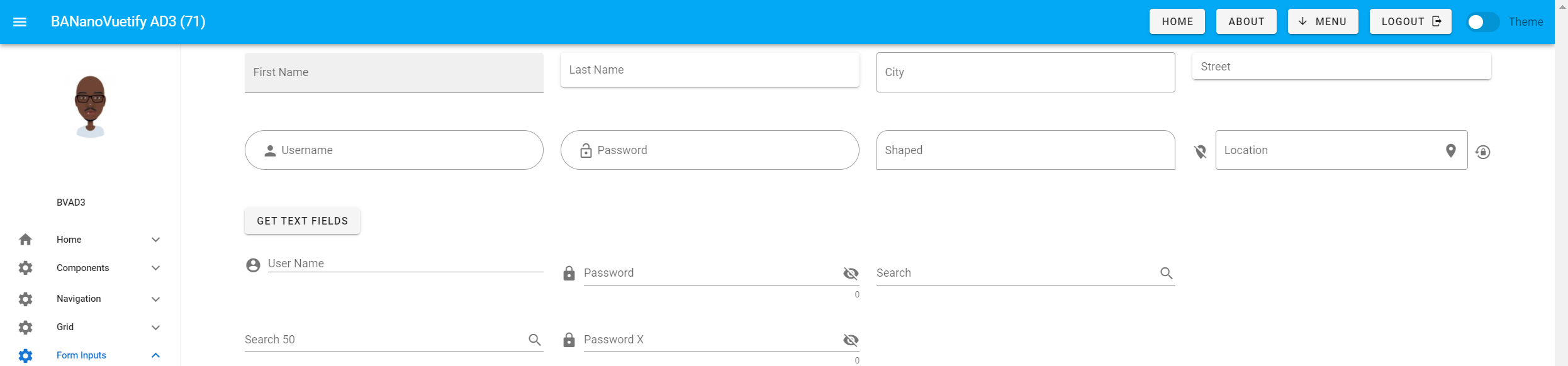

A1. Yes its possible, even outside of BVAD3 framework, if you visit, https://mashiane.github.io/BANanoVuetifyAD3/#/textfields

From the source code files, there are referenced with the name of the code modules as per provided source code.

drwlist.AddItemParentChild("", "mforms", "mdi-cog", "", "Form Inputs", "")
    drwlist.AddItemParentChild("mforms", ViewDatePicker.name, "", "", "Date Picker", ViewDatePicker.path)
    drwlist.AddItemParentChild("mforms", ViewTextFields.name, "", "", "Text Fields", ViewTextFields.path)
    drwlist.AddItemParentChild("mforms", ViewSelects.name, "", "", "Selects", ViewSelects.path)
    drwlist.AddItemParentChild("mforms", ViewFormControls.name, "", "", "Form Controls", ViewFormControls.path)
    drwlist.AddItemParentChild("mforms", ViewRadioGroup.name, "", "", "Radio Groups", ViewRadioGroup.path)
    drwlist.AddItemParentChild("mforms", ViewSwitches.name, "", "", "Switches", ViewSwitches.path)
    drwlist.AddItemParentChild("mforms", ViewTextArea.name, "", "", "Text Area", ViewTextArea.path)
    drwlist.AddItemParentChild("mforms", ViewCheckBoxes.name, "", "", "Check Boxes", ViewCheckBoxes.path)
    drwlist.AddItemParentChild("mforms", ViewFileInput.name, "", "", "File Inputs", ViewFileInput.path)
    drwlist.AddItemParentChild("mforms", ViewSliders.name, "", "", "Sliders", ViewSliders.path)
    drwlist.AddItemParentChild("mforms", ViewRating.name, "", "", "Rating", ViewRating.path)

For example, if you want to see how the TextFields above were created, see the code in the ViewTextFields code module. If you also want to see how selects are created, open the ViewSelects code module.

To create layouts via the abstract designer, you will need to use the VueElement generic custom view. This will change in the future as we are working towards making available the generic components like TextFields, DatePickers as individual custom view. You can see the YT videos on how to do that. Here is the link to the YT Playlist,



A2. Sadly there is no BANano example that we can learn from that we can replicate to any other UX framework.

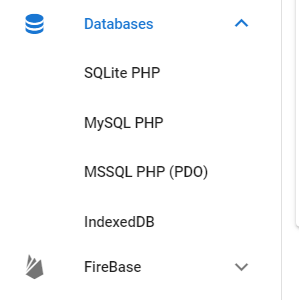

A3. A2 refers. With that said, BVAD3 has been explored with BANanoFireStore, BANanoSQL, BANanoLocalStorage, BANanoNEDB, the last 3 using IndexedDB. These do not use PHP but built in classes. You can see this from the Databases section of the source code.

Our work with BANanoServer (jetty) & BANano is still a work in progress, you can see our many questions and tries and things we were able to solve and not solve as yet here, https://www.b4x.com/android/forum/pages/results/?query=bananoserver

Later!?



[Magma]

...well.. i thought was easier... found the modules (downloaded from github) but there is no example for jetty.... templates go to a default laragon setup..

need many edits



[Magma]

Well after replacing some lines at start of the code and using jserver, also rem bp.open and exit application was able to run it at jetty.... ;-)

The same with bananowix which is easier (i am vb6 programmer) but its using php for databases.. :-(

Waiting the new designer for bvad3 ... Hope to be drag n drop + all code hope to be into b4j ...

Nice job ?

Ps: by the way what exactly are the limits of free webix.. and why discontinued supporting it..? Why all these frameworks cost so much... Snif



[Mashiane]

Well after replacing some lines at start of the code and using jserver, also rem bp.open and exit application was able to run it at jetty.... ;-)

Please share your experience, this should be awesome to find out.

Waiting the new designer for bvad3 ... Hope to be drag n drop + all code hope to be into b4j ...

Thats the whole point of the enhanced design system.

Ps: by the way what exactly are the limits of free webix.. and why discontinued supporting it..? Why all these frameworks cost so much... Snif

At the time, I reached the ceiling when it came to creating the free components and demonstrating how to use it. They have added new components on their packages. No, I have not stopped supporting it, no one is asking / seem to be using it. Its an awesome package hey. I know of one person personally who was/is using it, but that was then. Yes, they are very expensive. Main reason I started BVAD3.

Thanks for the kind words.



[Magma]

Sharing Experience ...

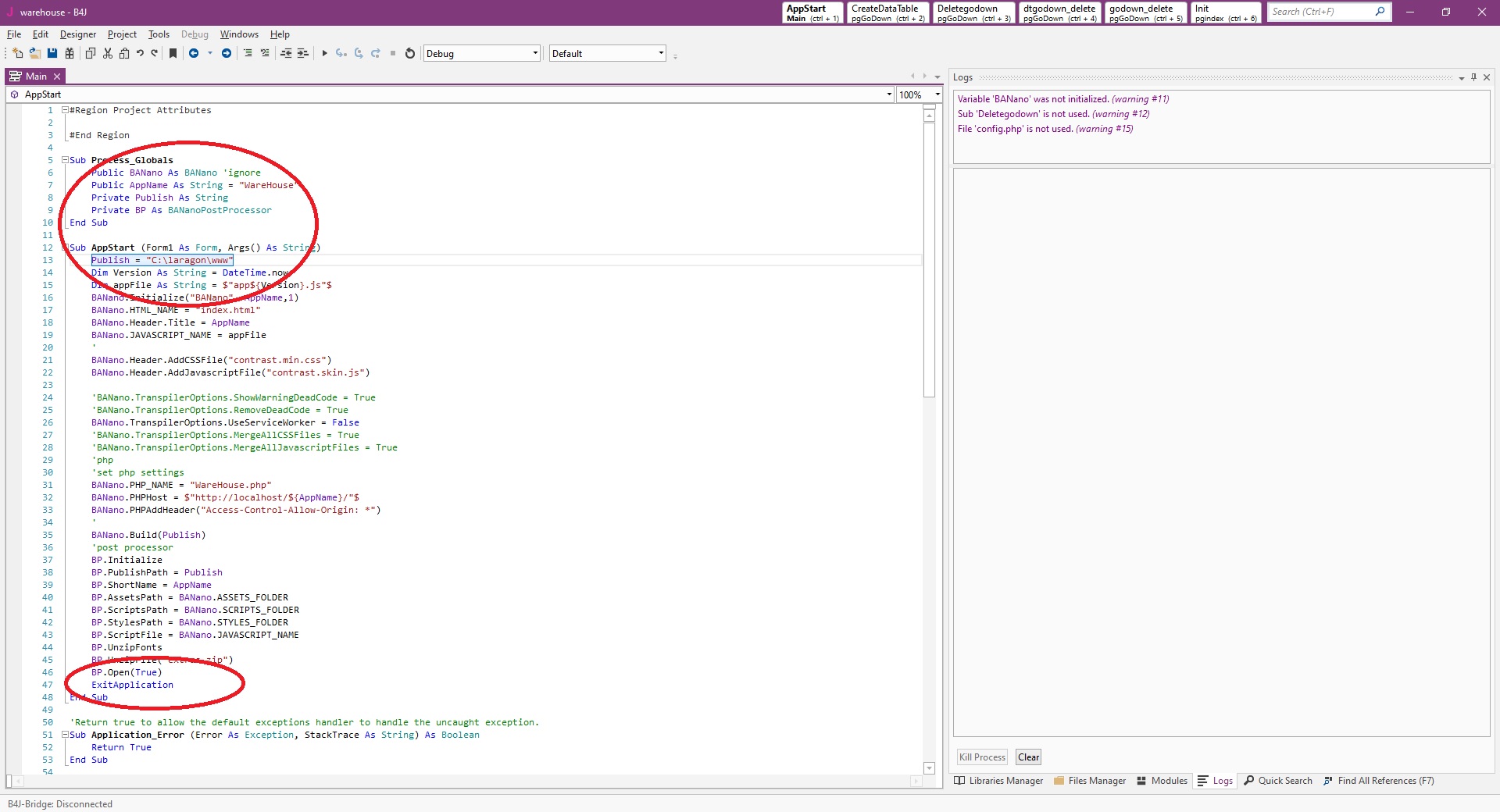

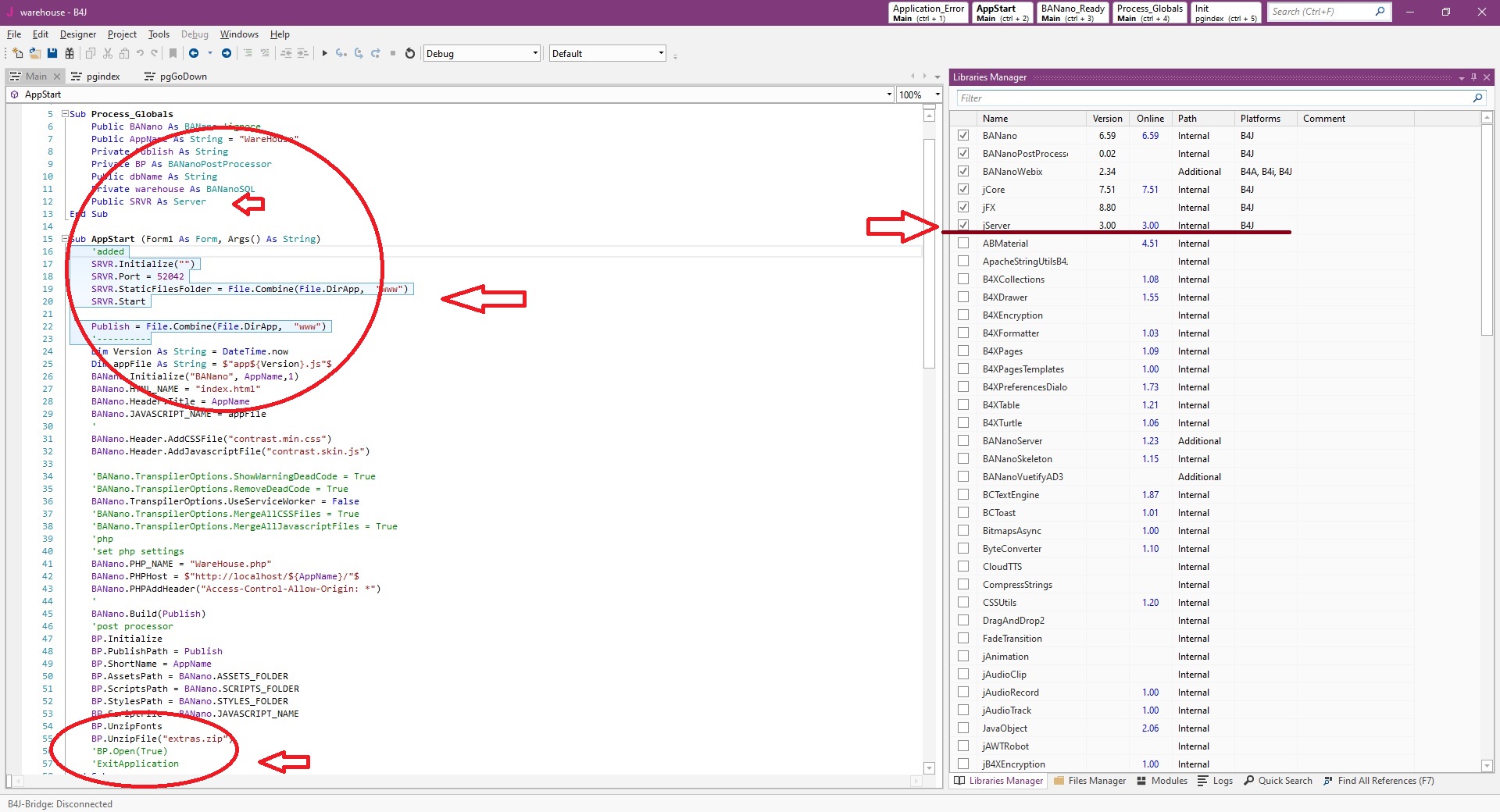

well when you open a project at laragon you just remove lines

at bananowebix projects (AppStart) :

    Publish = "C:\laragon\www"

also at the end of Appstart remove:

    BP.Open(True)
    ExitApplication

at BVAD3 tutorials...
just keep the private publish as string without the "= "C:\laragon\www""

 Private Publish As String '      = "C:\laragon\www"

add at Process_Globals this code / and Jserver Library

Public SRVR As Server

and add at Appstart the following code:

    'added
    SRVR.Initialize("")
    SRVR.Port = 52042
    SRVR.StaticFilesFolder = File.Combine(File.DirApp,  "www")
    SRVR.Start

    Publish = File.Combine(File.DirApp,  "www")
    '----------

at BVAD3 tutorials...
add at Process_Globals this code / and Jserver Library

Public SRVR As Server

add the same code (like webix) at Appstart the following code:

    'added
    SRVR.Initialize("")
    SRVR.Port = 52042
    SRVR.StaticFilesFolder = File.Combine(File.DirApp,  "www")
    SRVR.Start

    Publish = File.Combine(File.DirApp,  "www")
    '----------

and remove

    fx.ShowExternalDocument(appPath)
    #if release
        ExitApplication
    #end if

And the following the same for webix and bvad3:

at then end of AppStart no need add nothing...
because we manually browse then page from the browser we want... like

http://localhost:52042/



[Magma]

The only problem are the php/server scripts - as they don't run with add-ons at jetty (the are ways to fix it-with addons)

but from the other hand why to use PHP when you have the feature use the b4j and add/delete/edit records to databases or run server code



[Mashiane]

Thanks @Magma, but I am little bit conflicted, your question is about BVAD3 but you are fully discussing BANanoWebix including your screen dumps. This is going to create a confusion. Don't you want to perhaps rather redo your "Sharing Experience" to only speak about BVAD3? Then you can share your BANanoWebix experience individually? Thanks for understanding.



[Mashiane]

On the issue of PHP, are you experiencing the same issues using BANanoSkeleton or pure BANano without any framework?

Why dont you give that a try? then at least if that works then perhaps on the BVAD3 or BANanoWebix source code one can have a more eagle eye on what could be happening.

Thanks again.



[Magma]

You have right...
well -- Sharing exprerience for BVAD3.. how to work with the tutorial at jServer

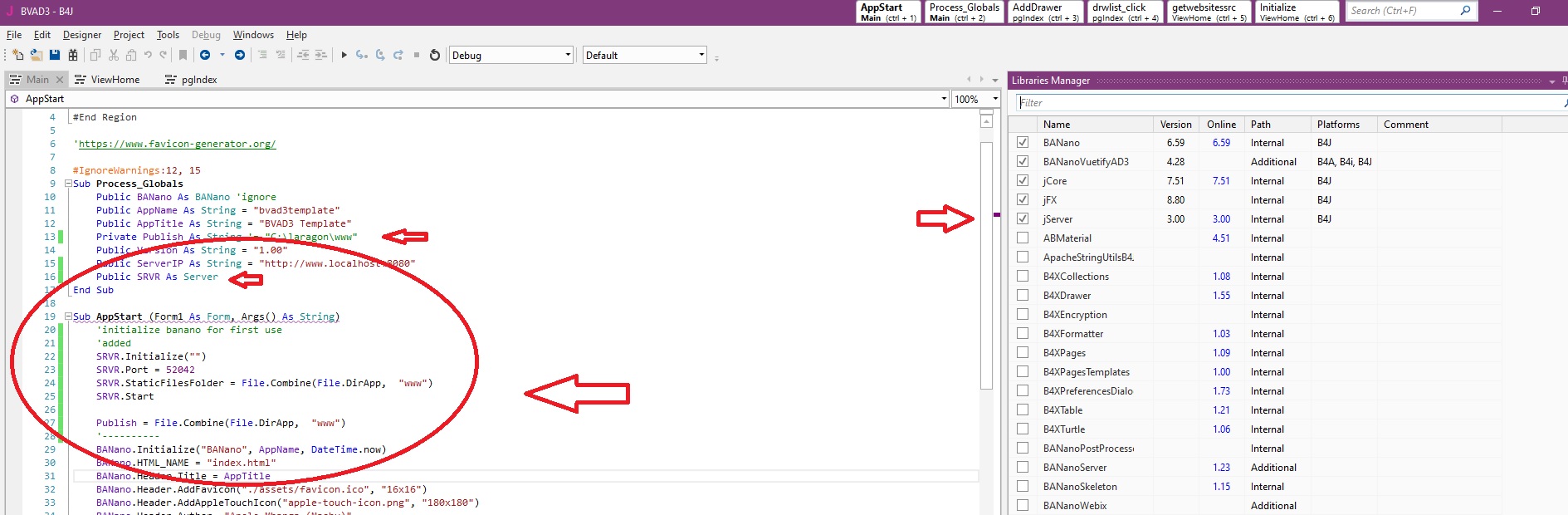

here the changes i ve made for working the BVAD3 Tutorial...

1) Create a folder into the project \objects ... with the name www (important!)
2) Add Jserver Library...to the project
At the Process_Globals remove specific folder "C:\laragon\www" and add the following line (for adding library jserver):

    ...
    Private Publish As String '= "C:\laragon\www"
    ...
    Public SRVR As Server

3) At Appstart add the following lines at the start of project:

           'added
SRVR.Initialize("")
SRVR.Port = 52042
SRVR.StaticFilesFolder = File.Combine(File.DirApp, "www")
SRVR.Start

Publish = File.Combine(File.DirApp, "www")
'----------

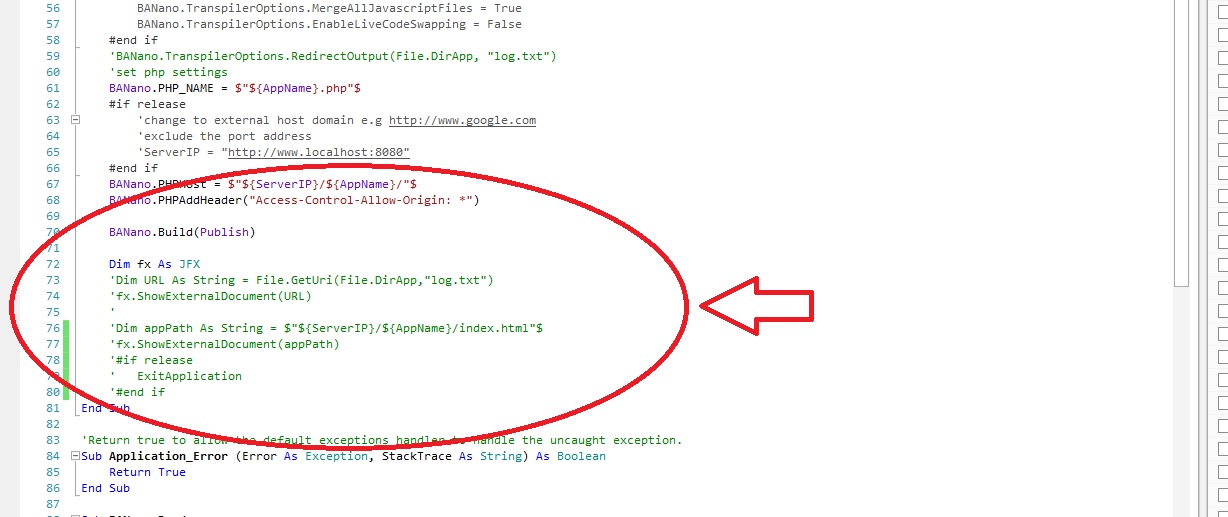

4) Remove at the end of AppStart module these lines:

    'Dim fx As JFX
    'Dim URL As String = File.GetUri(File.DirApp,"log.txt")
    'fx.ShowExternalDocument(URL)
    '
    'Dim appPath As String = $"${ServerIP}/${AppName}/index.html"$
    'fx.ShowExternalDocument(appPath)
    '#if release
    '    ExitApplication
    '#end  if

5) Run the project...
and browse the "client" from any browser you like (html5 compatible)...
the http://localhost:52042 (or if you are running from other pc--- http://ip:52042 - have in mind to pass someway the port from router if you wanna see it work out of your local network)



[Mashiane]

So you are not referencing or using the BANanoServer library at all?



[Magma]

@Mashiane... i was talking for the "ready" tutorial projects you have by default setupped with "laragon" ...so my first try was adding just jServer.... to see how it works..
