Share My Creation Remote Administration via MQTT


Hi there...

as IT using a lot Remote Administration Utilities to remote control Windows PCs... but I thought why not creating mine? I will be sure for security, i will not have to pay anyone.... Hey... Where is my "TOOL"... here it is... B4X... (b4j for those who know).

Before some years Saif (sfsameer) shared a project called TeamViewer Alternative - was very good... and the weird... that already thought it (1 year before), with the same way (ffmpeg)...

But the whole idea... wasn't so simple.... need a Server, with SQL... need setup... and a lot of bandwidth... also need to open ports and think how will pass the firewalls... Also was using ffmpeg libs.. make it difficult to understand it.

So I ve think it a lot... how to make a Remote Administration Utility as simple is possible - to understand it everyone with little knowledge and work everywhere !
Remote Administration: PC to PC (one will be Host, one will be Client) - View screen remotely and control with mouse and keyboard...
See the Features...

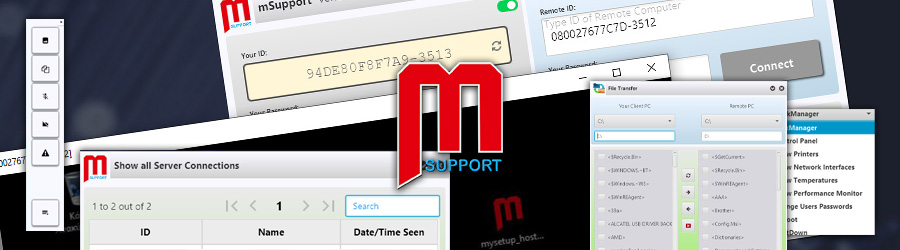

See new Features here (19/9/2022) - (22/9/2022 newer version at same links) and some screenshots...

Well the solution was in front of me - all - the time... MQTT / capture screen and publish... so simple... from the other client just subscribe and show pictures... simple ???

No extra libs(now-because of features added need some libs), no databases, no special setup, as easy as possible ! You can create your MQTT Server, or use a ready one (for example: https://www.hivemq.com/)!

If you wanna share it with you...

you can donate me,
49€
(10% will go at B4X)

until 31/7/2022... from 49€ just 19€ (was PROMO PRICE)


Donate and give your Donation-ID here in thread with post...
I will send the full-source-code via email, PM...

For the moment only B4J code is available.

* Caution: is not the same code with Saif's - I am not having any relationship with sfsameer.

Video Demonstration (Playing 200% faster - to not be boring):

Here the Demo executable (needs Windows 7,8,10,11 - 64bit):

Download from Here!!! (OLD)
Go at this post for new one...
Install it.. run it as Administrator (right click - properties - advance - check Run as Admin)..
Caution! this is only for demo purposes... may be you expose your data (using free open mqtt broker) or codes without using the full-source-code and replacing with your MQTT server and credentials... using full source code gives you the option to replace all with SSL protection!

Why "not" giving an Android solution ? - Not giving Android Solution, yet ! (higher level of difficulty)

Last edited:

Magma

Well-Known Member
Licensed User
Longtime User

amorosik

Expert
Licensed User
So I ve think it a lot... how to make a Remote Administration Utility as simple is possible - to understand it everyone with little knowledge and work everywhere !

Not well understood what you described
The final result allows you to connect from a PC to one or more smartphones like Team Viewer or Anydesk or similar programs do?


Magma

Well-Known Member
Licensed User
Longtime User
Not well understood what you described
The final result allows you to connect from a PC to one or more smartphones like Team Viewer or Anydesk or similar programs do?
Because i didn't describe it well :)

From a PC to PC (easily can change from pc to smartphone or reverse too) like Remote Administration of Windows... or Teamviewer, or Anydesk..
View screen and control with mouse and keyboard...

[8/7/2022] after tests made... not so easy... yes it is Easy to make Android Client-->PC Host... but reverse... need a lot of time!

Last edited:

amorosik

Expert
Licensed User
Ok now it's clear
If you say that it is easily modifiable to be used from pc to smartphone then I think it is a project of great value
I await the demo video with great interest


Magma

Well-Known Member
Licensed User
Longtime User
...Sorry for delay... here the video:


Video Demonstration is 200% faster...

coming soon with executable demo !


Magma

Well-Known Member
Licensed User
Longtime User
Edit the first post.... with the executable demo ! - read all the post please !!!!


Magma

Well-Known Member
Licensed User
Longtime User
This is old ... See the new Features here...

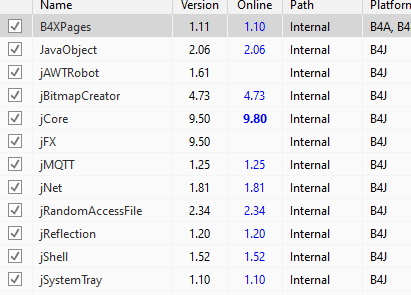

Here the libs... I am using... nothing more !

<2000 lines of code... ofcourse can be smaller... or bigger if you want to add more features...



Talking for features:
- Creating unique-id
- Auto start-up as Host (using registry of hatzisn)
- Copy Text from Client->Host and from Host->Client...
- Stretchable Window Client with Imageview...

Low Bandwidth:
- Compressing captured picture with zlib and jpeg
- 4 / 5 taking capture of a region (foreground-window working)
- 1 / 5 taking full frame capture..
- Capture screen when client read-show the previous, if not... Host wait...

Security:
- At the full-source-code giving the option use SSL security, and change to custom MQTT or a payed MQTT... with adding 4-5 lines to your code (already commented)..

Last edited:

Magma

Well-Known Member
Licensed User
Longtime User
file transfer?
File transfer is possible.. but I didn't implemented it..

For me is better to use third-party.. like Google drive


Magma

Well-Known Member
Licensed User
Longtime User
You have right.. for the moment not having...

If you check the source code you will find it easy... to add file transfer...


Xfood

Expert
Licensed User
man, I can't do any other shopping this month, but I'm sure I'll donate next month to buy the source


Magma

Well-Known Member
Licensed User
Longtime User
man, I can't do any other shopping this month, but I'm sure I'll donate next month to buy the source
I ll keep for u the price!


Magma

Well-Known Member
Licensed User
Longtime User
man, I can't do any other shopping this month, but I'm sure I'll donate next month to buy the source
Did you check the demo executable???

Here the Demo executable:
