Android Question Problem with altered B4XPreferencesDialog.b4xlib

[RB Smissaert]

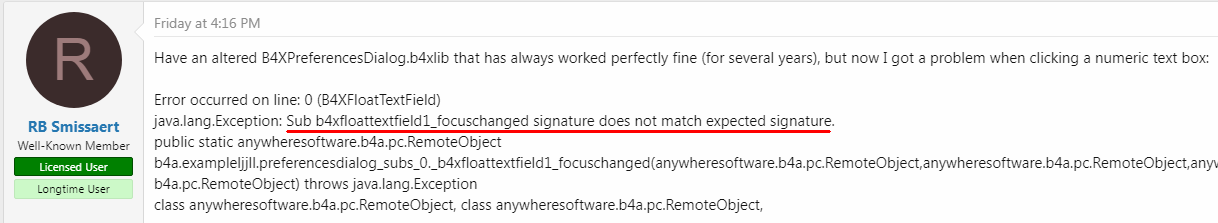

Have an altered B4XPreferencesDialog.b4xlib that has always worked perfectly fine (for several years), but now I got a problem when clicking a numeric text box:

Error occurred on line: 0 (B4XFloatTextField)
java.lang.Exception: Sub b4xfloattextfield1_focuschanged signature does not match expected signature.
public static anywheresoftware.b4a.pc.RemoteObject b4a.exampleljjll.preferencesdialog_subs_0._b4xfloattextfield1_focuschanged(anywheresoftware.b4a.pc.RemoteObject,anywheresoftware.b4a.pc.RemoteObject,anywheresoftware.b4a.pc.RemoteObject) throws java.lang.Exception
class anywheresoftware.b4a.pc.RemoteObject, class anywheresoftware.b4a.pc.RemoteObject,

I attach the file with the altered B4XPreferencesDialog.

This is how it is used in a B4X page class:

Private Sub PrefDialog_IsValid(TempData As Map) As Boolean

    Dim number As Int = TempData.GetDefault("NumberToValidate", 0)

    If number < 10 Or number > 20 Then
        prefdialog.ScrollToItemWithError("NumberToValidate")
        Return False
    End If

    Return True

End Sub

'-------------------------------------------------------------------------------------------------------------
'Note here we have vTextField from Preferences dialog library as XUIViews library was changed to supply this!!
'-------------------------------------------------------------------------------------------------------------
Private Sub PrefDialog_TextFieldClicked(vTextField As B4XView)

    'vTextField.Tag will hold an Int array:
    'at arr(0): Enums.eEditText.PreferencesDialogTextField(34)
    'at arr(1): Type tPreferenceDialogItem (iText ,iDate ,iColor, iNumber, iDecimalNumber, iMultilineText etc.)
    'Dim arr() As Int = vTextField.Tag
    'Log("PrefDialog_TextFieldClicked, vTextField.Tag: " & arr(0) & ", " & arr(1))

    '------------------------------------------------------------------------------
    'this is needed to get a new text field if the keyboard was already visible
    'note clicking in the same text field won't trigger this event, so that is good
    '------------------------------------------------------------------------------
    cMP.HideKeyboard

    'this is used to put the keyboard top or bottom, not to cover the vTextField
    '---------------------------------------------------------------------------
    Dim iYPos As Int = vTextField.Parent.Parent.Parent.Top
    Dim iScrollPosY As Int = prefdialog.CustomListView1.sv.ScrollViewOffsetY
    Dim iYPosReal As Int = iYPos - iScrollPosY

    vSelectedTextField = vTextField

    SetOptionsCustomKeyboard(vTextField)

    cMP.iFocussedEditText = Enums.eEditText.PreferencesDialogTextField
    cMP.SetKeyboard(vTextField, iYPosReal, False)

End Sub

Any assistance to solve this would be greatly appreciated.

RBS



[LucaMs]

In your custom B4XPreferencesDialog you have:

Sub b4xfloattextfield1_FocusChanged(vTextField As B4XView, bHasFocus As Boolean)

but the signature of the FocusChanged event of B4XFloatTextField is so:

Private Sub b4xfloattextfield1_FocusChanged (HasFocus As Boolean)



[RB Smissaert]

Thanks, I did have a look at and changed that, but then there were other errors.
Will look at it again and I guess that must be the trouble.

RBS



[RB Smissaert]

In your custom B4XPreferencesDialog you have:

Sub b4xfloattextfield1_FocusChanged(vTextField As B4XView, bHasFocus As Boolean)
[/CODICE]

but the signature of the FocusChanged event of B4XFloatTextField is so:

Private Sub b4xfloattextfield1_FocusChanged (HasFocus As Boolean)

How does the Private Sub PrefDialog_TextFieldClicked in the B4X page know what textfield was clicked?
Or otherwise how does Sub b4xfloattextfield1_FocusChanged(bHasFocus As Boolean) in the Preference dialog know
what text field was clicked, do pass it to the B4X page?

RBS



[RB Smissaert]

How does the Private Sub PrefDialog_TextFieldClicked in the B4X page know what textfield was clicked?
Or otherwise how does Sub b4xfloattextfield1_FocusChanged(bHasFocus As Boolean) in the Preference dialog know
what text field was clicked, do pass it to the B4X page?

RBS

Meant:
to pass it to the B4X page?

RBS



[LucaMs]

How does the Private Sub PrefDialog_TextFieldClicked in the B4X page know what textfield was clicked?

General rule:

In a View event Sub, use the Sender object (it's a B4X keyword).
For example:

If Sender Is EditText Then ...

Another example:

If Sender Is EditText Then
   Dim ET As EditText = Sender
   If ET.Tag = "NameField" Then

In your specific case I don't know, I should look into it but I'm sleepy, it's 4:30 A.M.



[RB Smissaert]

General rule:

In a View event Sub, use the Sender object (it's a B4X keyword).
For example:

If Sender Is EditText Then ...

Another example:

If Sender Is EditText Then
   Dim ET As EditText = Sender
   If ET.Tag = "NameField" Then

In your specific case I don't know, I should look into it but I'm sleepy, it's 4:30 A.M.

All solved now.
I overlooked the fact that the XUI Views.b4xlib was changed as well, although I did put that in the posted B4X code.
It was messed up when I upgraded to B4A 13.5 some weeks ago, altering XUI Views.b4xlib.

This was the change in the B4XFloatTextField.bas in the XUI Views.b4xlib:

'This was altered to supply the mTextField to B4XPreferencesDialog.b4xlib
'------------------------------------------------------------------------
Private Sub tf_FocusChanged (HasFocus As Boolean)
    Focused = HasFocus
    UpdateLabel(mTextField.Text, True)
    If xui.SubExists(mCallBack, mEventName & "_FocusChanged", 1) Then
        If LastSwitchTextFieldTime + 100 < DateTime.Now Then
            CallSubDelayed3(mCallBack, mEventName & "_FocusChanged", mTextField, Focused)
        End If
    End If
End Sub

'Private Sub tf_FocusChanged (HasFocus As Boolean)
    'Focused = HasFocus
    'UpdateLabel(mTextField.Text, True)
    'If xui.SubExists(mCallBack, mEventName & "_FocusChanged", 1) Then
        'If LastSwitchTextFieldTime + 100 < DateTime.Now Then
            'CallSubDelayed2(mCallBack, mEventName & "_FocusChanged", Focused)
        'End If
    'End If
'End Sub

Then this code in the B4XPreferencesDialog.b4xlib will work all fine:

'At the top:
#Event: FocusChanged(vTextField As B4XView, bHasFocus As Boolean)

Sub b4xfloattextfield1_FocusChanged(vTextField As B4XView, bHasFocus As Boolean)

    If bHasFocus Then
        If mEventName <> "" And xui.SubExists(mCallback, mEventName  & "_TextFieldClicked", 1) Then
            'vTextField.Tag = "45"
            CallSub2(mCallback, mEventName & "_TextFieldClicked", vTextField)
        End If
    End If

End Sub

Then in the B4X Page we have this code (posted already) that works now fine;

'-------------------------------------------------------------------------------------------------------------
'Note here we have vTextField from Preferences dialog library as XUIViews library was changed to supply this!!
'-------------------------------------------------------------------------------------------------------------
Private Sub PrefDialog_TextFieldClicked(vTextField As B4XView)

    'vTextField.Tag will hold an Int array:
    'at arr(0): Enums.eEditText.PreferencesDialogTextField(34)
    'at arr(1): Type tPreferenceDialogItem (iText ,iDate ,iColor, iNumber, iDecimalNumber, iMultilineText etc.)
    'Dim arr() As Int = vTextField.Tag
    'Log("PrefDialog_TextFieldClicked, vTextField.Tag: " & arr(0) & ", " & arr(1))

    '------------------------------------------------------------------------------
    'this is needed to get a new text field if the keyboard was already visible
    'note clicking in the same text field won't trigger this event, so that is good
    '------------------------------------------------------------------------------
    cMP.HideKeyboard

    'this is used to put the keyboard top or bottom, not to cover the vTextField
    '---------------------------------------------------------------------------
    Dim iYPos As Int = vTextField.Parent.Parent.Parent.Top
    Dim iScrollPosY As Int = prefdialog.CustomListView1.sv.ScrollViewOffsetY
    Dim iYPosReal As Int = iYPos - iScrollPosY

    vSelectedTextField = vTextField

    SetOptionsCustomKeyboard(vTextField)

    cMP.iFocussedEditText = Enums.eEditText.PreferencesDialogTextField
    cMP.SetKeyboard(vTextField, iYPosReal, False)

End Sub

My mistake was not looking at the comment at the top of Private Sub PrefDialog_TextFieldClicked!

RBS



[LucaMs]

My mistake was

Sub b4xfloattextfield1_FocusChanged(vTextField As B4XView, bHasFocus As Boolean)

The above is a typical AI mistake.



[RB Smissaert]

The above is a typical AI mistake.

What is wrong with it?
BTW I don't use AI at all.

RBS



[LucaMs]

What is wrong with it?
BTW I don't use AI at all.

RBS

The signature, as we have already said above.



[RB Smissaert]

The signature, as we have already said above.

I can see it is an unusual signature, but it works all fine in this case. Using Sender seems a bit more complex to me.

RBS



[LucaMs]

I can see it is an unusual signature, but it works all fine in this case. Using Sender seems a bit more complex to me.

RBS

I think we should clarify this.

The B4XFloatTextFields' FocusChanged event is this:

Private Sub B4XFloatTextField1_FocusChanged (HasFocus As Boolean)

NO OTHER.

If you modified the B4XFloatTextField source code, that's fine, but you can't say that this:

Sub b4xfloattextfield1_FocusChanged(vTextField As B4XView, bHasFocus As Boolean)

could work because it's impossible, and in fact you got this error:

Error occurred on line: 0 (B4XFloatTextField)
java.lang.Exception: Sub b4xfloattextfield1_focuschanged signature does not match expected signature.



[RB Smissaert]

Not sure I get you here.
I have no error and all works perfectly fine. Did you see that the XUI code was slightly changed?

RBS



[LucaMs]

Not sure I get you here.

It's your first post!



[RB Smissaert]

View attachment 172937

It's your first post!

Did you see the post where I explained how it was solved?

RBS
