B4A Library SD: ViewAnimation

Discussion in 'Additional libraries, classes and official updates' started by Star-Dust, Apr 14, 2018.

  1. Star-Dust

    Star-Dust Expert Licensed User

    This library is entirely made of b4a.

    This class receives the view and an image as parameters.

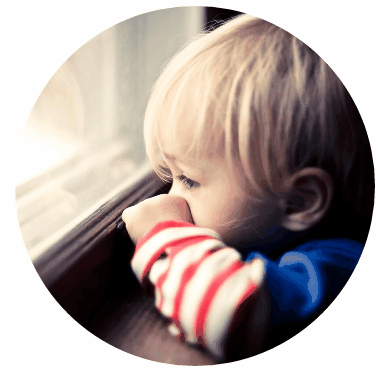

    Once the class has been initialized, the image with the circular shape will be displayed in the background.

    With the "Progress" methods add a circular progress bar of different graphics to the survey as you can see in the attached image

    SD_ViewAnimation

    Author: Star-Dust
    Version: 0.16
    • ProgressCircle
      • Functions:
        • Class_Globals As String
        • Initialize (V As View, Btmp As Bitmap) As String
          Initializes the object. You can add parameters to this method if needed.
        • IsInitialized As Boolean
          Verificy if initialized
        • ProgressAppears (PerCent As Int) As String
        • ProgressArc (PerCent As Int, Color As Int, ArcPen As Int) As String
          'ArPen - thickness of the pen that marks the arc
        • ProgressBall (PerCent As Int, Color As Int) As String
        • ProgressBall2 (PerCent As Int, Color As Int) As String
        • ProgressFill (PerCent As Int, Color As Int) As String
        • ProgressStar (PerCent As Int, PerCent As Int, StarSize As Int) As String
          'StarSize - Dip Star size
        • ProgressSwipe (PerCent As Int, Color As Int) As String
        • ProgressVeil (PerCent As Int, Color As Int) As String
        • OnlyRounded
          Only rounded, it is used after using an animation to eliminate any chosen Circular Bar

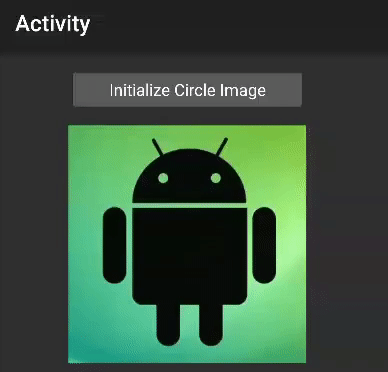

    video3.gif ezgif.com-optimize.gif


    Attached Files:

    Last edited: Apr 19, 2018
    Peter Simpson, GMan, T201016 and 14 others like this.
  2. Star-Dust

    Star-Dust Expert Licensed User

    Example:
    Code:
    Panel1.SetBackgroundImage(LoadBitmap(File.DirAssets,"android.png"))

    ProgBar.Initialize(Panel1)
    For i=0 To 100
          ProgBar.ProgressVeil(i,
    Colors.White)
          Sleep(
    50)
    Next
    With time limit
    Code:
    Sub Button1_Click
      ProgBar.Initialize(Panel1)
      Execute(
    1000)
    end Sub

    Sub Execute(TimeTotal as int)

    For i=0 To 50
          ProgBar.ProgressArc(i,
    Colors.White, 6dip)
          Sleep(TimeTotal/
    50)

    Next
    End Sub
    I also wanted to publish the source code, but since it is not optimized because I did it quickly because I would have certainly received many pungent comments on the source and questions about why certain choices .... I prefer not, arrange :p:p

    Last edited: Apr 16, 2018
  3. LucaMs

    LucaMs Expert Licensed User

    I remember that I wrote that it would be nice if the editor automatically inserted spaces between words, operators, etc.; spaces that you are reluctant to insert :D
    (I wrote a "Wish" for this, time ago).


    1) Currently I could not try your view in one of my test project because it is not listed in the Designer (I tried this but now it is not enough; I will try again soon);

    2) there are not properties like: stroke width, star bitmap and star size; this could be ok but, starting your example on my tablet, it looks so:

    As you can see, the star is almost invisible.


    3) I don't understand well the last example you posted, "time limit"; however what I would need is the ability to set the time to complete the entire circle, ie I can decide that the circle is completed for example in 10 seconds.

    Other properties/methods could be the color of the filled circle and remove (clear) the filled circle.

  4. Star-Dust

    Star-Dust Expert Licensed User

    1. Don't undestand
    2. Chance device
    3. The third example is to make the cycle run over time as you requested, it is just what you asked
    4. Be satisfied with what I have created as an alternative you can create one as you like :p

  5. LucaMs

    LucaMs Expert Licensed User

    1) non vedo la tua view nell'elenco delle custom view (sorry for the italian text; the "question" is in Englih in my previous post).
    Ho provato nuovamente usando quel "trucco" consigliato da Erel ma non funziona lo stesso (I tried again, using the Erel's workaround but without success).

    2) Change device? This answer is funny enough but I think you should add a property to set the bitmap (star) size and the stroke width OR you should set them as percentage of the "main bitmap".

    3) I have to try it again (I closed the project to test my own); in your example you do not complete the circle.

  6. Star-Dust

    Star-Dust Expert Licensed User

    1. It is not a customview
    2. Patience :p
    3. Patience :p

  7. LucaMs

    LucaMs Expert Licensed User

    I saw, now:
    Code:
    Sub ButtonMadeCircle_Click
        ProgBar.Initialize(Panel1,
    LoadBitmap(File.DirAssets,"android.png"))
    End Sub
    So, another "need": Bitmap property, otherwise you have to create a "non custom view" CircleProgressBar for each bitmap you need.

    (BTW, I think you should change its name to SD ProgressCircle; it is not a "bar").

  8. Star-Dust

    Star-Dust Expert Licensed User

    You are wrong I do not create any other view but I use what you pass as a parameter and I attribute it as a background the image transformed into a circle.
    The class name is PeogressCircle. You're confusing the class with the library.

    I think you did not understand much of this library.
    This is not a classic circular Progress bar, this class set an image in the background to any view and makes it circular. This is the main objective. In addition you can make an animation similar to a Progress bar or a star that goes around the background image of the point but only similar to a progressbar, but the principal goal of creating an animation to a background image rendered round
    If you take the time to examine the class carefully, you will find the answers to your questions alone.

    Please refrain from unnecessary interior comments you are only filling the thread for non-constructive comments.
    Subsequently if the library is not to your liking, I'm sure you'll find others on the forum :)

    Last edited: Apr 15, 2018
  9. LucaMs

    LucaMs Expert Licensed User

    Who? Me? Never :p

    Mine are useful "comments": I suggested to add methods and properties.

    You are too nervous and susceptible; as I wrote, mine are not negative comments but suggestions.

  10. Star-Dust

    Star-Dust Expert Licensed User

    I am neither nervous nor susceptible, but the observation you made by filling this thread would surely have been avoided if you had looked closely at this library.

    They seem only useless and pretentious criticism, I asked myself if you were nervous given the unnecessarily critical remarks you made.
    Remember that we are not on chit chat .. we must not fill the thread of chatter.

    Re-read everything you have written please.
    read my answers
    In which of my answers did I convey the idea of looking for suggestions to change the class?

    Last edited: Apr 15, 2018
  11. LucaMs

    LucaMs Expert Licensed User

    No other comments; you should read all again.

  12. Star-Dust

    Star-Dust Expert Licensed User

    Other Example:
    Code:
    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.
        Dim ProgBar As ProgressCircle


    Private Panel1 As Panel

    Private Panel2 As Panel

    Private Panel3 As Panel

    Private Panel4 As Panel
    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        Activity.LoadLayout("Lauout1")

        ProgBar.Initialize(Panel1)
        ProgBar.ProgressArc(
    100,Colors.White,8dip)
        ProgBar.Initialize(Panel2)
        ProgBar.ProgressArc(
    100,Colors.White,8dip)
        ProgBar.Initialize(Panel3)
        ProgBar.ProgressArc(
    100,Colors.White,8dip)
        ProgBar.Initialize(Panel4)
        ProgBar.ProgressArc(
    100,Colors.White,8dip)
    End Sub

    Sub Button1_Click

    Dim Radius As Int = Panel1.Width/2

    Dim CoX As Int

    Dim CoY As Int


    For pos=0 To 100
            CoX = Radius*(
    1-Cos((2*cPI)*(pos/100)))
            CoY = Radius*(
    1-Sin((2*cPI)*(pos/100)))
            Panel1.SetLayoutAnimated(
    50,CoX,CoY,Panel1.Width,Panel1.Height)

            CoX = Radius*(
    1-Cos((2*cPI)*((pos+25)/100)))
            CoY = Radius*(
    1-Sin((2*cPI)*((pos+25)/100)))
            Panel2.SetLayoutAnimated(
    50,CoX,CoY,Panel2.Width,Panel2.Height)

            CoX = Radius*(
    1-Cos((2*cPI)*((pos+50)/100)))
            CoY = Radius*(
    1-Sin((2*cPI)*((pos+50)/100)))
            Panel3.SetLayoutAnimated(
    50,CoX,CoY,Panel3.Width,Panel3.Height)

            CoX = Radius*(
    1-Cos((2*cPI)*((pos+75)/100)))
            CoY = Radius*(
    1-Sin((2*cPI)*((pos+75)/100)))
            Panel4.SetLayoutAnimated(
    50,CoX,CoY,Panel4.Width,Panel4.Height)
            Sleep(
    50)

    Next
    End Sub
    Results
    Other use of the class


    Attached Files:

    Last edited: Apr 16, 2018
  13. moster67

    moster67 Expert Licensed User

    This is really nice.
    Great work!

    Star-Dust likes this.
  14. Star-Dust

    Star-Dust Expert Licensed User

    After a careful friendly smiley-2.png discussion with my friend @LucaMs,
    he convinced me to change the library name and add some of the proposed changes.

    Now it will not be necessary to pass the bitmap as a parameter but it will absorb it directly from the Background set in the View that you want to animate (thank @Erel and @DonManfred for its help in this)

    I have updated the library to version 0.13

    P.S.
    With this change I hope to have closed with this library

  15. Claudio Oliveira

    Claudio Oliveira Active Member Licensed User

    :D:D:D

    Great work! Well done!

  16. Star-Dust

    Star-Dust Expert Licensed User

    Update release 0.15

    New method ProgressAppears
    Code:
    ProgBar.ProgressAppears(PerCent as int)

    Last edited: Apr 18, 2018
  17. Star-Dust

    Star-Dust Expert Licensed User

    This is another three examples of the methods of my library.

    With this I closed because I was bored, I did not even want to create it

    Code:
    Panel1.SetBackgroundImage(LoadBitmap(File.DirAssets,"android.png"))
    For i=0 To 100
        ProgBar.ProgressFiil(i,
    Colors.White)

    ' ProgBar.ProgressFiil(i,Colors.ARGB(150,255,255,255))
        Sleep(50)
    Next

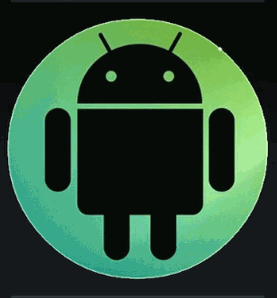

    video8.gif video7.gif

    Last edited: Apr 18, 2018
    LucaMs and Claudio Oliveira like this.
  18. Star-Dust

    Star-Dust Expert Licensed User

    Code:
    ProgBar.ProgressBall(PerCent as int, Color as int)
    Code:
    ProgBar.ProgressBall2(PerCent as int, Color as int)

  19. Star-Dust

    Star-Dust Expert Licensed User

    Update 0.16

    ProgressSwipe (PerCent As Int, Color As Int) As String

    [​IMG]

    Last edited: Apr 19, 2018
