Android Question SuperToolTips

ALBRECHT

Active Member
Licensed User
Hello,

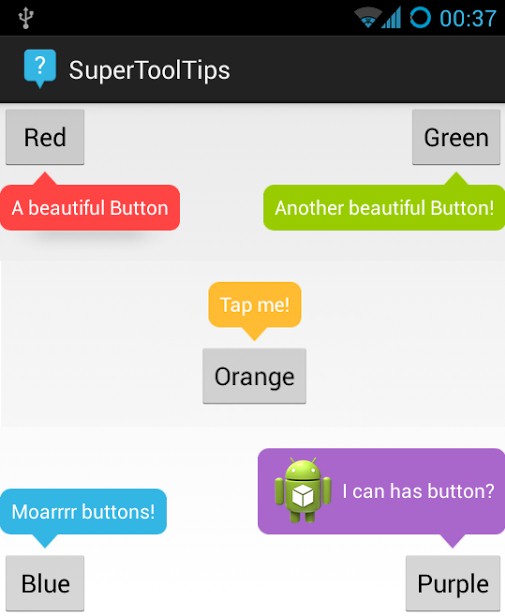

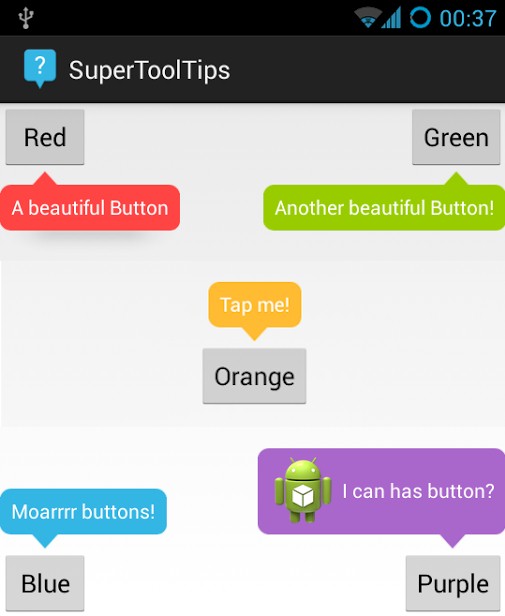

Could you tell me which way to use that kind of toolTips :

seen on: https://stackoverflow.com/questions/21031488/android-popupwindow-with-tooltip-arrow



Regards
Michel


LucaMs

Expert
Licensed User
Longtime User
Doing it yourself should be easy, but... when to show a tooltip on Android? I don't think you can mouse over Views 😊; using "long tap"?

Upvote 0

ALBRECHT

Active Member
Licensed User
Yess LucaMs, the need is to show a SuperToolTips automaticaly after a waiting time from the user or on demo mode for some Helping. I think i will try to get started with my own library. what i have seen until now, does not provide the same rendering

Upvote 0

LucaMs

Expert
Licensed User
Longtime User
Yess LucaMs, the need is to show a SuperToolTips automaticaly after a waiting time from the user or on demo mode for some Helping. I think i will try to get started with my own library. what i have seen until now, does not provide the same rendering
I don't know how they were made, I didn't look at the source, but I think that you can probably use the "balloons" of this chat:
https://www.b4x.com/android/forum/threads/b4x-cross-platform-chat-layout-example.112649/post-702406

Upvote 0

Omar Parra A.

Expert
Licensed User
Longtime User
I don't know how they were made, I didn't look at the source, but I think that you can probably use the "balloons" of this chat:
https://www.b4x.com/android/forum/threads/b4x-cross-platform-chat-layout-example.112649/post-702406

Bubble Tips:


other


Upvote 0

Omar Parra A.

Expert
Licensed User
Longtime User

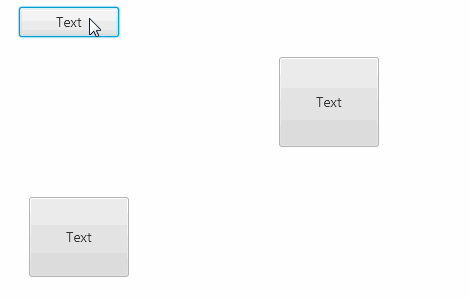

We adapt this to B4X for bubble tips:


Upvote 0

ALBRECHT

Active Member
Licensed User
ok, thanks for your advices for mixing with B4XCanvas

Upvote 0

Omar Parra A.

Expert
Licensed User
Longtime User
Yes, B4X (B4A, B4J, B4I)

KISS = "keep it simple, stupid!"



tips:

B4X:
Sub TextBubble(inPanel As B4XView, inTexts() As String, inFontSize As Float)


    For Each v As B4XView In inPanel.GetAllViewsRecursive
        v.RemoveViewFromParent
    Next

    If inTexts.Length = 0 Then Return

    Dim Border As Float  = 0dip 'StrokeWidth
    Dim Edge As Float = 15dip 'Distance

    Dim Canvas1 As B4XCanvas
    Canvas1.Initialize(inPanel)

    ' ***********************************

    #region measure text size

    Dim width, height As Float
    width = 0
    height = 0

    Dim FontHeight As Float
    FontHeight = 1dip

    For Each t As String In inTexts
        FontHeight = Max(FontHeight , Canvas1.MeasureText(t, XUI.CreateDefaultFont(DipToCurrent(inFontSize))).Height + 1dip) 'max. text row height
    Next

    For Each t As String In inTexts
        width = Max(width , Canvas1.MeasureText(t, XUI.CreateDefaultFont(DipToCurrent(inFontSize))).Width) 'maximal with
        height = height + FontHeight
    Next

    #end region

    ' ***********************************

    #region bubble

    'make it bigger for the border around

    Dim width2, height2 As Float

    width2 = width + Edge * 2.0
    height2 = height + Edge * 2.0

    Dim Rect1 As B4XRect
    Rect1.Initialize(inPanel.Width / 2.0 - width2 / 2.0  , inPanel.Height / 2.0  - height2 / 2.0,  inPanel.Width / 2.0 + width2 / 2.0, inPanel.Height / 2.0 + height2 / 2.0)

    Dim Path1 As B4XPath
    Path1.Initialize(Rect1.Left + Edge, Rect1.Top)
    Path1.LineTo(Rect1.Right ,Rect1.Top)
    Path1.LineTo(Rect1.Right ,Rect1.Bottom)

    Path1.LineTo(Rect1.Right - Rect1.Width * 0.5,  Rect1.Bottom)
    Path1.LineTo(Rect1.Right - Rect1.Width * 0.5,  Rect1.Bottom + Edge * 3.0) 'peak
    Path1.LineTo(Rect1.Right - Rect1.Width * 0.75, Rect1.Bottom)

    Path1.LineTo(Rect1.Left ,Rect1.Bottom)
    Path1.LineTo(Rect1.Left ,Rect1.Top + Edge)

    'math corner left, top
    Dim a As Float,x As Float,y As Float

    For a = 0.0 To 90.0 Step 10.0
        x = -CosD(a) * Edge
        y = -SinD(a) * Edge
        Path1.LineTo(Rect1.Left + Edge + x ,Rect1.Top + Edge + y)
    Next

    Canvas1.DrawPath(Path1, XUI.Color_RGB(0,128,0), True, 1)
    Canvas1.DrawPath(Path1, XUI.Color_White, False, Border)

    #end region

    ' ***********************************

    #region draw text

    Dim Rect1 As B4XRect

    Rect1.Initialize(inPanel.Width / 2.0 -width / 2.0, inPanel.Height / 2.0 - height / 2.0,  inPanel.Width / 2.0 + width / 2.0, inPanel.Height / 2.0 + height / 2.0)

    'test rect
'    Canvas1.DrawRect( Rect1, XUI.Color_Black, False, 1dip) 'check size

    Dim y As Float = Rect1.Top
    Dim h As Float = 0

    For Each t As String In inTexts
        h = FontHeight
        y = y + h
        Canvas1.DrawText(t, Rect1.Left, y - FontHeight * 0.1, XUI.CreateDefaultFont(inFontSize), XUI.Color_Yellow, "LEFT")
    Next

    Canvas1.Invalidate


    #end region

End Sub

Upvote 0

Omar Parra A.

Expert
Licensed User
Longtime User
What is KISS or "keep it simple, stupid!"?

Principle that states that most systems work best if they are designed with simplicity in mind and avoid unnecessary complexity.

Upvote 0

LucaMs

Expert
Licensed User
Longtime User
What is KISS or "keep it simple, stupid!"?

Principle that states that most systems work best if they are designed with simplicity in mind and avoid unnecessary complexity.
Simple to say (write), hard to do!
